Installation Procedure

Install the power brake booster vacuum hose assembly to the vehicle.
Courtesy of GENERAL MOTORS COMPANY

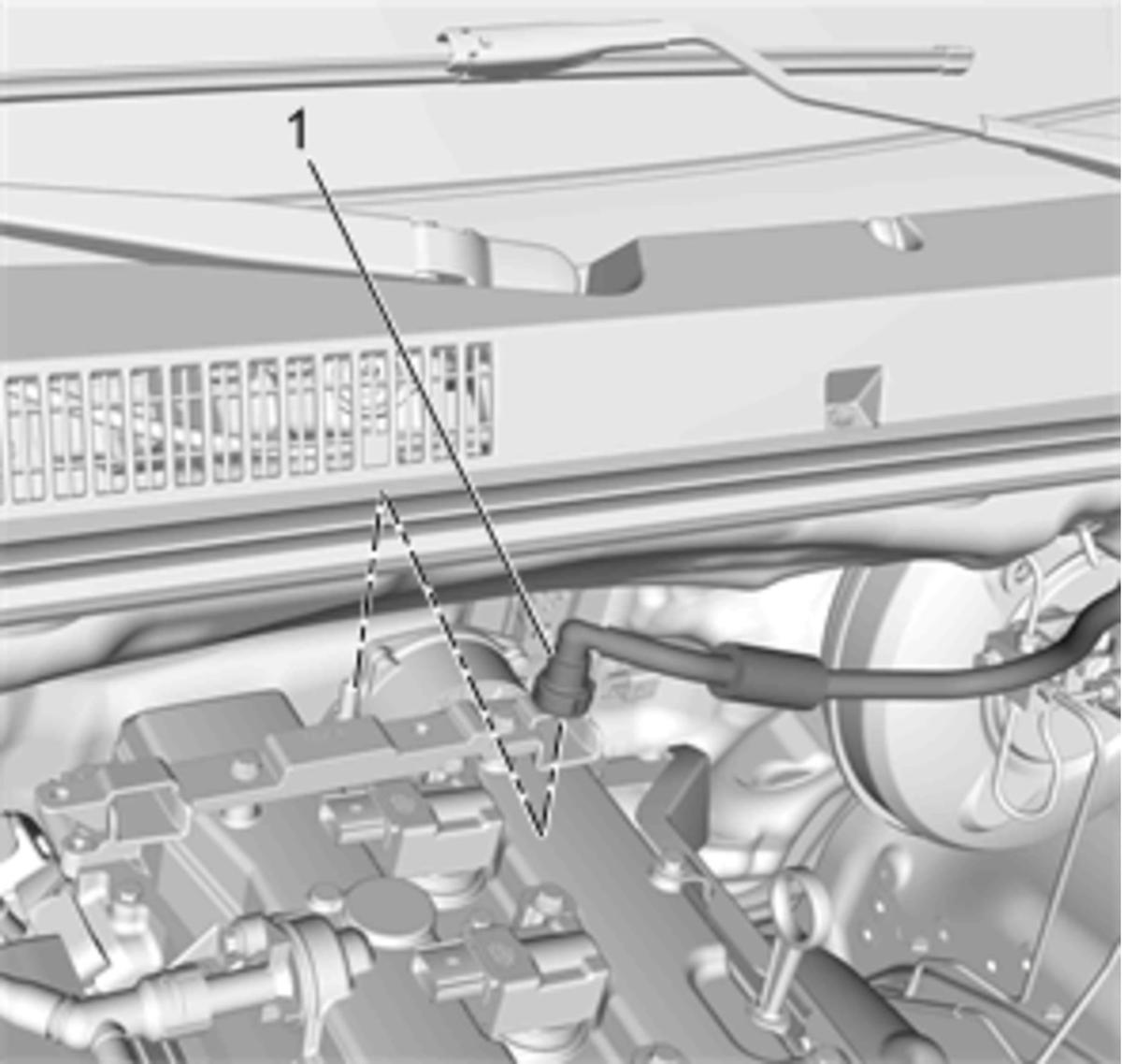

Install the power brake booster vacuum hose quick connect (1) to the vacuum pump.
Courtesy of GENERAL MOTORS COMPANY

NOTE:
A small amount of denatured alcohol may be used as a lubricant for assembly.

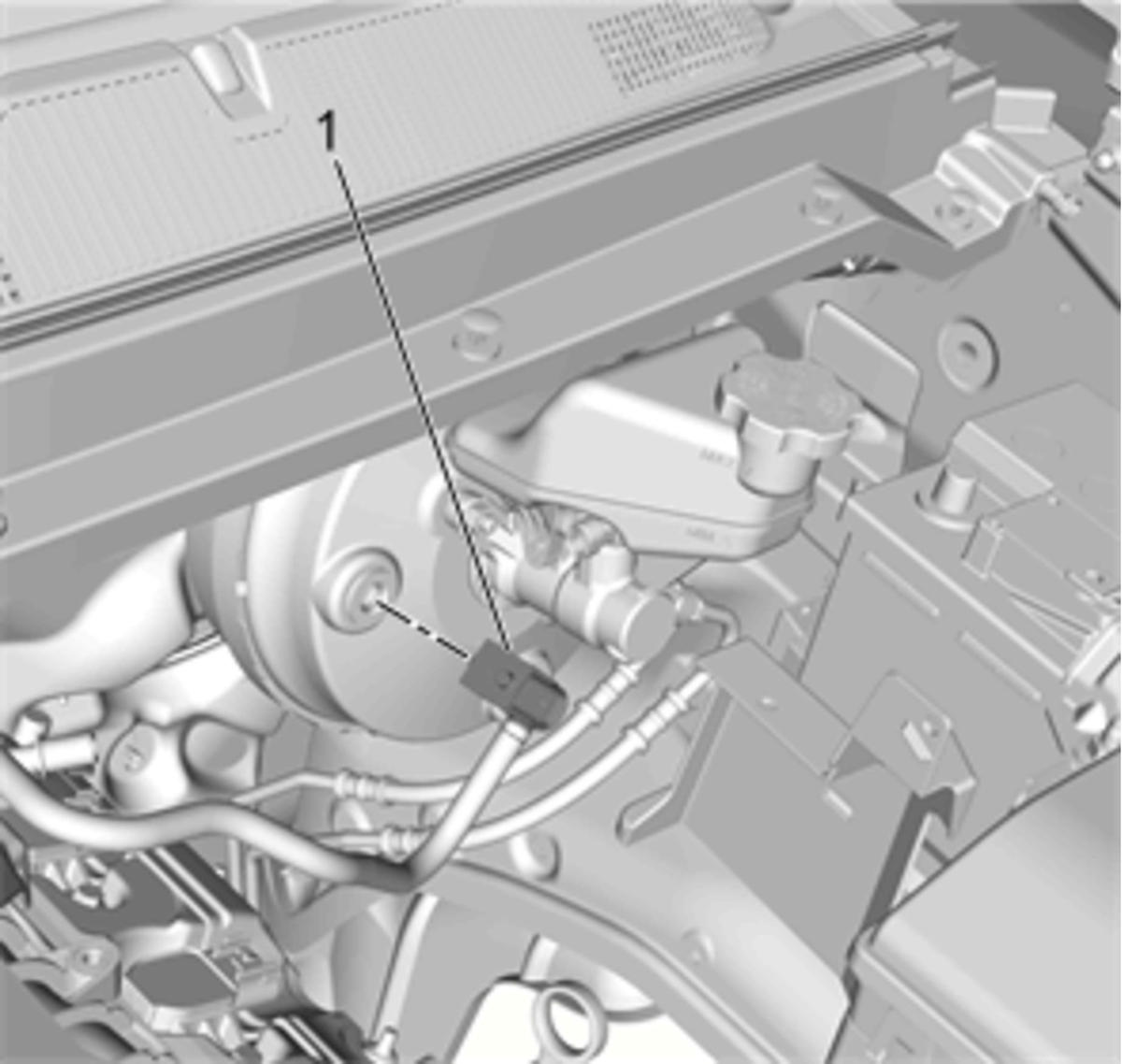

Install the power brake booster vacuum sensor (1) to the power brake booster.
Connect the power brake booster vacuum sensor electrical connector.
Install the intake manifold cover. Intake Manifold Cover Replacement
