Installation Procedure

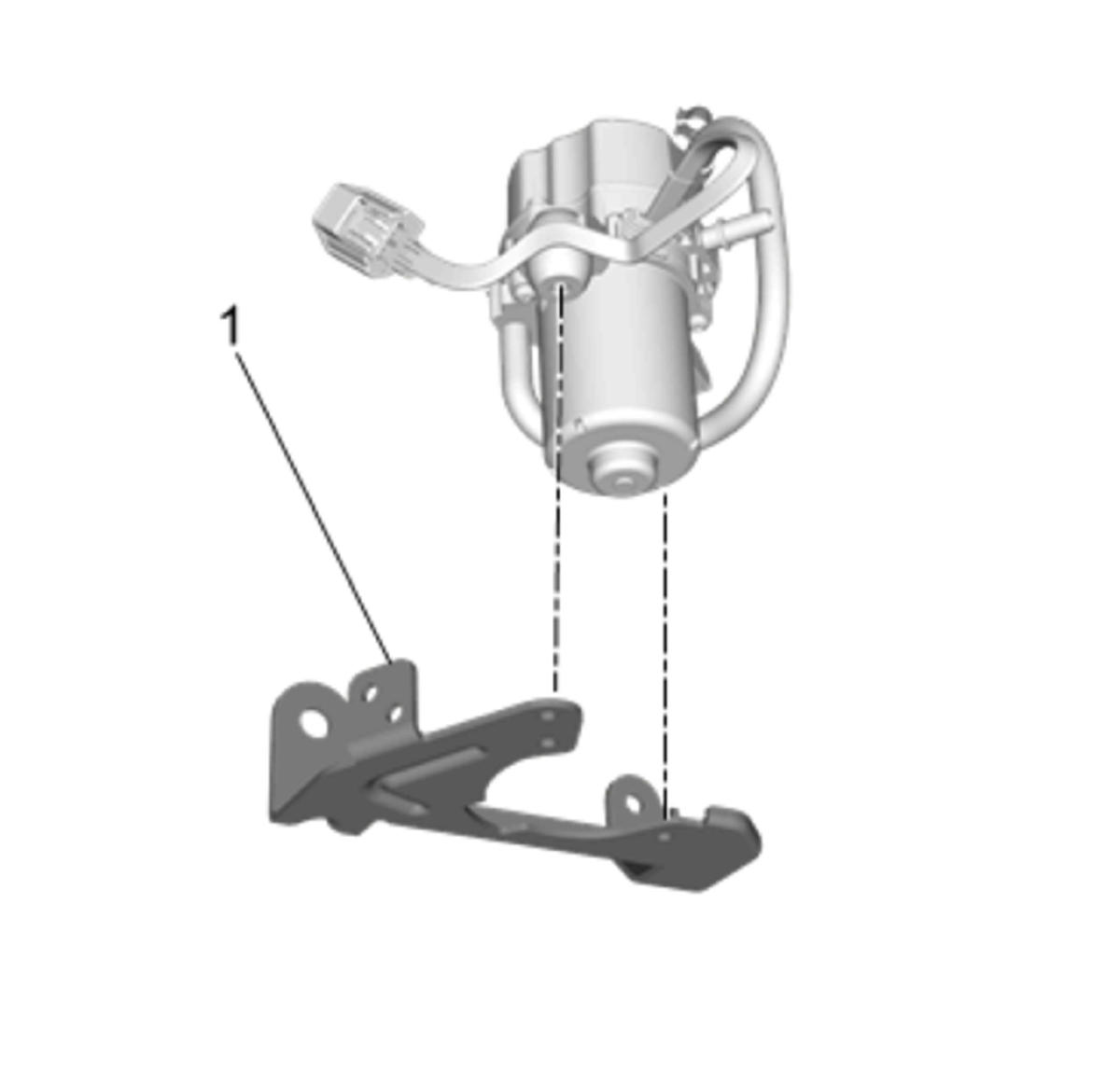

  1. GM4565768Courtesy of GENERAL MOTORS COMPANY

    Power Brake Booster Pump Bracket (1) - Install - Power Brake Booster Pump Bracket Replacement

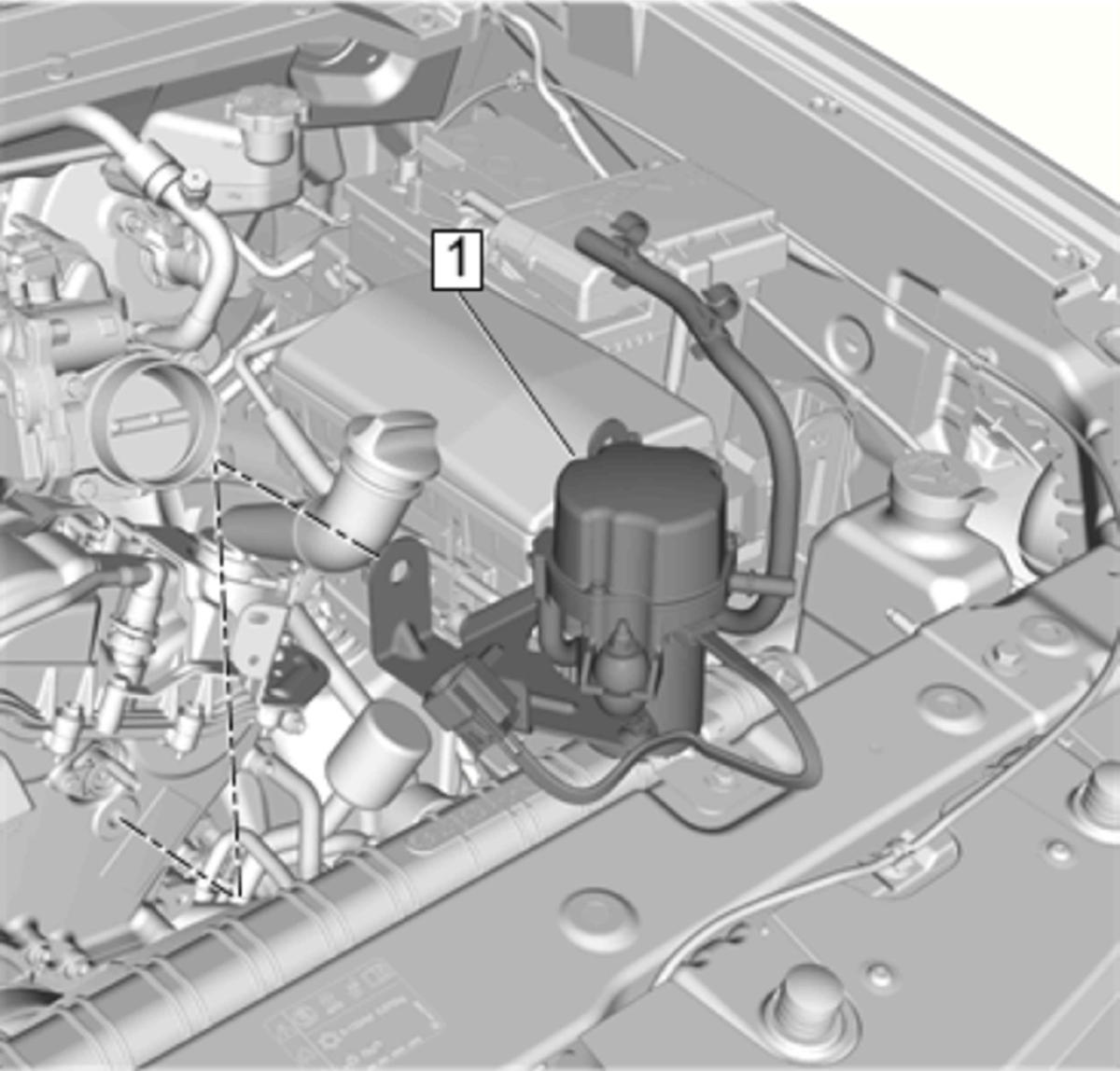

  2. GM4565745Courtesy of GENERAL MOTORS COMPANY

    Power Brake Booster Pump (1) - Install

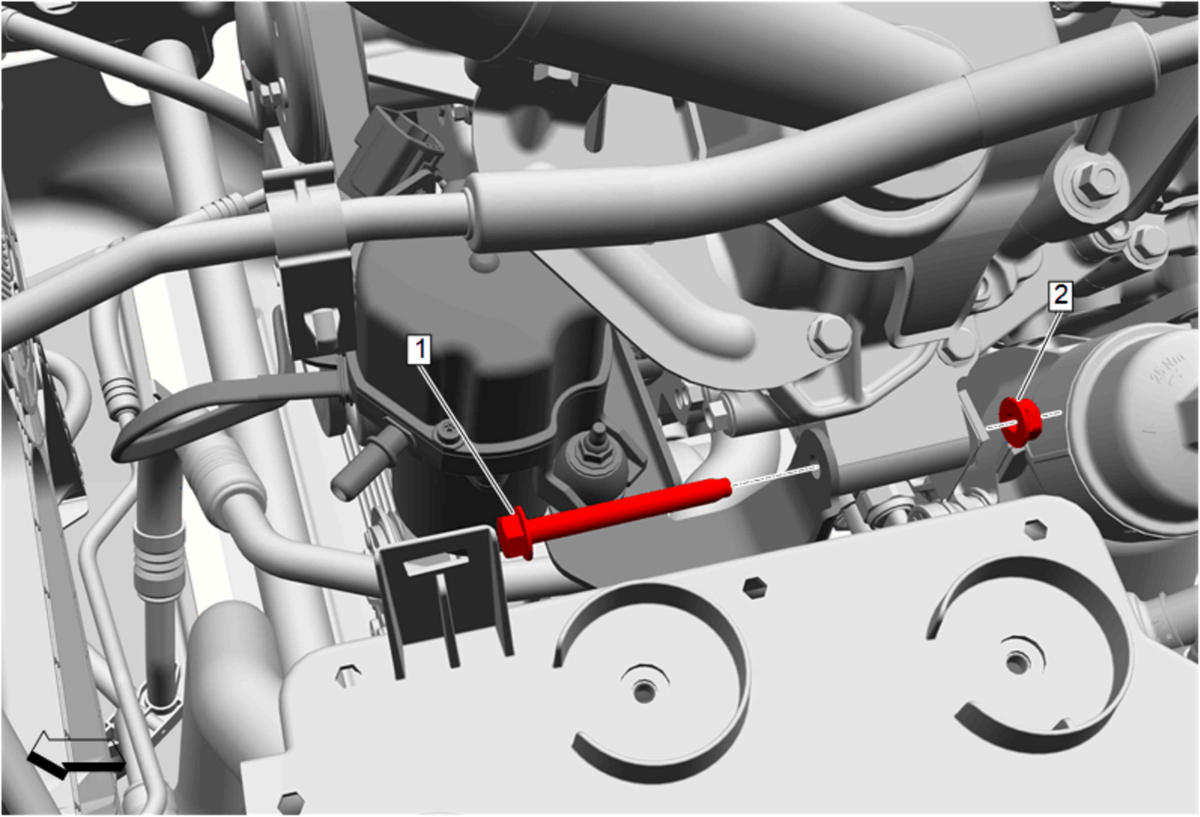

  3. GM5190788Courtesy of GENERAL MOTORS COMPANY
    CAUTION:

    Refer to Fastener Caution .

    Install the power brake booster pump M8 bolt (1) and the power brake booster pump bracket nut (2) and tighten the power brake booster pump M8 bolt (1) to 22 N.m (16 lb ft)

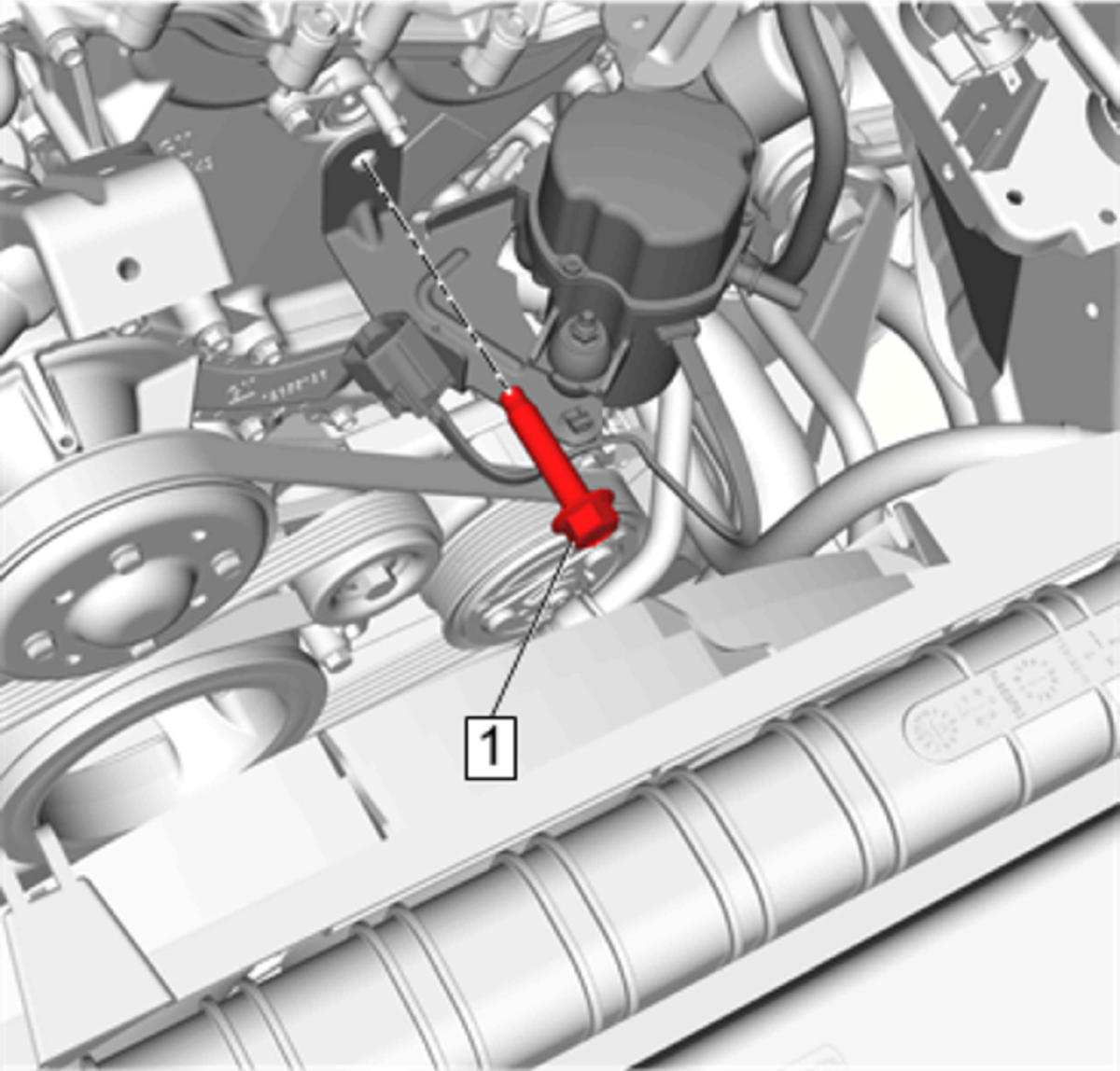

  4. GM4565739Courtesy of GENERAL MOTORS COMPANY

    Power Brake Booster Pump M12 Bolt (1) - Install and tighten 70 N.m (52 lb ft)

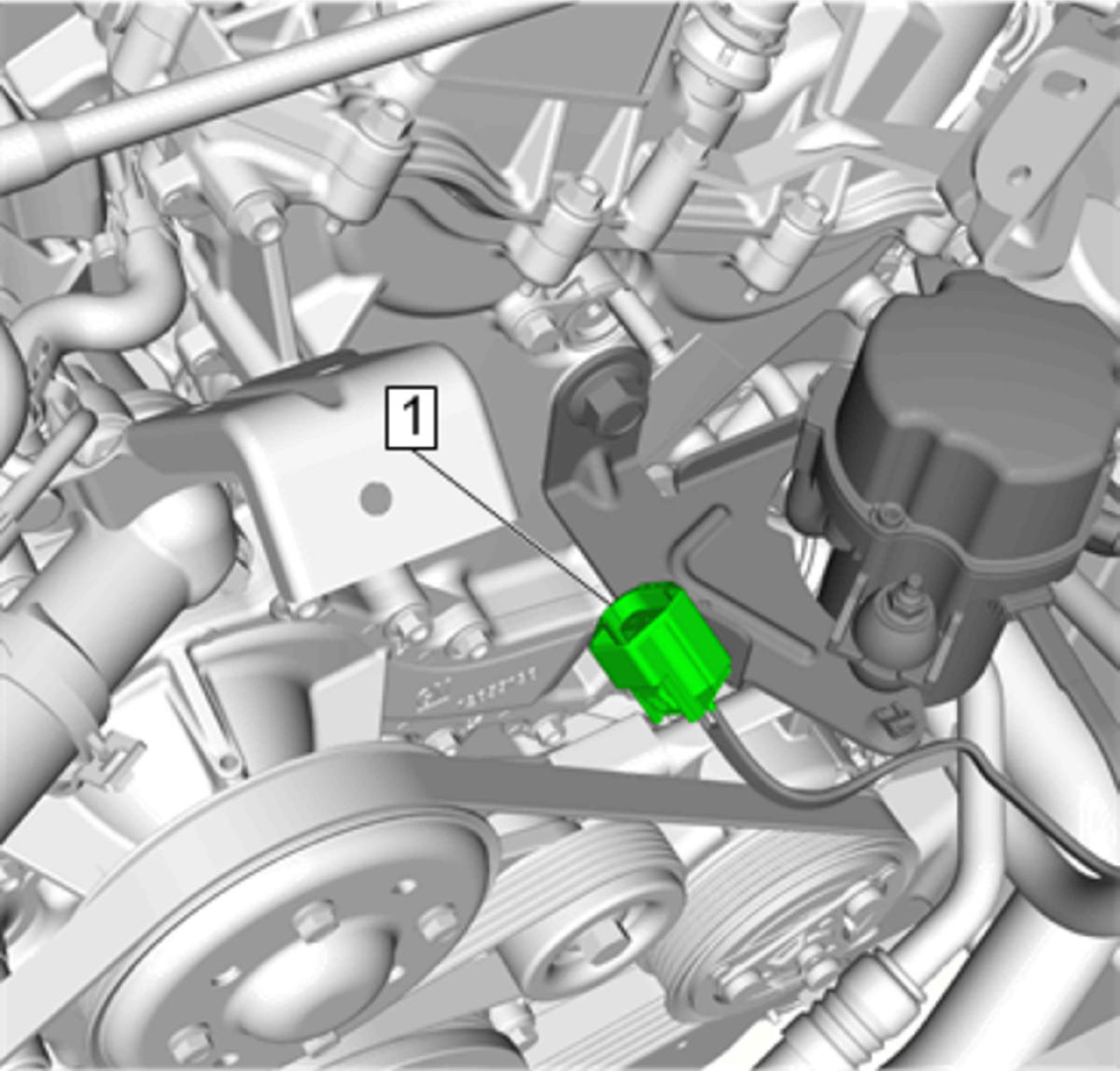

  5. GM4565738Courtesy of GENERAL MOTORS COMPANY

    Electrical Connector (1) - Connect

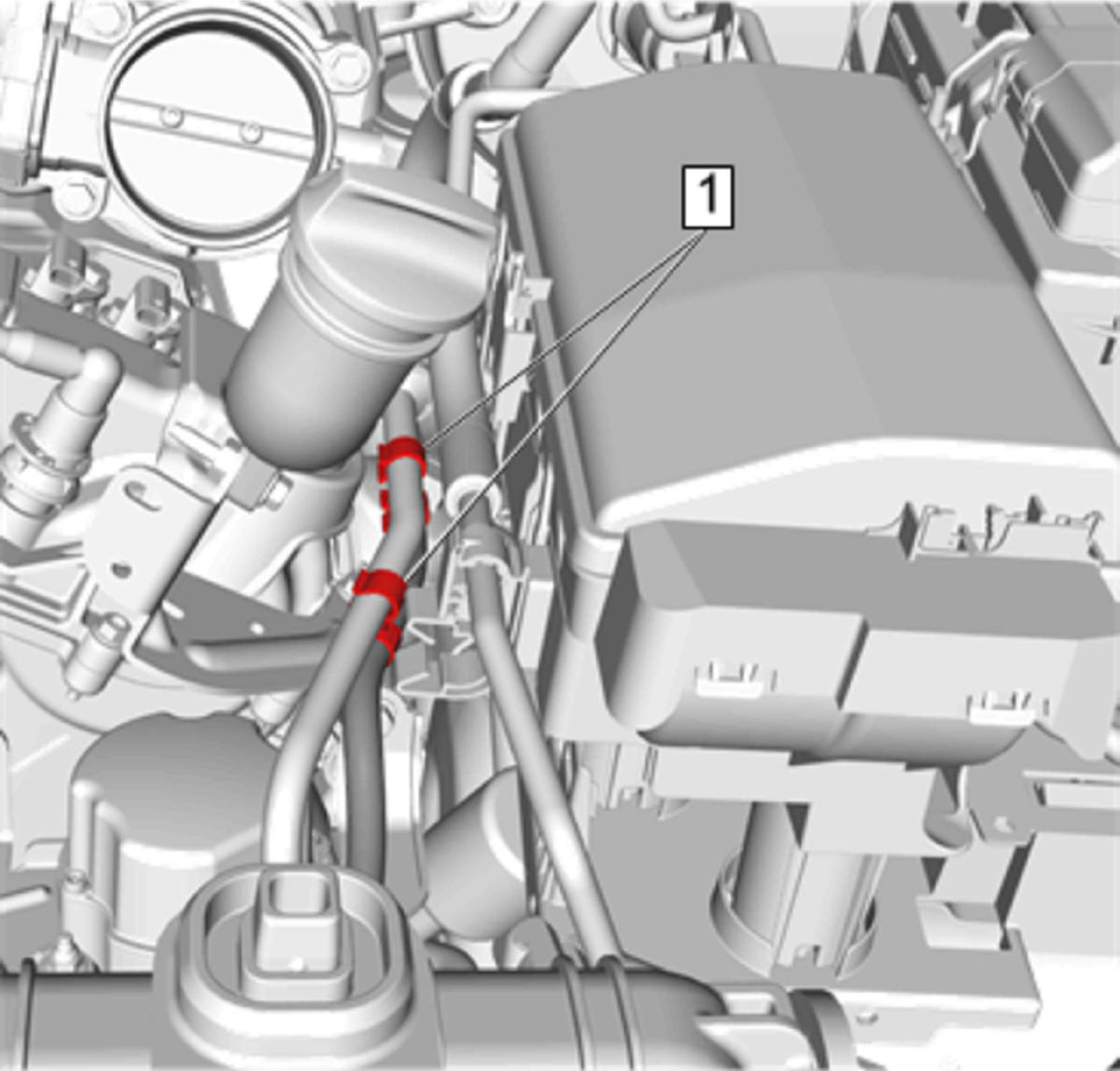

  6. GM4565735Courtesy of GENERAL MOTORS COMPANY

    Clip (1) @ Power Brake Booster Vacuum Hose - Secure [2x]

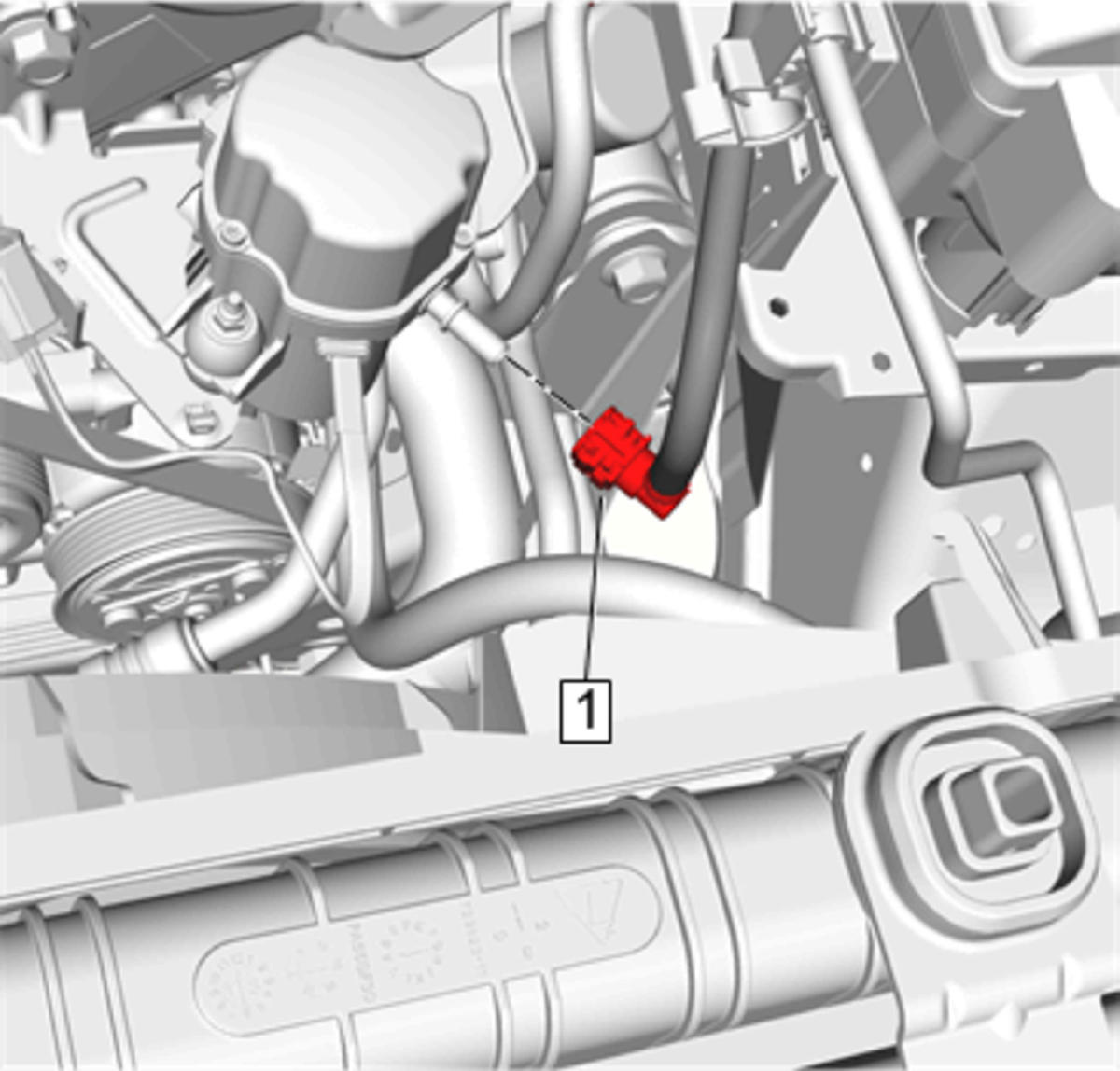

  7. GM4565723Courtesy of GENERAL MOTORS COMPANY

    Power Brake Booster Vacuum Hose Quick Connect Fitting (1) - Connect

  8. GM4565128Courtesy of GENERAL MOTORS COMPANY

    Air Cleaner Outlet Duct (1) - Install - Air Cleaner Outlet Duct Replacement
