Installation Procedure

Courtesy of GENERAL MOTORS COMPANY

Power Brake Booster Pump Bracket (1) - Install

Courtesy of GENERAL MOTORS COMPANY

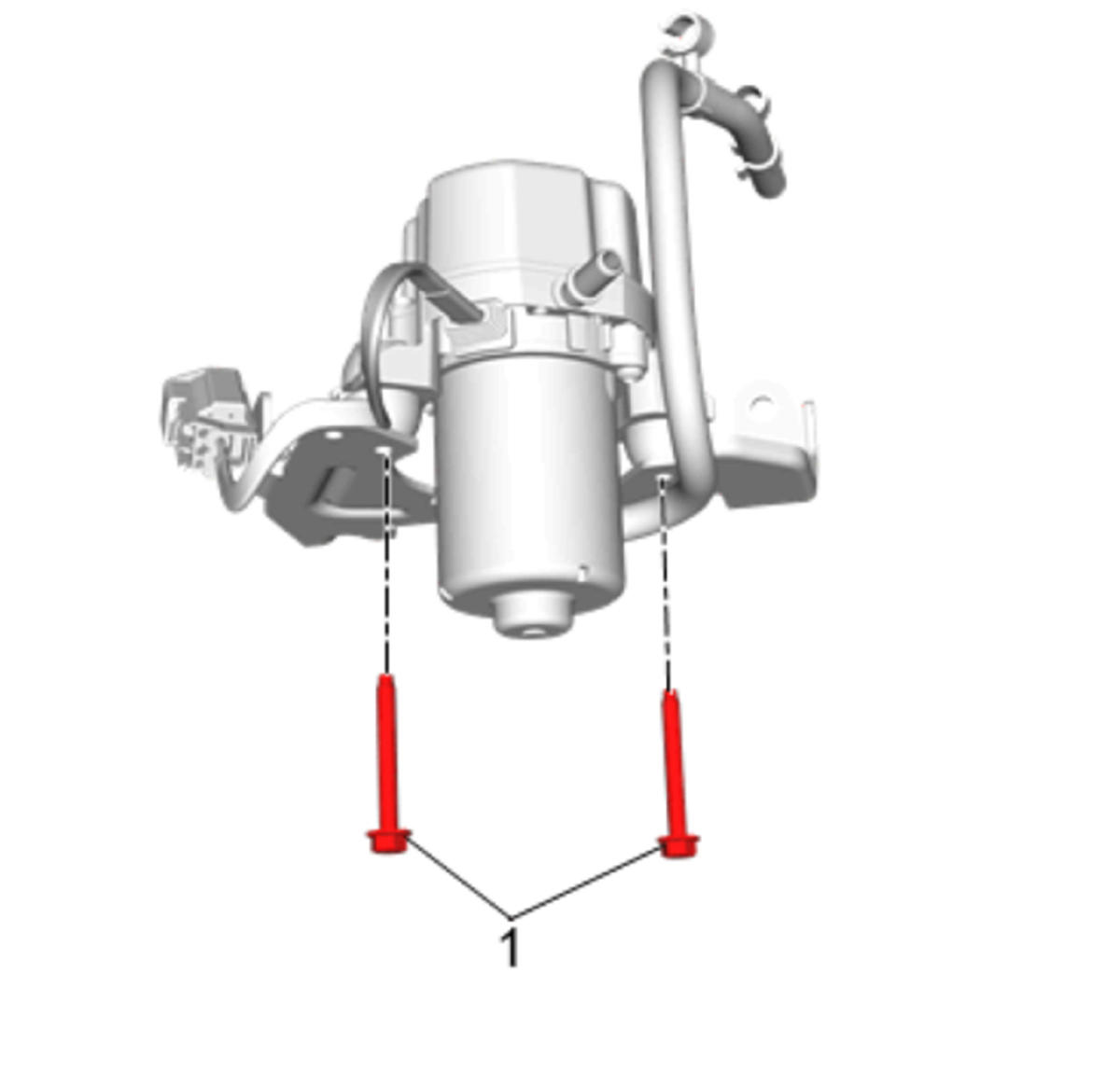

Power Brake Booster Pump Bracket Bolt (1) - Install [2x]

Courtesy of GENERAL MOTORS COMPANY

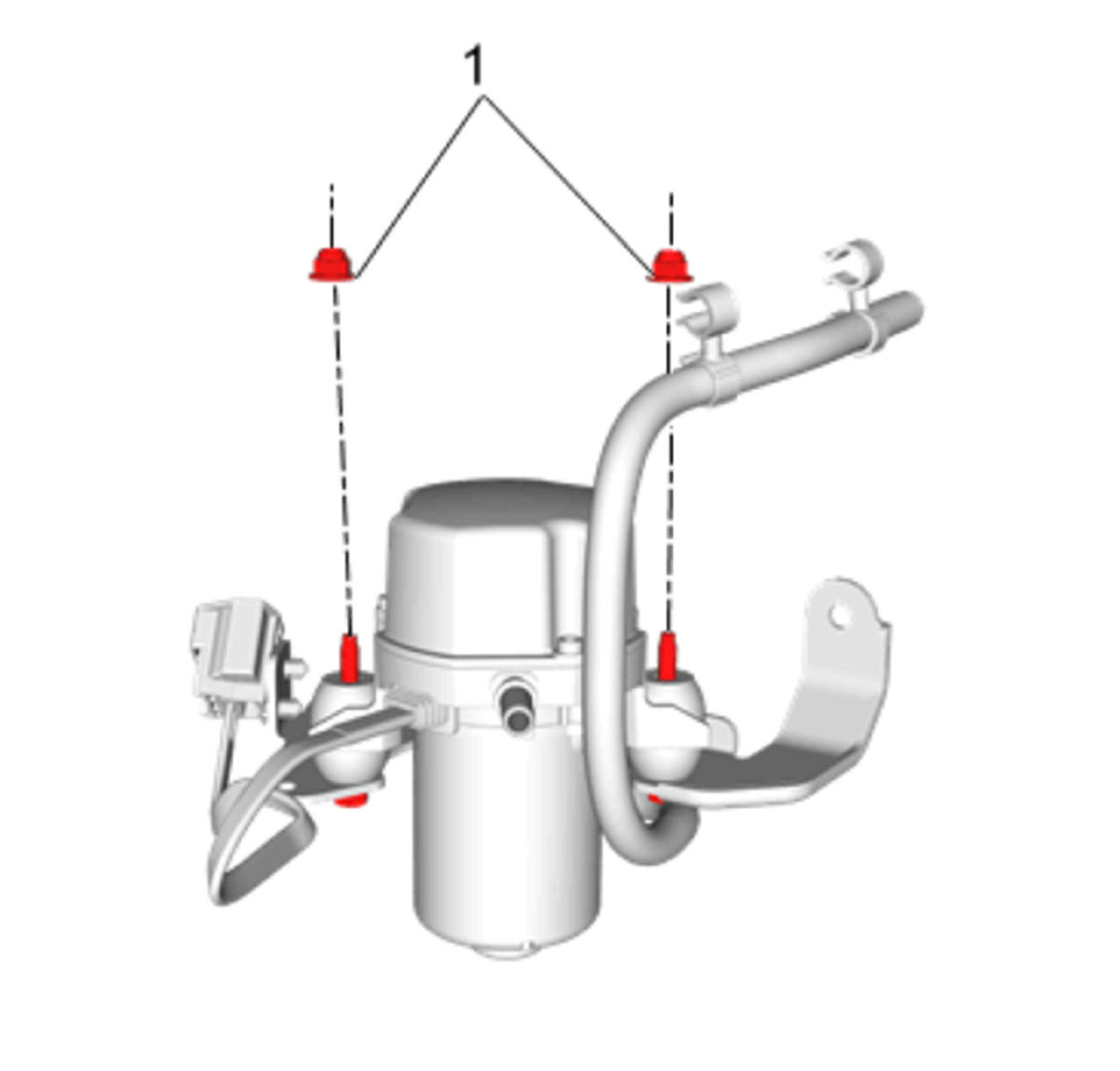

Power Brake Booster Pump Bracket Nut (1) - Install and tighten 22 N.m (16 lb ft) [2x]

Courtesy of GENERAL MOTORS COMPANY

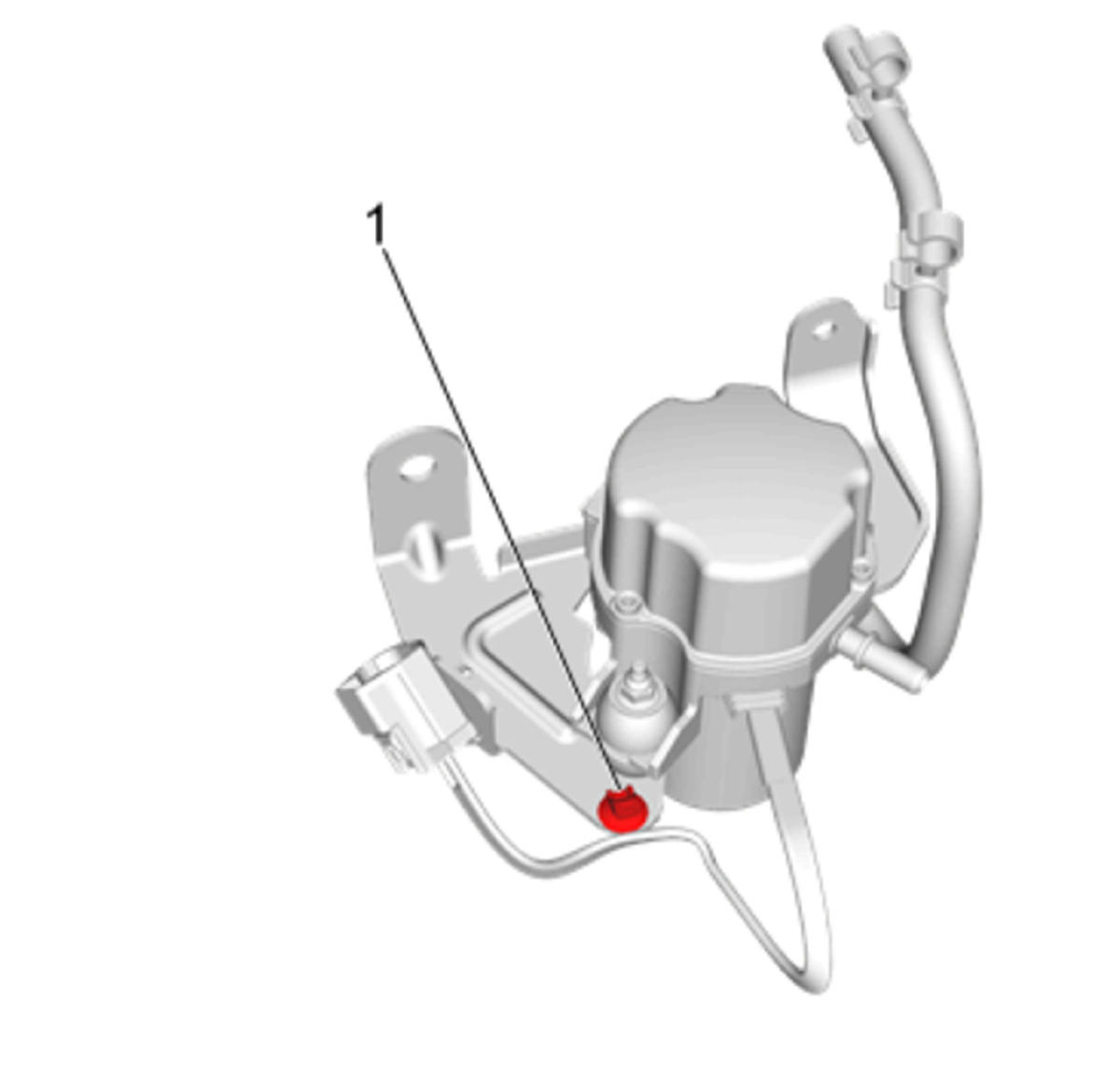

Retainer (1) - Install

Courtesy of GENERAL MOTORS COMPANY

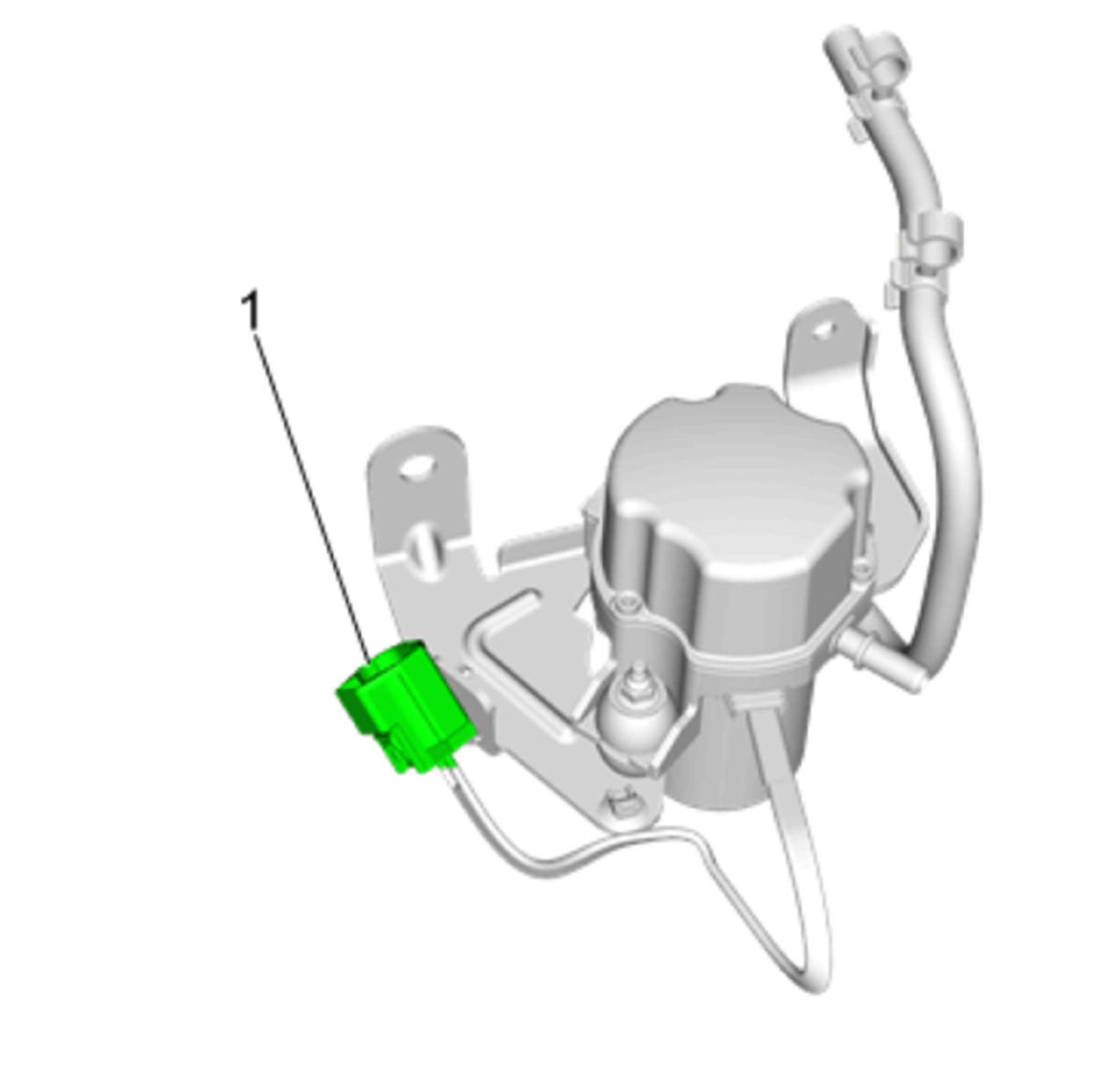

Electrical Connector (1) @ Power Brake Booster Pump Bracket - Secure

Courtesy of GENERAL MOTORS COMPANY

Power Brake Booster Pump (1) - Install - Power Brake Booster Pump Replacement
