Installation Procedure

Lightly lubricate the master cylinder reservoir seals with GM approved brake fluid from a clean, sealed brake fluid container. Adhesives, Fluids, Lubricants, and Sealers
Courtesy of GENERAL MOTORS COMPANY

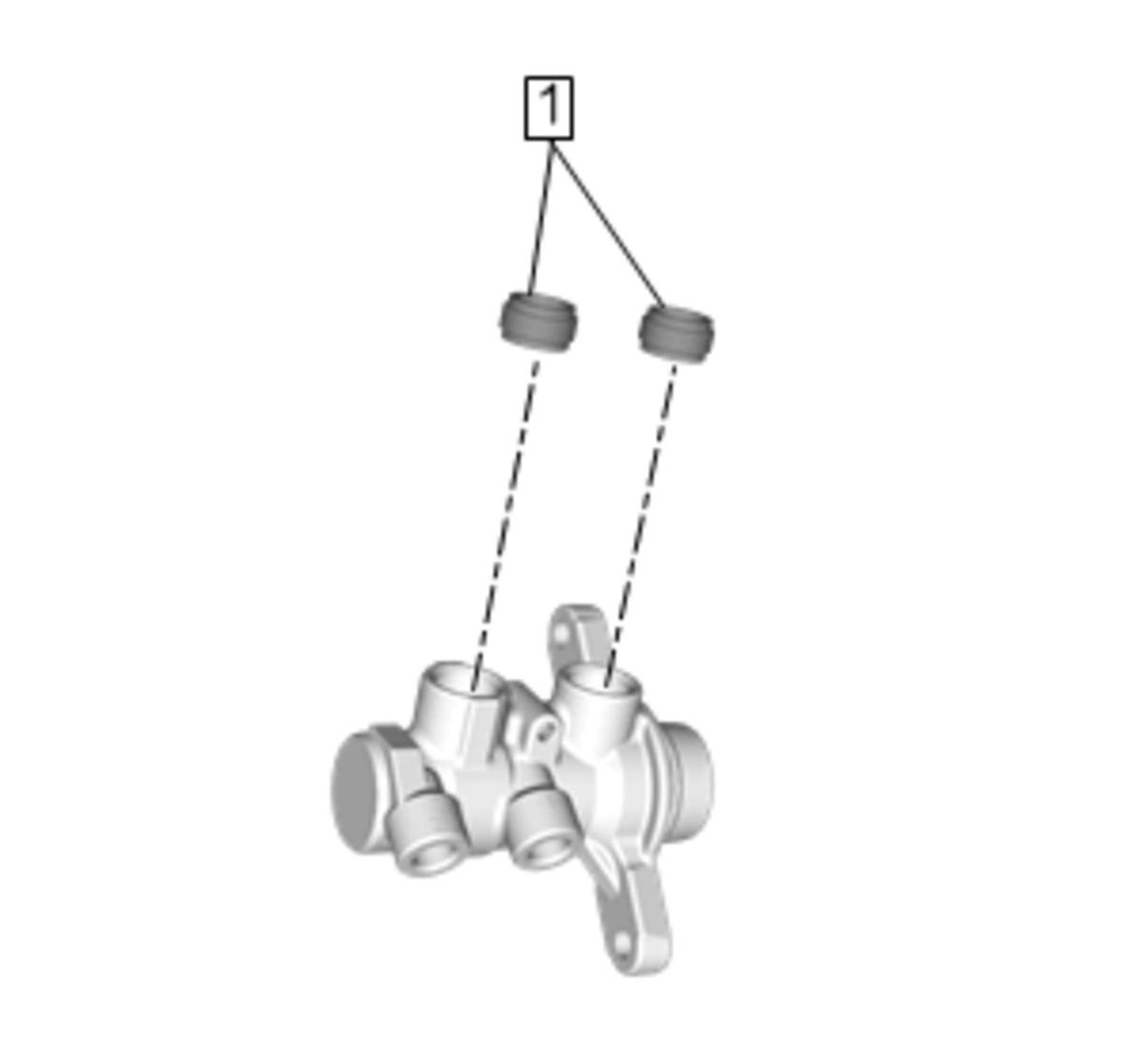

Master Cylinder Reservoir Seal (1) - Install [2x]
Courtesy of GENERAL MOTORS COMPANY

Brake Master Cylinder Reservoir (1) - Install
Courtesy of GENERAL MOTORS COMPANY

CAUTION:
Refer to Fastener Caution .

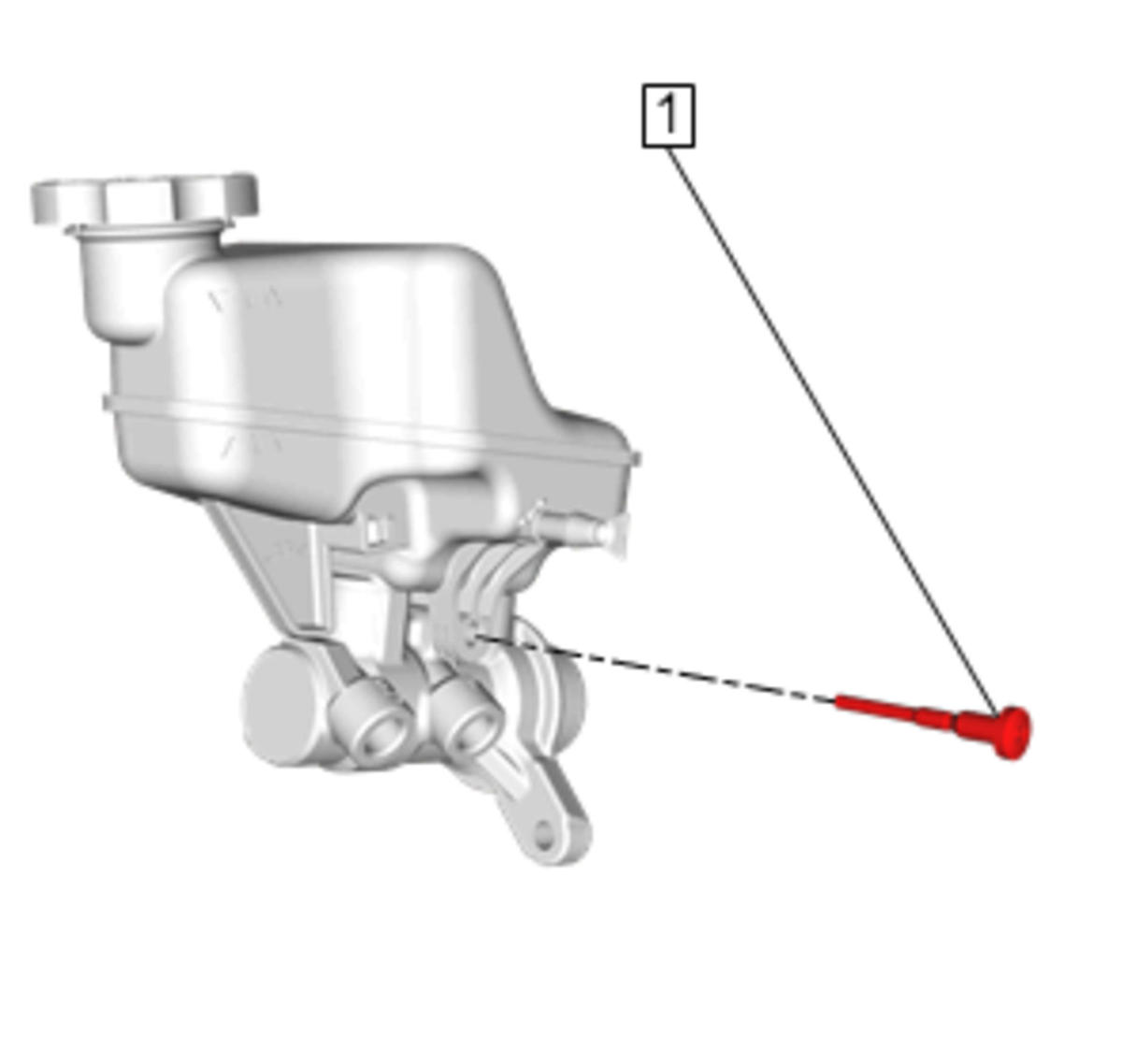

Brake Master Cylinder Reservoir Bolt (1) - Install and tighten 8 N.m (71 lb in)
Brake Master Cylinder Replacement - Install
