Installation Procedure

Courtesy of GENERAL MOTORS COMPANY

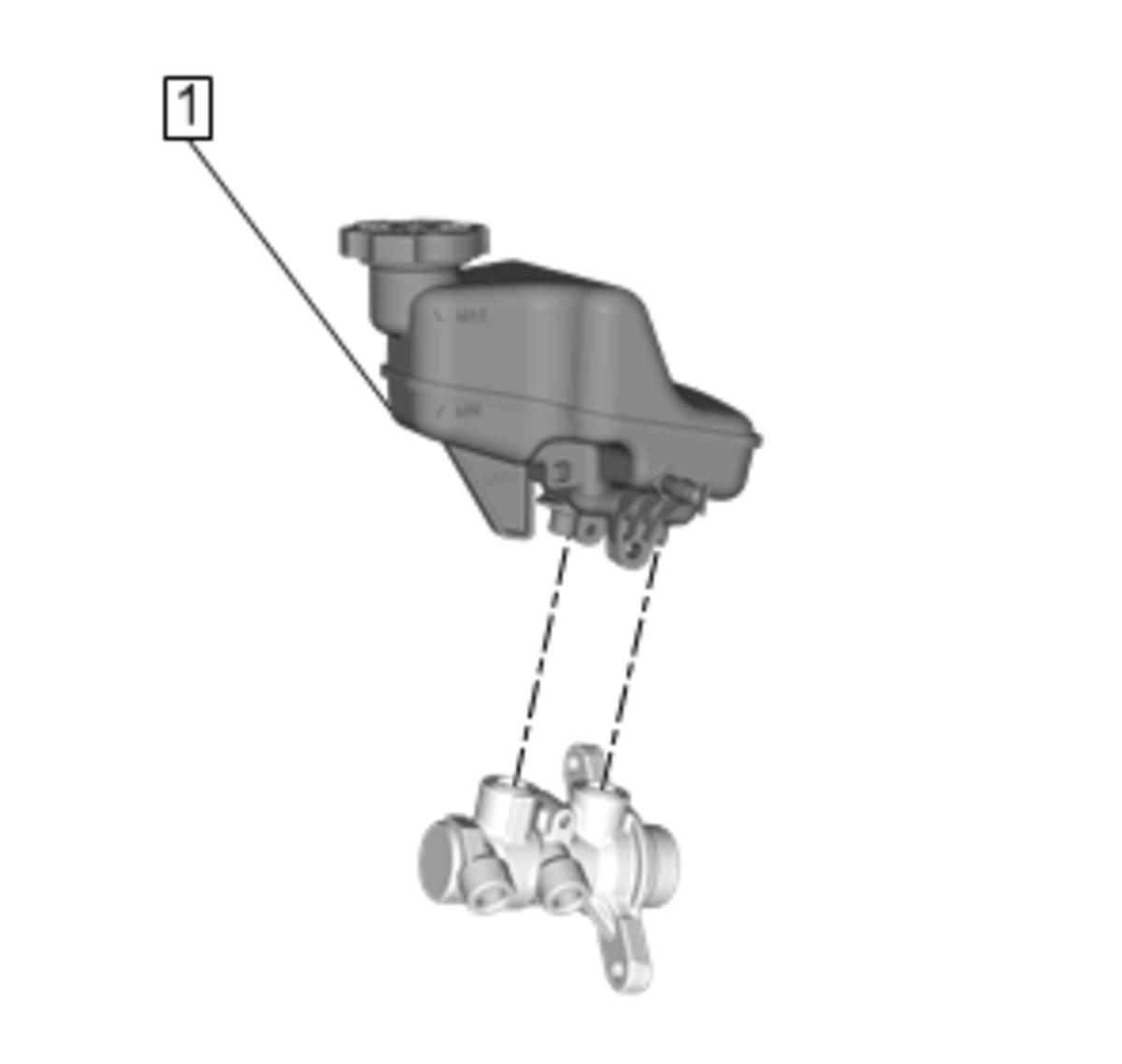

If removed, install the master cylinder reservoir (1). Brake Master Cylinder Reservoir Replacement
Bench bleed the master cylinder. Brake Master Cylinder Bench Bleeding
Courtesy of GENERAL MOTORS COMPANY

NOTE:
Ensure the master cylinder O-ring seal is properly seated in the master cylinder body to prevent vacuum leaks.

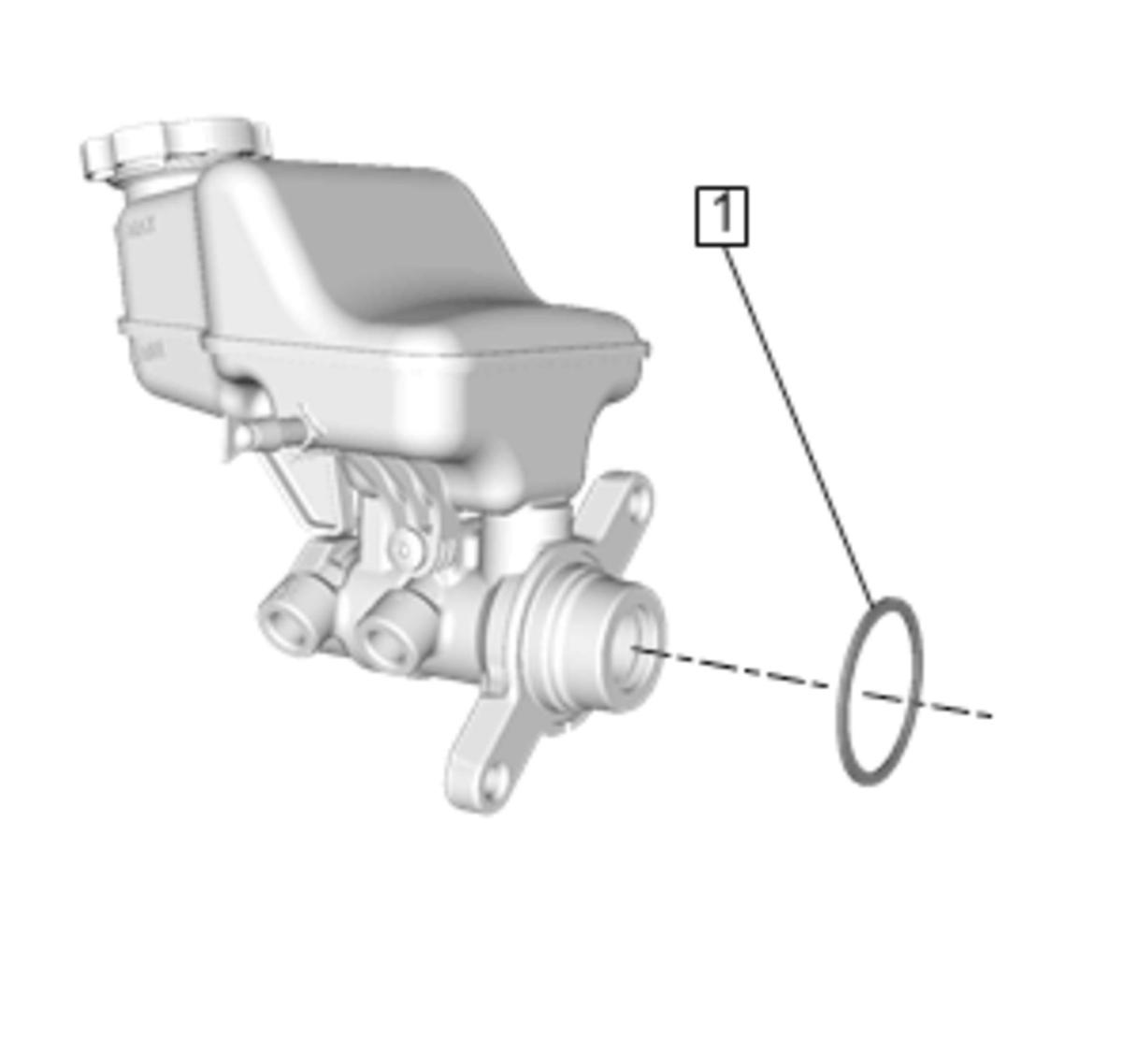

Install the master cylinder O-ring seal (1).

NOTE:

Center the power brake booster pushrod in the master cylinder piston.

Install the master cylinder assembly to the power brake booster.
Courtesy of GENERAL MOTORS COMPANY

CAUTION:
Refer to Fastener Caution .

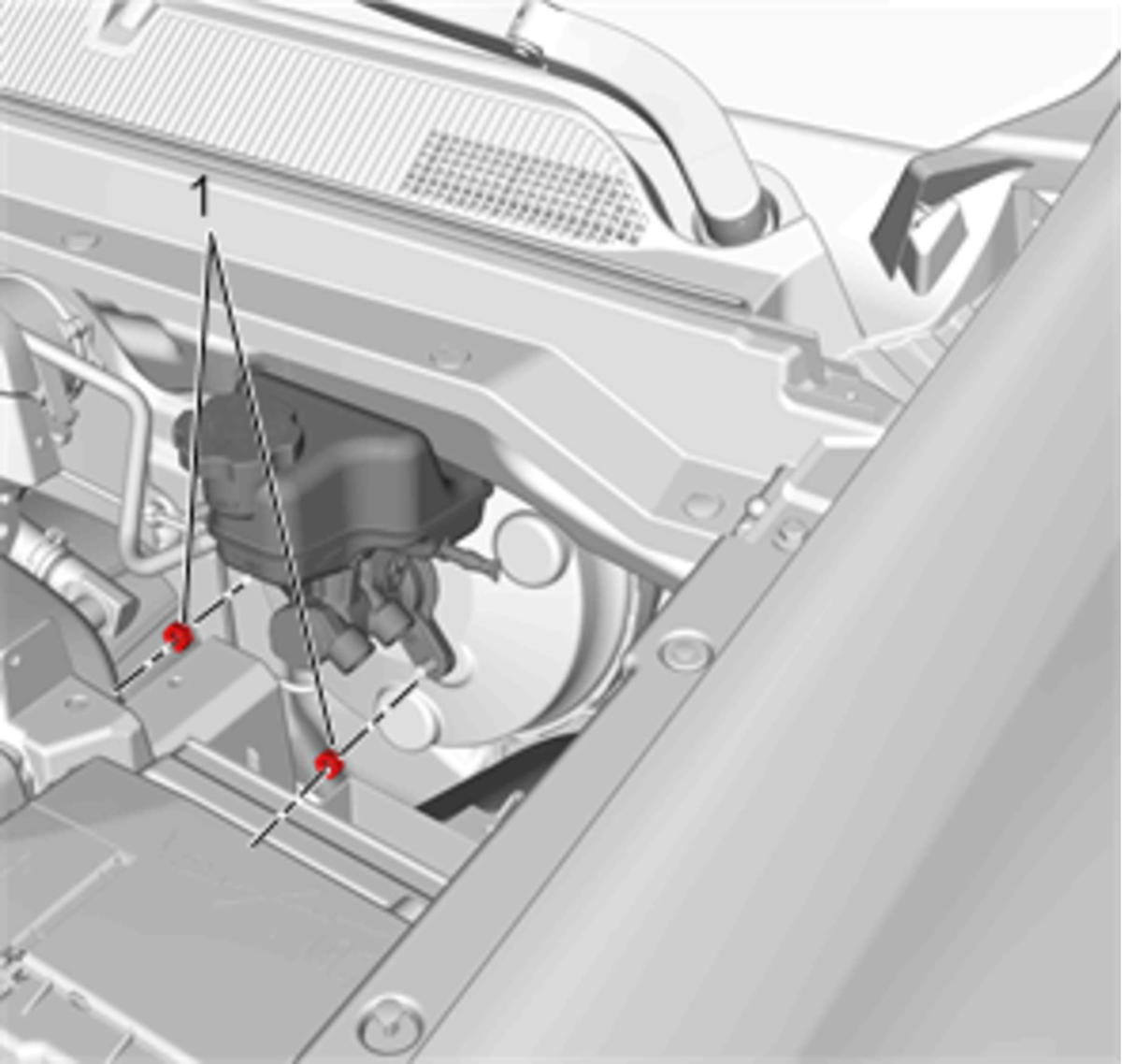

Install 2 NEW master cylinder nuts (1) and tighten to 25 N.m (18 lb ft).
Courtesy of GENERAL MOTORS COMPANY

Connect the master cylinder primary brake pipe fitting (1) and tighten to 45 N.m (33 lb ft).
Courtesy of GENERAL MOTORS COMPANY

Connect the master cylinder secondary brake pipe fitting (1) and tighten to 45 N.m (33 lb ft).
Courtesy of GENERAL MOTORS COMPANY

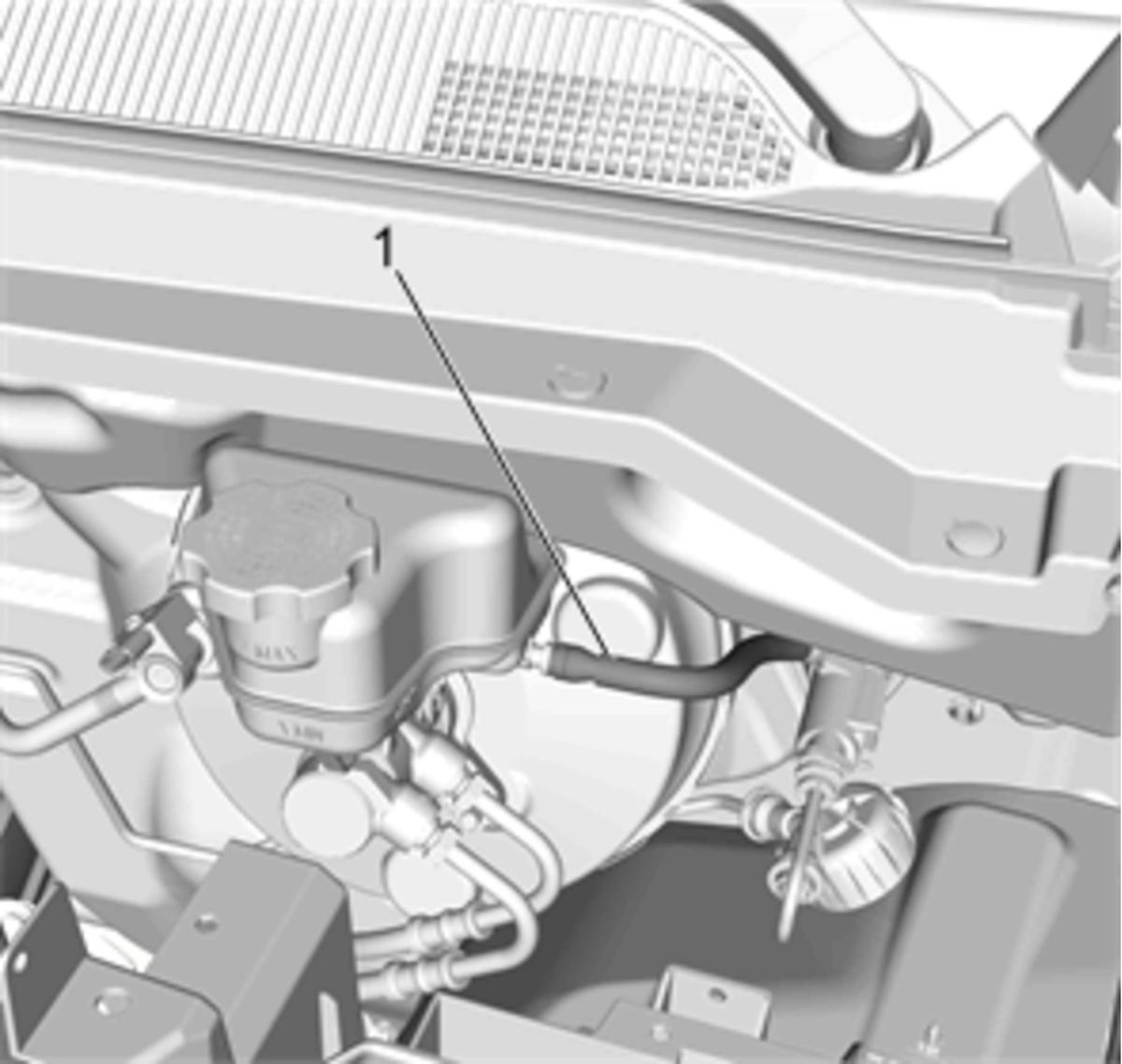

If equipped with a manual transmission, connect the hydraulic clutch feed hose (1) to the master cylinder reservoir.
Connect the brake fluid level indicator switch electrical connector.
Bleed the hydraulic brake system. Hydraulic Brake System Bleeding (Manual) , or Hydraulic Brake System Bleeding (Pressure)
Check for brake system leaks.
