Rear Wheelhouse Liner Replacement (Bison)

Courtesy of GENERAL MOTORS COMPANY

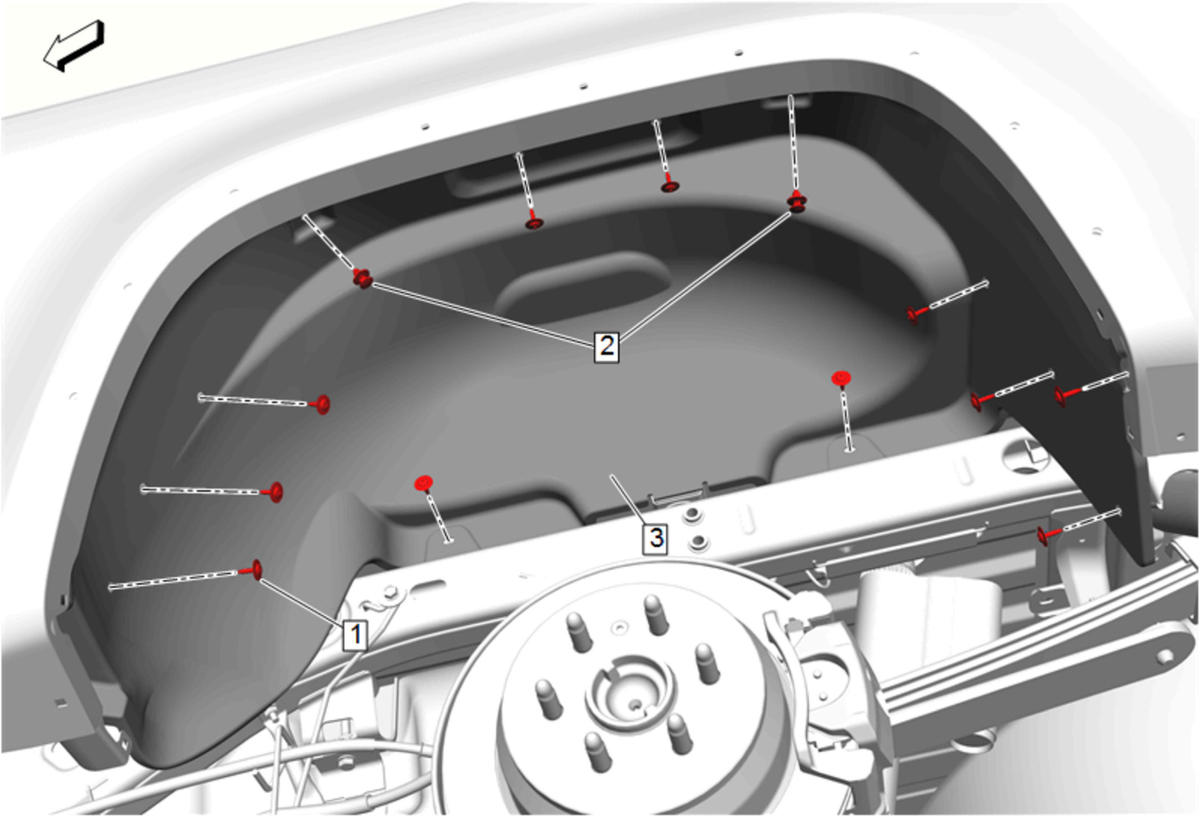

Callout	Component Name
Preliminary Procedures Remove the rear tire and wheel assembly. Tire and Wheel Removal and Installation Rear Pickup Box Paint Protector Replacement (With Bison)
1	Rear Wheelhouse Liner Bolt [11x] CAUTION: Refer to Fastener Caution Tighten 2.5 N.m (22 lb in)
2	Rear Wheelhouse Liner Retainer [2x]
3	Rear Wheelhouse Liner Procedure Install the rear tire and wheel assembly. Tire and Wheel Removal and Installation
