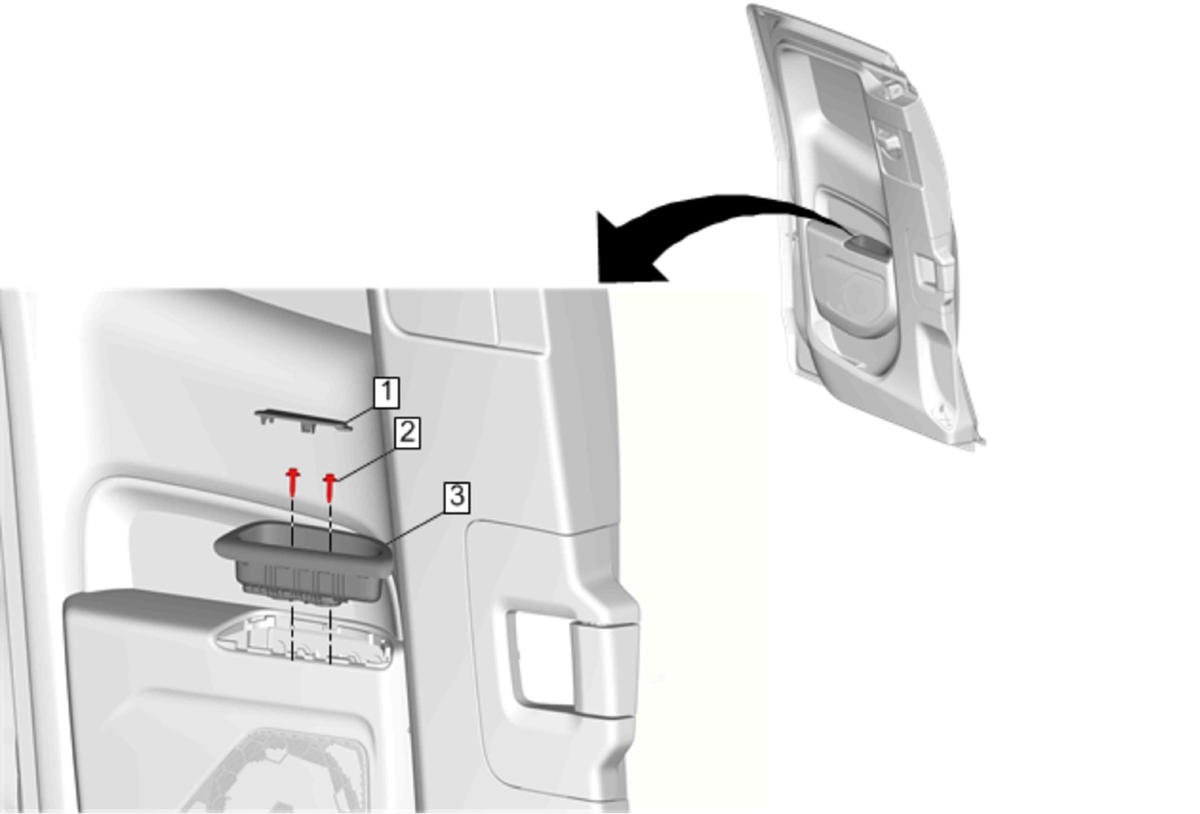

Rear Side Door Armrest Pull Cup Replacement
| Callout | Component Name |
|---|---|
| 1 | Rear Side Door Armrest Pull Cup Bolt Cap Procedure Use a small flat bladed tool to open the bolt cap to access the fasteners. |
| 2 | Rear Side Door Armrest Pull Cup Fastener [2x]
CAUTION:
Refer to Fastener Caution . Tighten 9 N.m (80 lb in) |
| 3 | Rear Side Door Armrest Pull Cup Assembly |
