Rear Side Door Accessory Switch Mount Plate Replacement

GM3796290

Courtesy of GENERAL MOTORS COMPANY

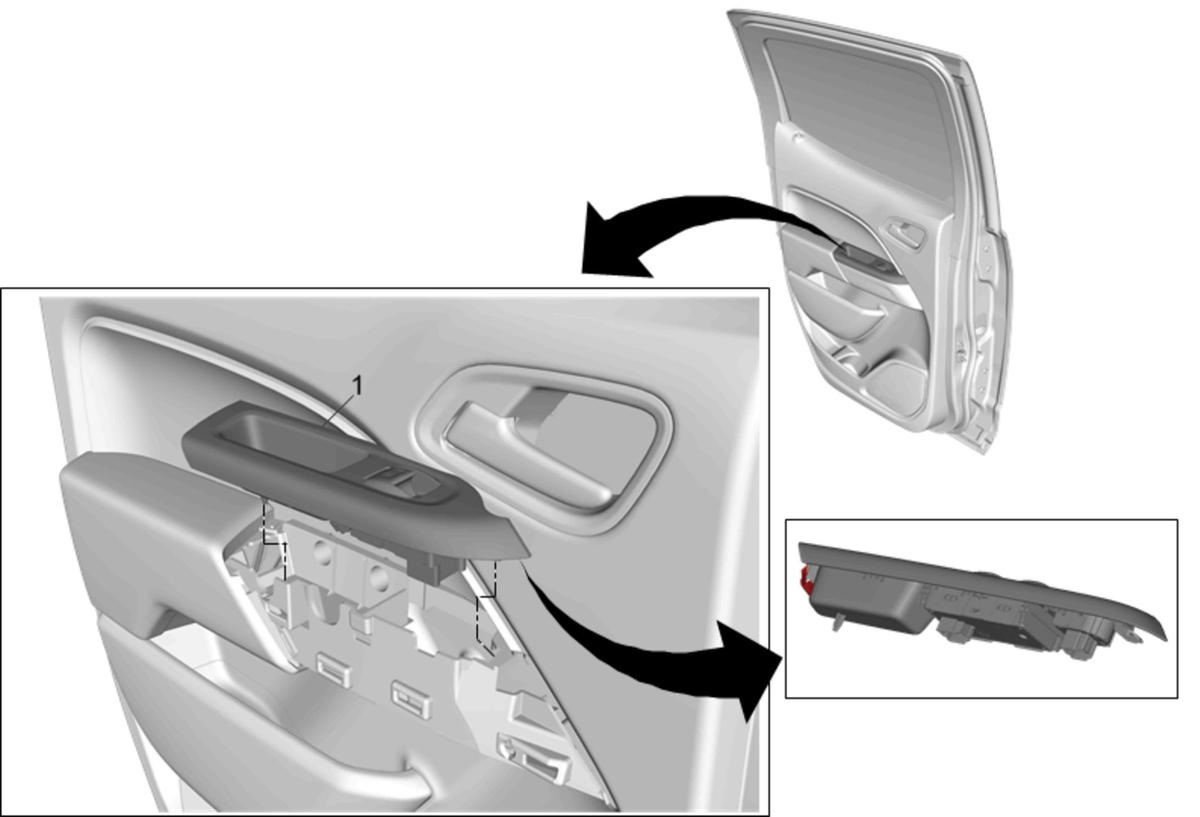

Callout

Component Name

1

Rear Side Door Accessory Switch Mount Plate Assembly

Procedures

Using a flat-bladed plastic trim tool, start at the rear of the armrest switch plate and gently lift up and rearward to disengage the rear retainer and unhook the front retaining feature.
Disconnect the electrical connector from the switch assembly.
Transfer parts as necessary.

NOTE:

The rear metal retainer may become dislodged and fall inside the door trim panel.
