Rear Side Door Adjustment (Ext Cab)

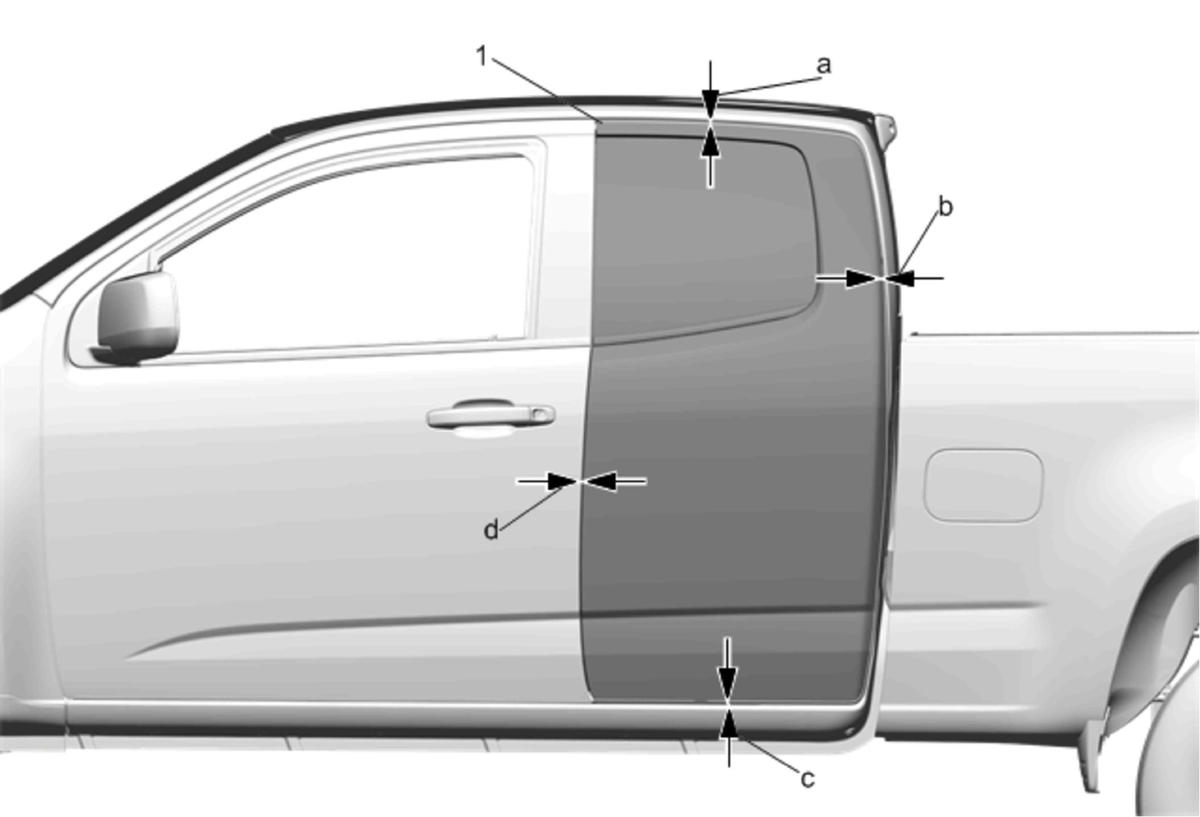

GM4057152Courtesy of GENERAL MOTORS COMPANY
Callout Component Name
1 Rear Side Door
CAUTION:

Refer to Fastener Caution .

Procedure

  1. Loosen the rear door hinge bolts (Qty: 6) to adjust the rear door.
  2. Adjust the rear door in order to obtain an even gap around as follows:

    Adjustment

    • Rear side door to roof

      (a) U/D Gap: 4.5 ± 1.25 / within 1.25

      C/C Flush: 3.0 ± 1.5 (Doors sub-Flush)

      Flush Alignment: within 1.5

    • Rear side door to edge of cab panel

      (b) F/A Gap: 4.0 ± 0.75 / within 1.0 (CC)

      C/C Flush: 0.25 ± 1.0 / within 1.0 (BSO sub-flush) (CC)

      C/C Gap: 6.0 ± 1.25 / within 1.0 (EC)

      Flush: 0.5 ± 1.0 / within 1.0 (BSO sub-flush) (EC)

    • Lower edge of rear side door to rocker panel

      (c) U/D Gap: 1.8 ± 0.5

    • Rear side door to front side door

      (d) F/A Gap: 4.0 ± 0.75 / within 1.0

      C/C Flush: 0.25 ± 1.0 / within 1.0 (Rear Door sub-flush)


Tighten
32 N.m (24 lb ft)
NOTE:

If door drags on the door lock striker or high closing effort is needed to fully engage the door lock, then adjustment of the door lock striker will be required.


Rear Side Door Lock Striker Adjustment (Extended Cab)
