Front Bumper Shutter Baffle Replacement (Upper With Bison)

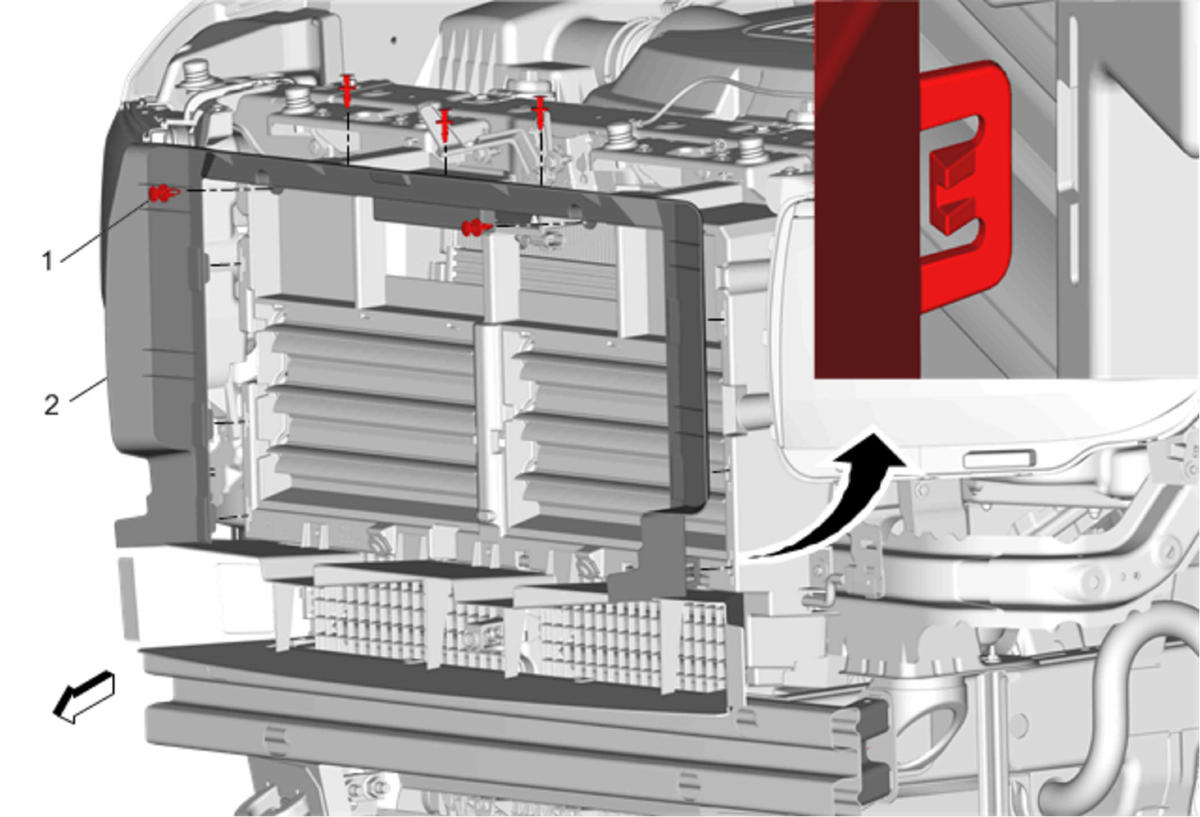

| Callout | Component Name |
|---|---|
| Preliminary Procedure Front Grille Replacement (Bison) |
|
| 1 | Front Bumper Shutter Baffle Push-In Retainer [5x] |
| 2 | Front Bumper Shutter Baffle Procedure Release the four front bumper shutter baffle retainer tabs. |
