Front Bumper Shutter Baffle Replacement (Lower Without Bison)

Courtesy of GENERAL MOTORS COMPANY

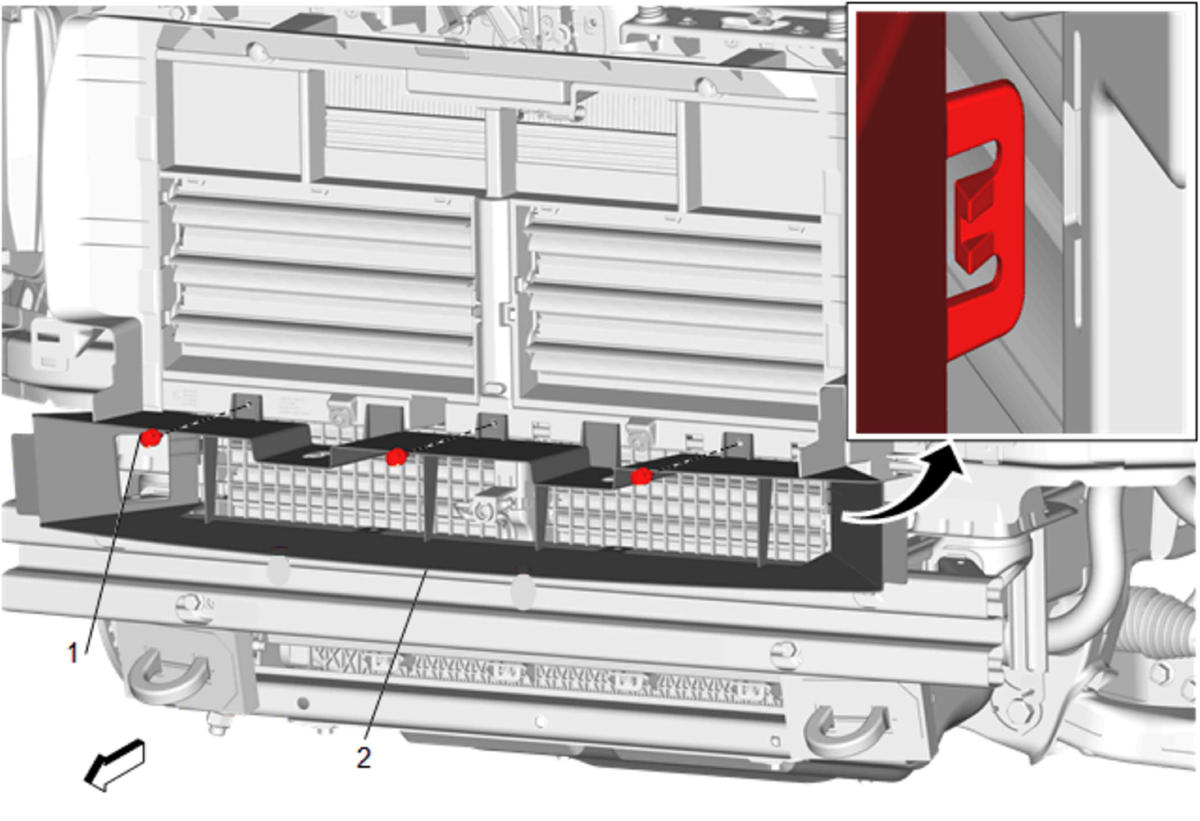

Callout	Component Name
Preliminary Procedure  Front Bumper Fascia Replacement (GMC) , or Front Bumper Fascia Replacement (Chevrolet) , or Front Bumper Fascia Replacement (ZR2)
1	Front Bumper Shutter Baffle Push-In Retainer [3x]
2	Front Bumper Shutter Baffle Procedure  Release the two front bumper shutter baffle retainer tabs.
