Front Bumper Lower Fascia Replacement (With Bison)

Courtesy of GENERAL MOTORS COMPANY

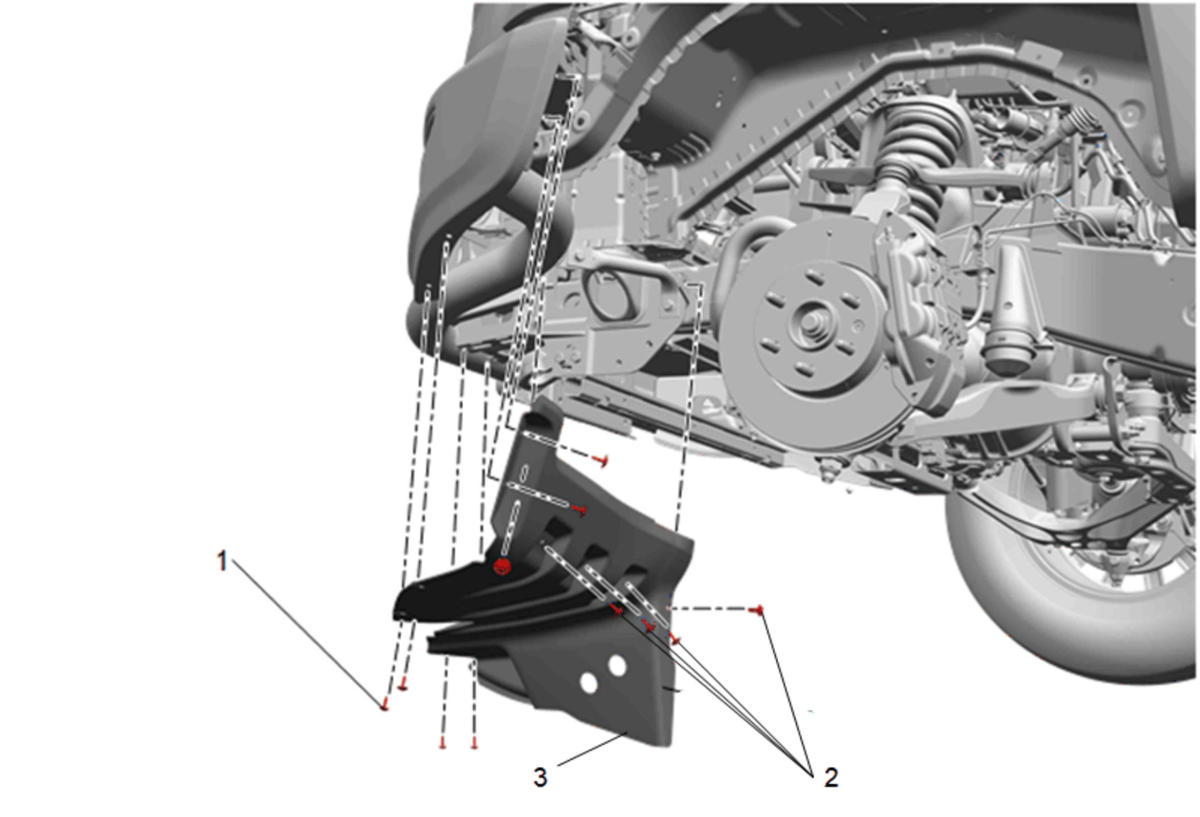

Callout	Component Name
Preliminary Procedure  Underbody Skid Shield Replacement (Bison)
1	Front Bumper Fascia Bolt [7x] CAUTION: Refer to Fastener Caution . Tighten  2.5 N.m (22 lb in)
2	Front Bumper Fascia Bolt [4x] Procedure  Loosen the 4 bolts. Tighten  2.5 N.m (22 lb in)
3	Front Bumper Lower Fascia
