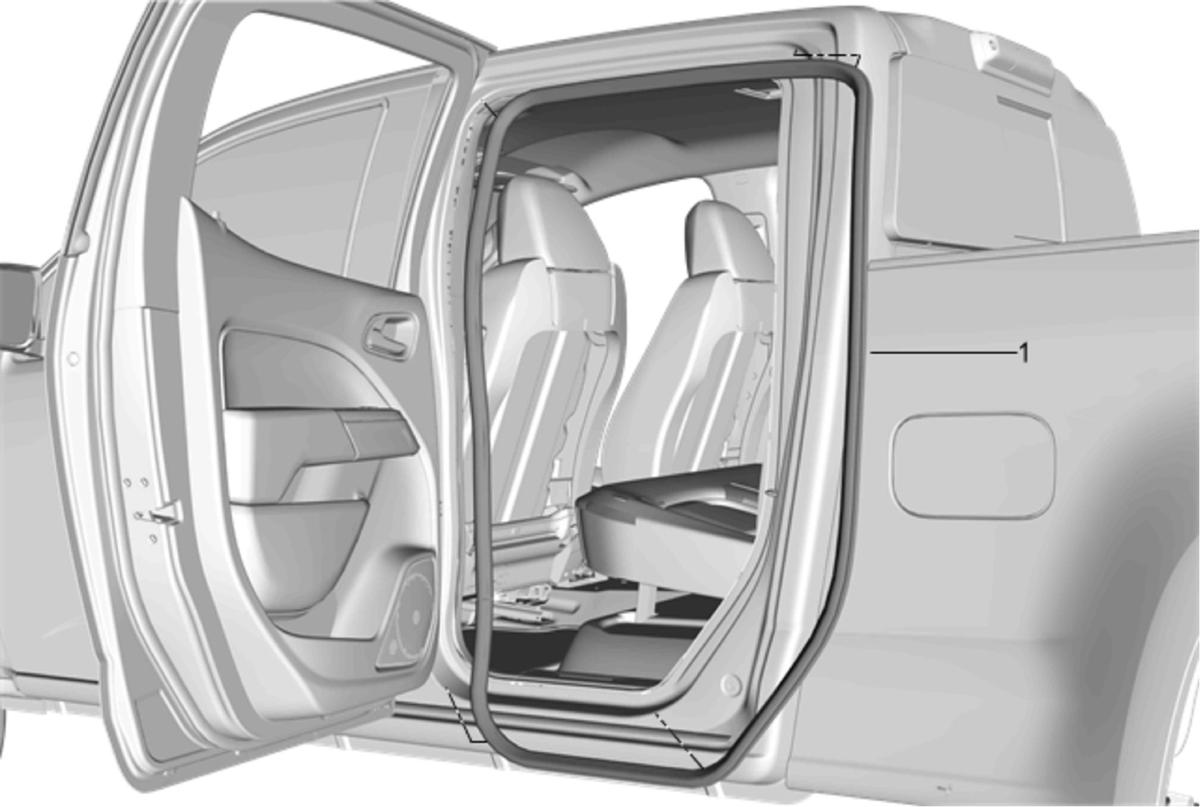

Rear Side Door Weatherstrip Replacement - Body Side

Procedure

1. Start at the front upper corner of the door opening and pull the weatherstrip away from the door opening flange.
2. Position the weatherstrip in the upper corner of the center pillar.
3. Using the appropriate tool, reposition the interior trim as necessary.
4. Working downward along the front edge, install the weatherstrip on the door opening flange ensuring that the carrier is fully seated in the corners.
5. Ensure that the weatherstrip is seated on the entire door opening flange.
