Rear Side Door Check Link Replacement (Crew Cab)

Courtesy of GENERAL MOTORS COMPANY

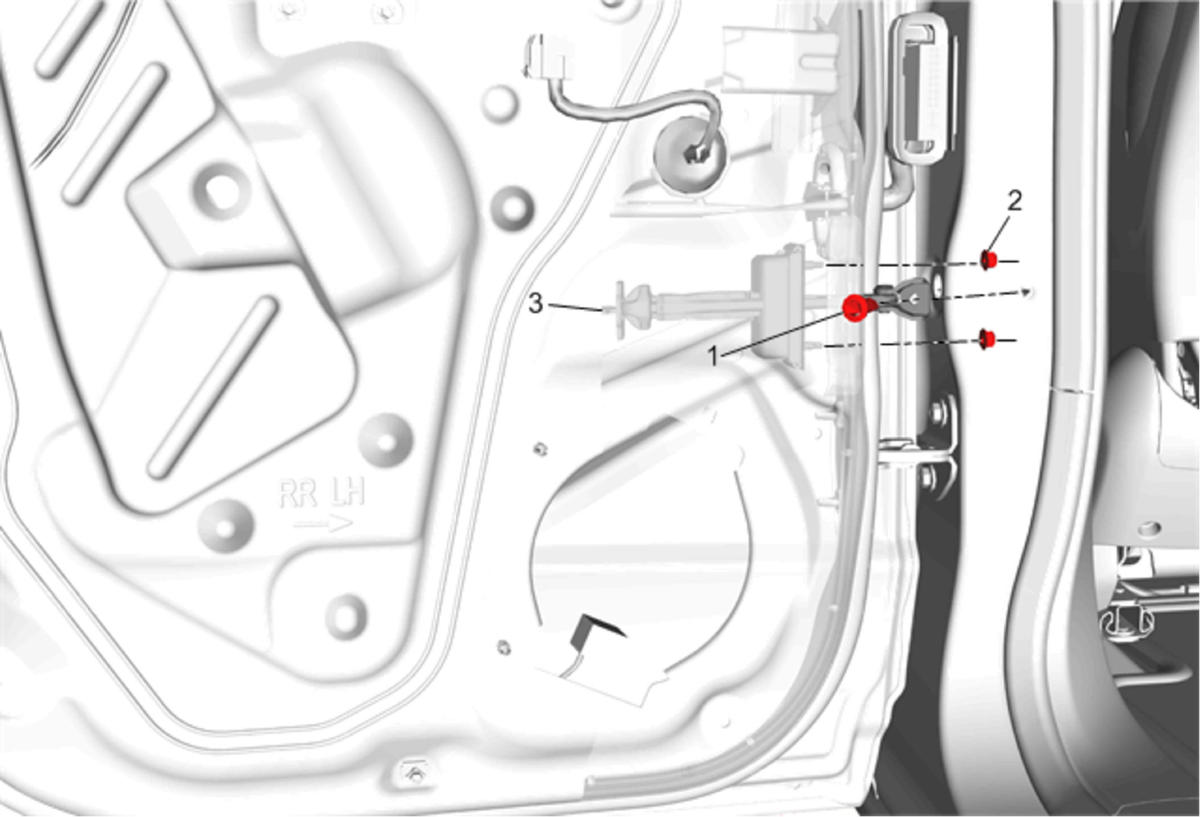

Callout	Component Name
Preliminary Procedures Open the rear side door to the full open position. Place the window in the full up position. Remove the radio rear side door speaker. Refer to Radio Rear Side Door Speaker Replacement (Crew Cab) .
1	Rear Side Door Check Link Fastener to Body CAUTION: Refer to Fastener Caution . Tighten 22 N.m (16 lb ft)
2	Rear Side Door Check Link Fastener to Door (Qty: 2) Tighten 9 N.m (80 lb in)
3	Rear Side Door Check Link Procedure Remove the check link assembly through the speaker opening from inside the door. NOTE: Inspect the door for proper operation before installing the door trim.
