Hood Primary Latch Release Cable Replacement

Courtesy of GENERAL MOTORS COMPANY

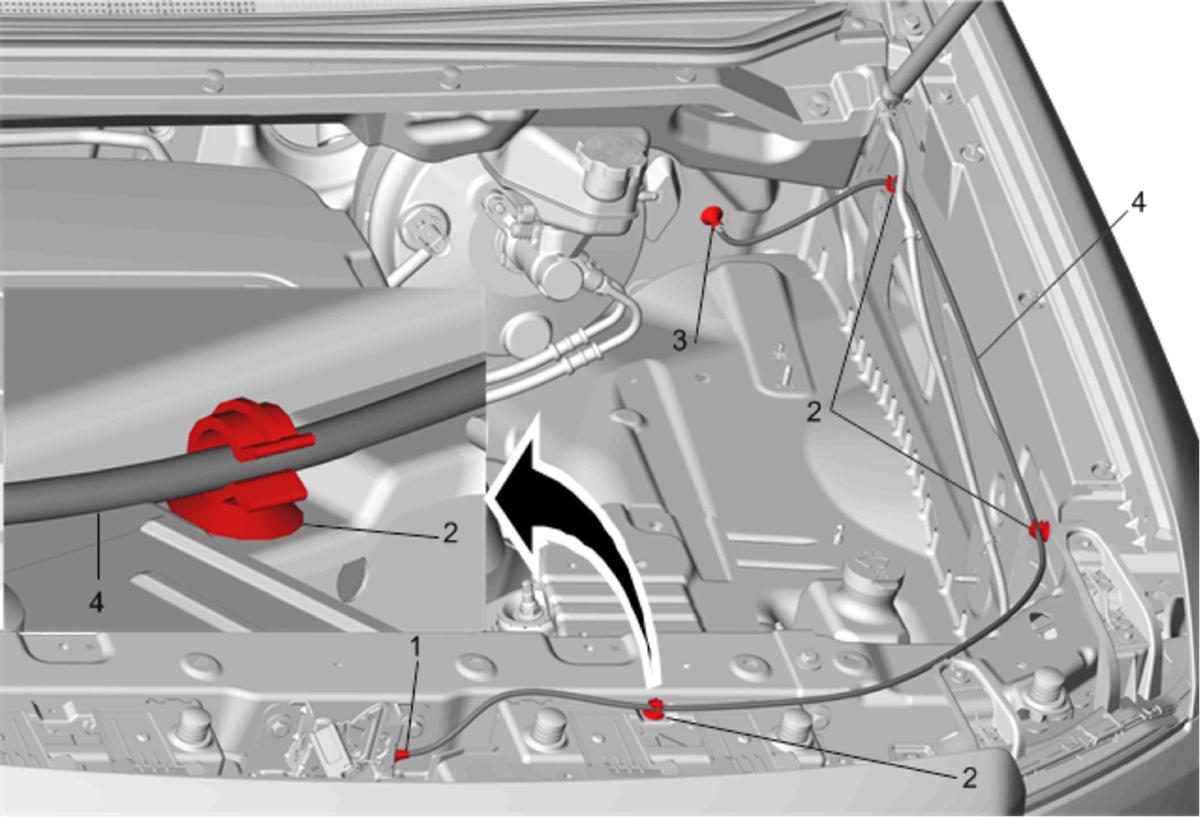

Callout	Component Name
Preliminary Procedure Remove the front compartment front sight shield. Refer to Front Compartment Front Sight Shield Replacement .
1	Hood Primary Latch Cable Procedure Disconnect the hood primary latch release cable from the primary hood latch.
2	Hood Primary Latch Release Cable Retainer (Qty: 3) Procedure Disconnect the hood release cable retainers from the hood release cable.
3	Hood Primary Latch Release Cable Grommet
4	Hood Primary Latch Release Cable Procedure Disconnect the hood primary latch release cable from the hood latch cable handle Attach mechanics wire to the cable and pull the cable out. Attach mechanics wire to the new cable and guide in.
