Hood Insulator Replacement (ZR2)

Courtesy of GENERAL MOTORS COMPANY

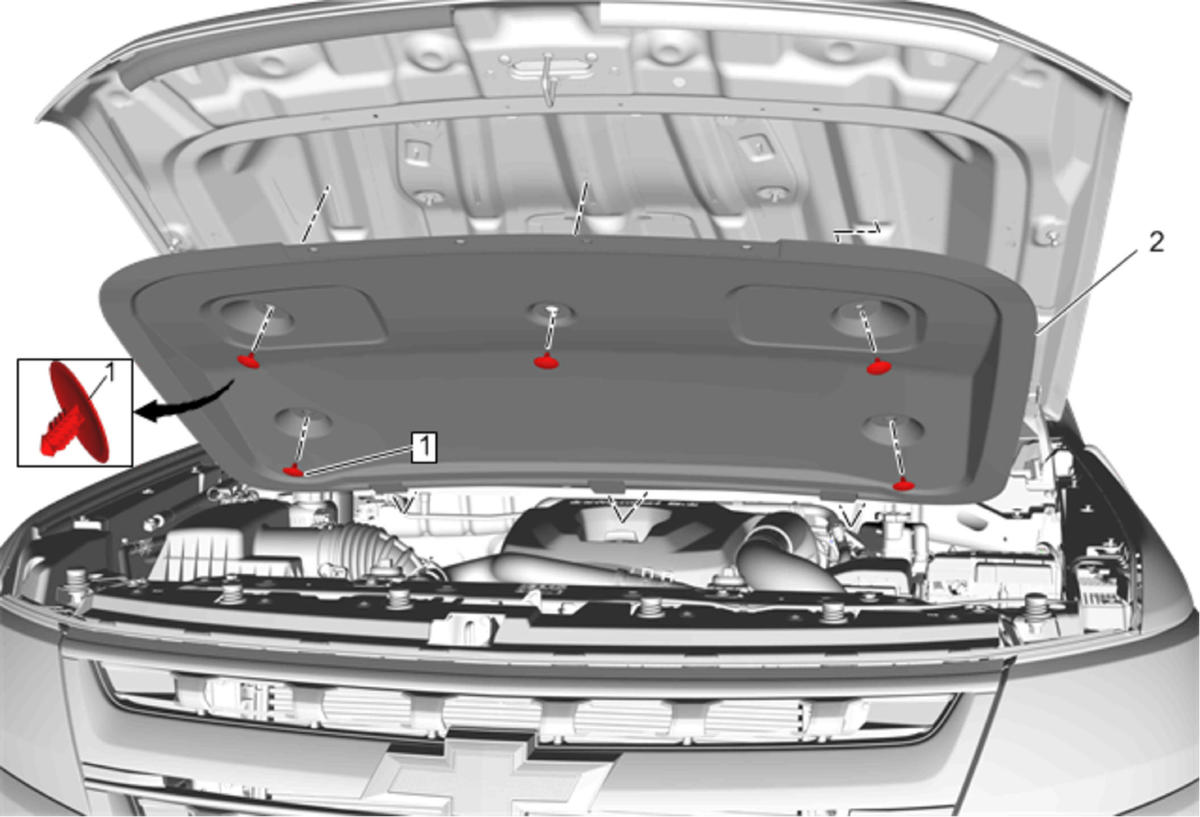

Callout	Component Name
Preliminary Procedures Hood Weatherstrip Replacement Remove both hood front edge weatherstrips. Hood Front Edge Weatherstrip Replacement (Left Side) , or Hood Front Edge Weatherstrip Replacement (Right Side)
1	Hood Insulator Retainer [5x]
2	Hood Insulator NOTE: Ensure the three lower integral tabs are secure to the hood.

Callout

Component Name

Preliminary Procedures

Hood Insulator Retainer [5x]

Hood Insulator

NOTE:

Ensure the three lower integral tabs are secure to the hood.
