Hood Front Edge Weatherstrip Replacement (Right Side)
Hood Front Edge Weatherstrip Replacement (Right Side)
Courtesy of GENERAL MOTORS COMPANY

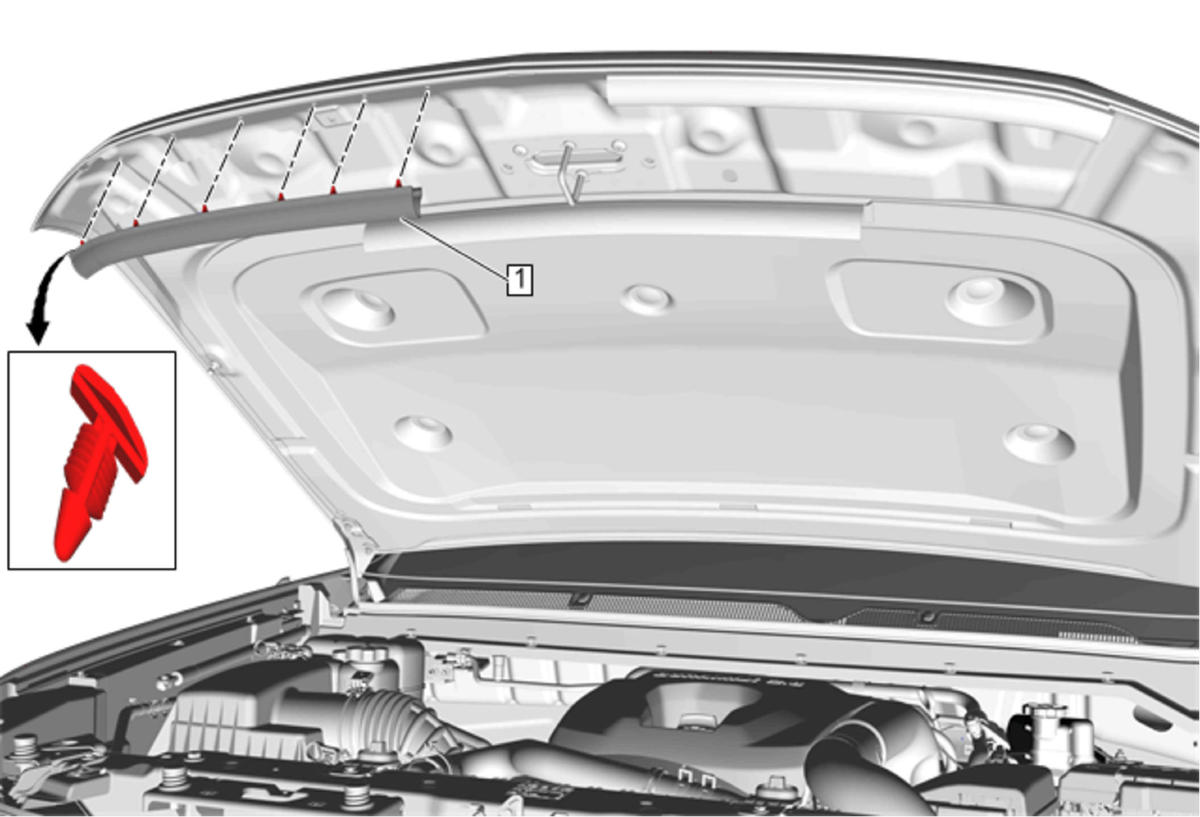

Callout
Component Name
1
Hood Front Edge Weatherstrip-Right Side
Procedure
Using a trim type tool, release the integral retainers from the hood.
