Front Side Door Wiring Harness Replacement

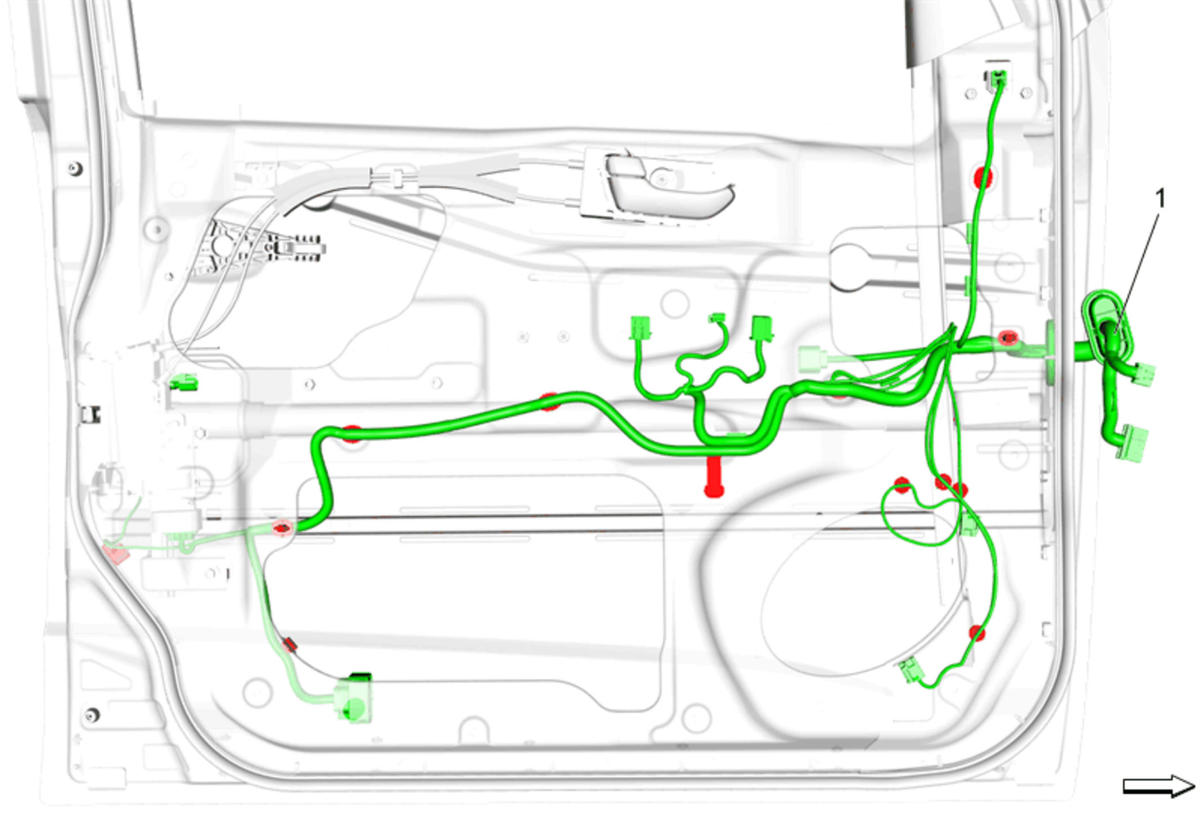

GM4507440Courtesy of GENERAL MOTORS COMPANY
Callout Component Name
Preliminary Procedures
  1. Radio Front Side Door Speaker Replacement
  2. Remove the water deflector.
1 Front Side Door Wiring Harness
Procedure
Disconnect all electrical connectors.
