Front Side Door Weatherstrip Replacement - Body Side

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedures Remove the instrument panel outer cover. Refer to Instrument Panel Outer Trim Cover Replacement . Remove the windshield garnish molding. Refer to Windshield Garnish Molding Replacement - Left Side , or Windshield Garnish Molding Replacement - Right Side .

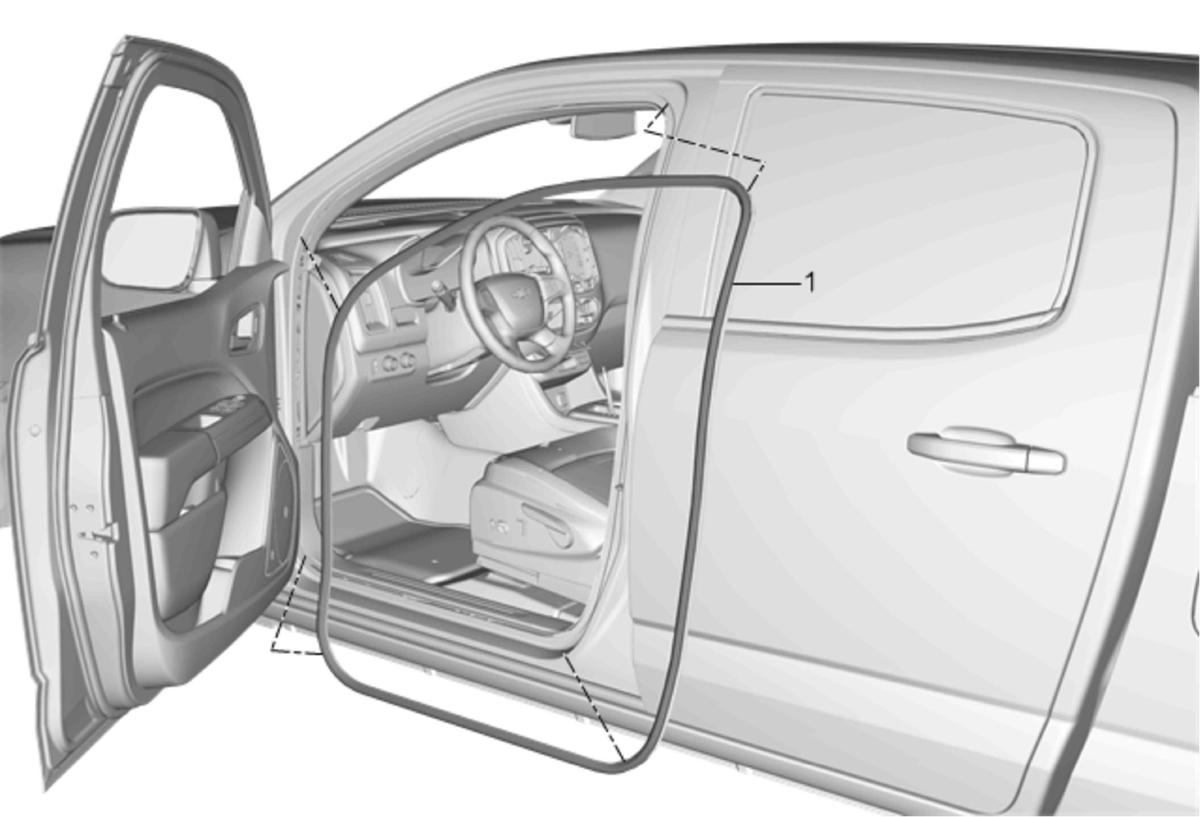

1	Front Side Door Weatherstrip to Body Side Procedures Start at the rear upper corner of the door opening and pull the weatherstrip away from the door opening flange. Position the weatherstrip in the upper corner of the center pillar. Using the appropriate tool, reposition the interior trim as necessary. Working downward along the front edge, install the weatherstrip on the door opening flange ensuring that the carrier is fully seated in the corners. Ensure that the weatherstrip is seated on the entire door opening flange. NOTE: Inspect the door to ensure a proper seal after the weatherstrip has been replaced.

Callout

Component Name

Preliminary Procedures

Front Side Door Weatherstrip to Body Side

Procedures

Start at the rear upper corner of the door opening and pull the weatherstrip away from the door opening flange.
Position the weatherstrip in the upper corner of the center pillar.
Using the appropriate tool, reposition the interior trim as necessary.
Working downward along the front edge, install the weatherstrip on the door opening flange ensuring that the carrier is fully seated in the corners.
Ensure that the weatherstrip is seated on the entire door opening flange.

NOTE:

Inspect the door to ensure a proper seal after the weatherstrip has been replaced.
