Front Side Door Lower Auxiliary Weatherstrip Replacement

Courtesy of GENERAL MOTORS COMPANY

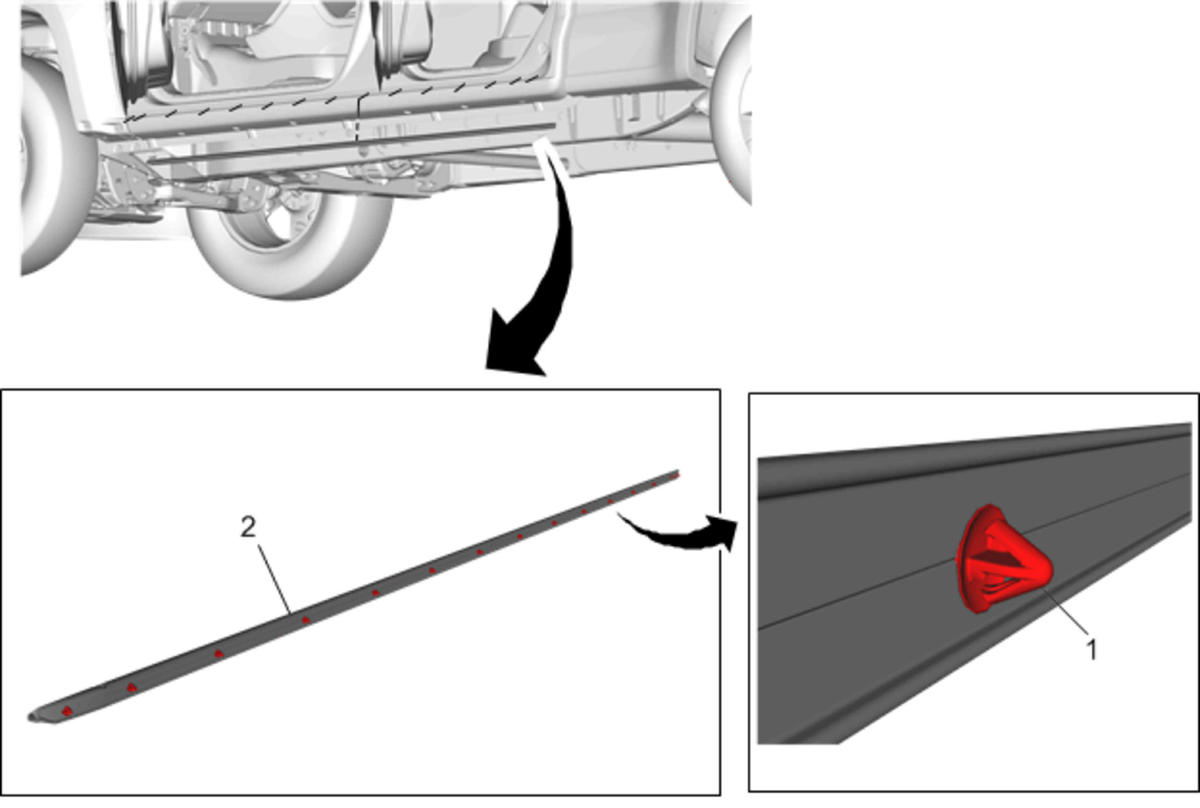

Callout	Component Name
Preliminary Procedure  Open both front and rear side doors.
1	Front Side Door Lower Auxiliary Weatherstrip Retainer (Qty: 15) Procedure  Using the appropriate tool, remove the retainers and front side door lower auxiliary weatherstrip from the body side outer panel.
2	Front Side Door Lower Auxiliary Weatherstrip
