Front Side Door Front Auxiliary Weatherstrip Replacement

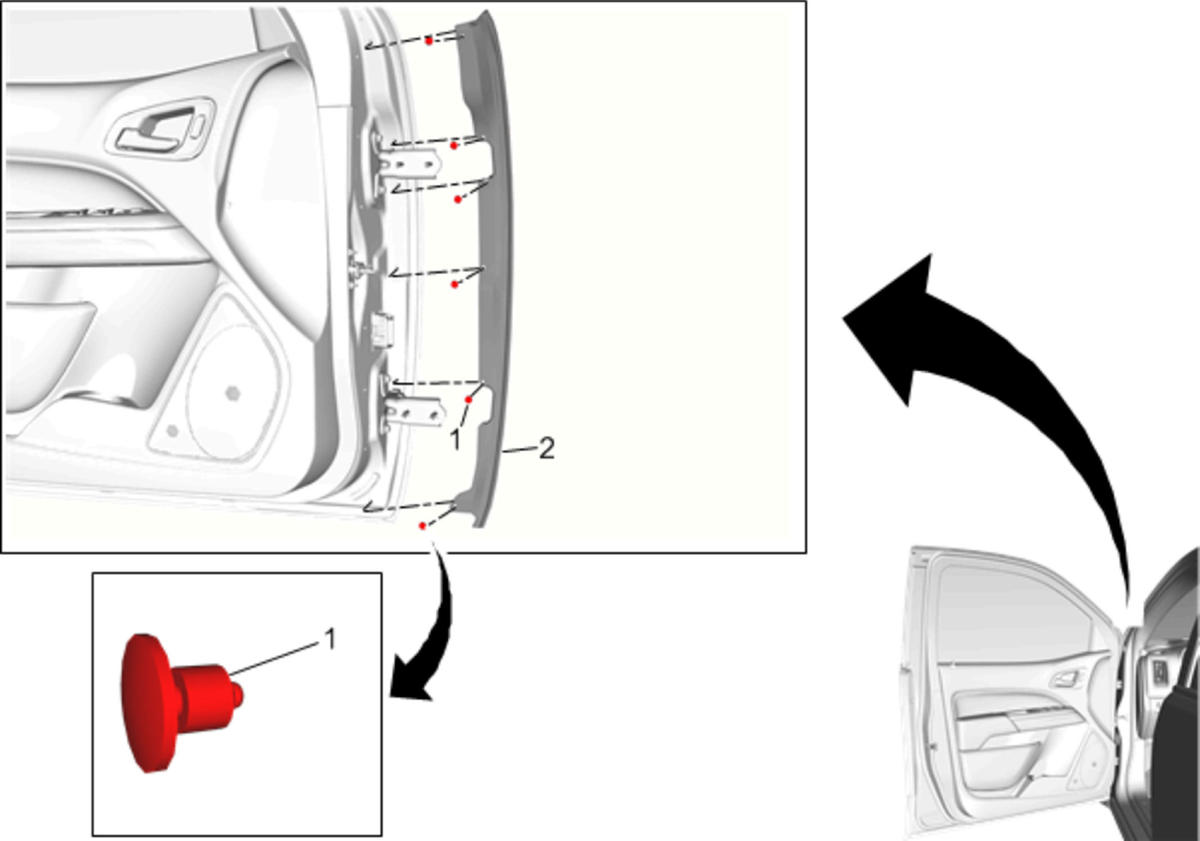

GM3681589Courtesy of GENERAL MOTORS COMPANY
Callout Component Name
Preliminary Procedure
Release the retainer and reposition the front side door weatherstrip to gain access to the front side door front auxiliary weatherstrip.
1 Front Side Door Front Auxiliary Weatherstrip Retainer (Qty: 6)
Procedure
Using the appropriate tool, remove the front side door front auxiliary weatherstrip retainers.
2 Front Side Door Front Auxiliary Weatherstrip
NOTE:

Inspect the door to ensure a proper seal after the weatherstrip has been replaced.
