GMC
>>
2020
>>
Canyon SL
>>
Repair and Diagnosis
>>
Accessories & Equipment
>>
Gauges & Instrument Panels
>>
Displays And Gauges
>>
Schematic Wiring Diagrams
>>
Instrument Cluster Wiring Schematics
>>

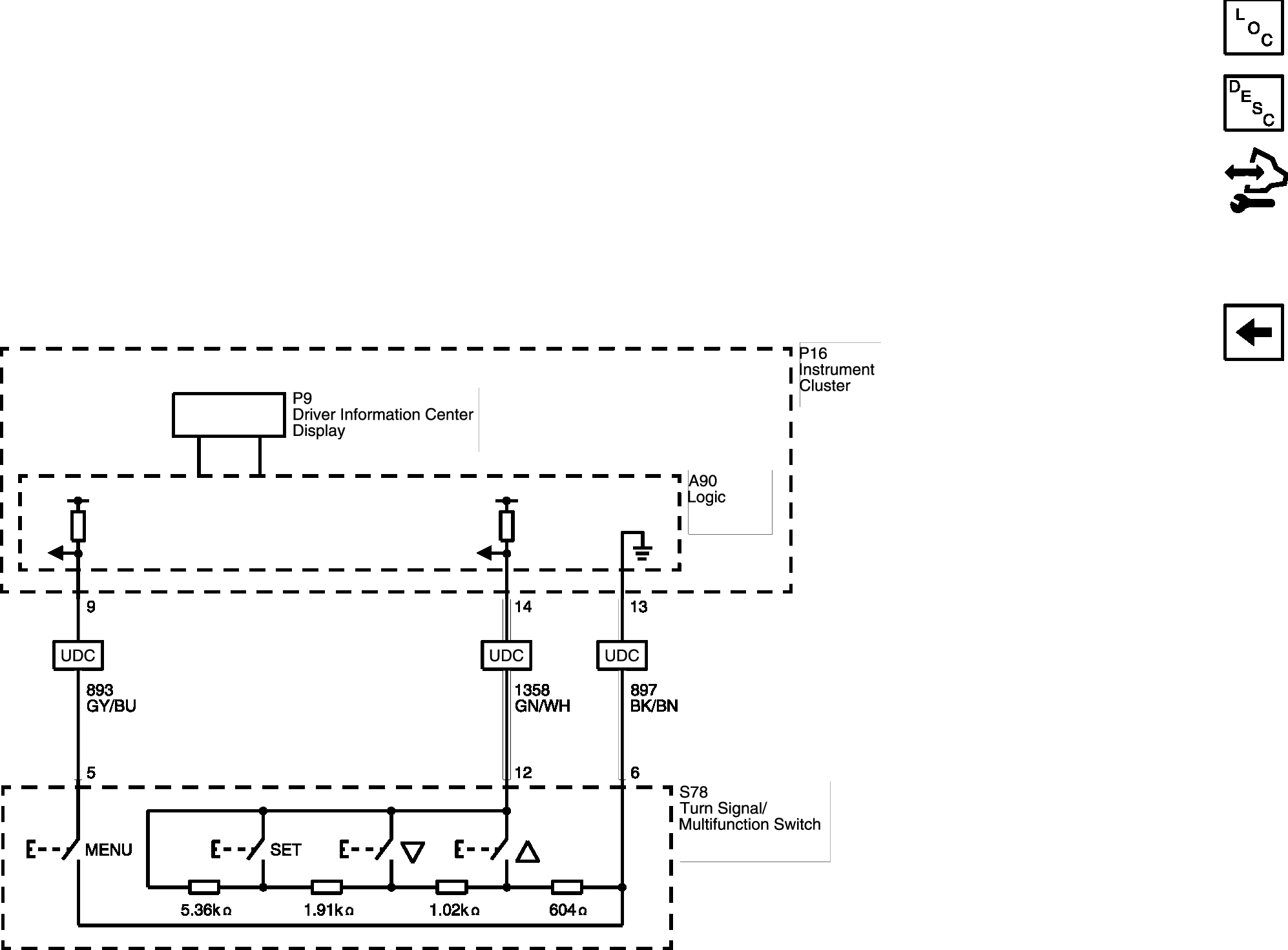

Driver Information Center Controls (UDC)
Driver Information Center Controls (UDC)
Courtesy of GENERAL MOTORS COMPANY
Courtesy of GENERAL MOTORS COMPANY
