Powertrain Mount Balancing

WARNING: This page is about a different variant/trim than selected.

Air Cleaner Assembly - Remove - Air Cleaner Assembly Replacement
Engine Support Fixture - Install - Engine Support Fixture
Raise the vehicle. Lifting and Jacking the Vehicle
Courtesy of GENERAL MOTORS COMPANY

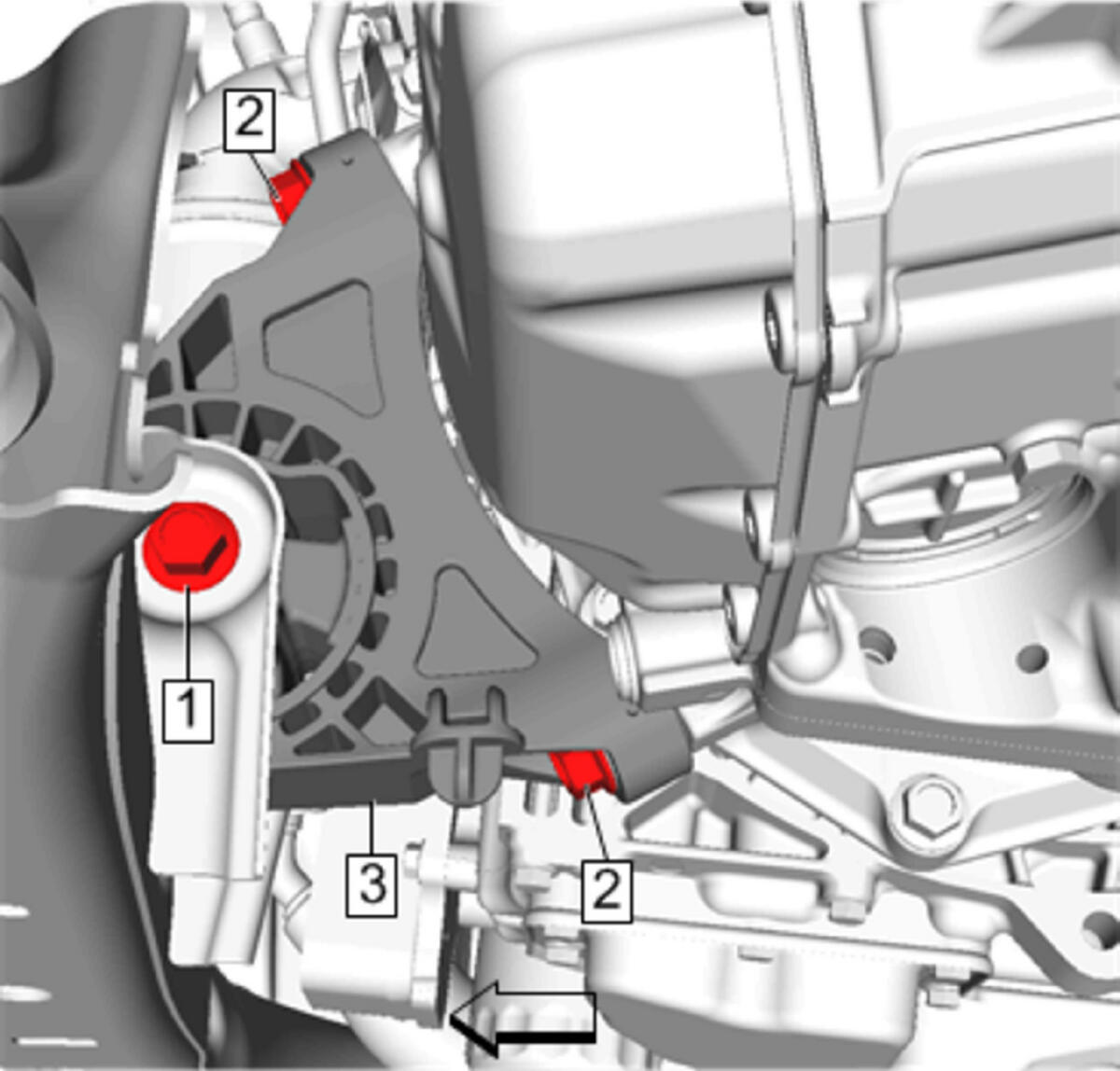

Rear Transmission Mount Through Bolt (1) - Loosen
Courtesy of GENERAL MOTORS COMPANY

Front Transmission Mount Through Bolt (1) - Loosen
Lower the vehicle.
Courtesy of GENERAL MOTORS COMPANY

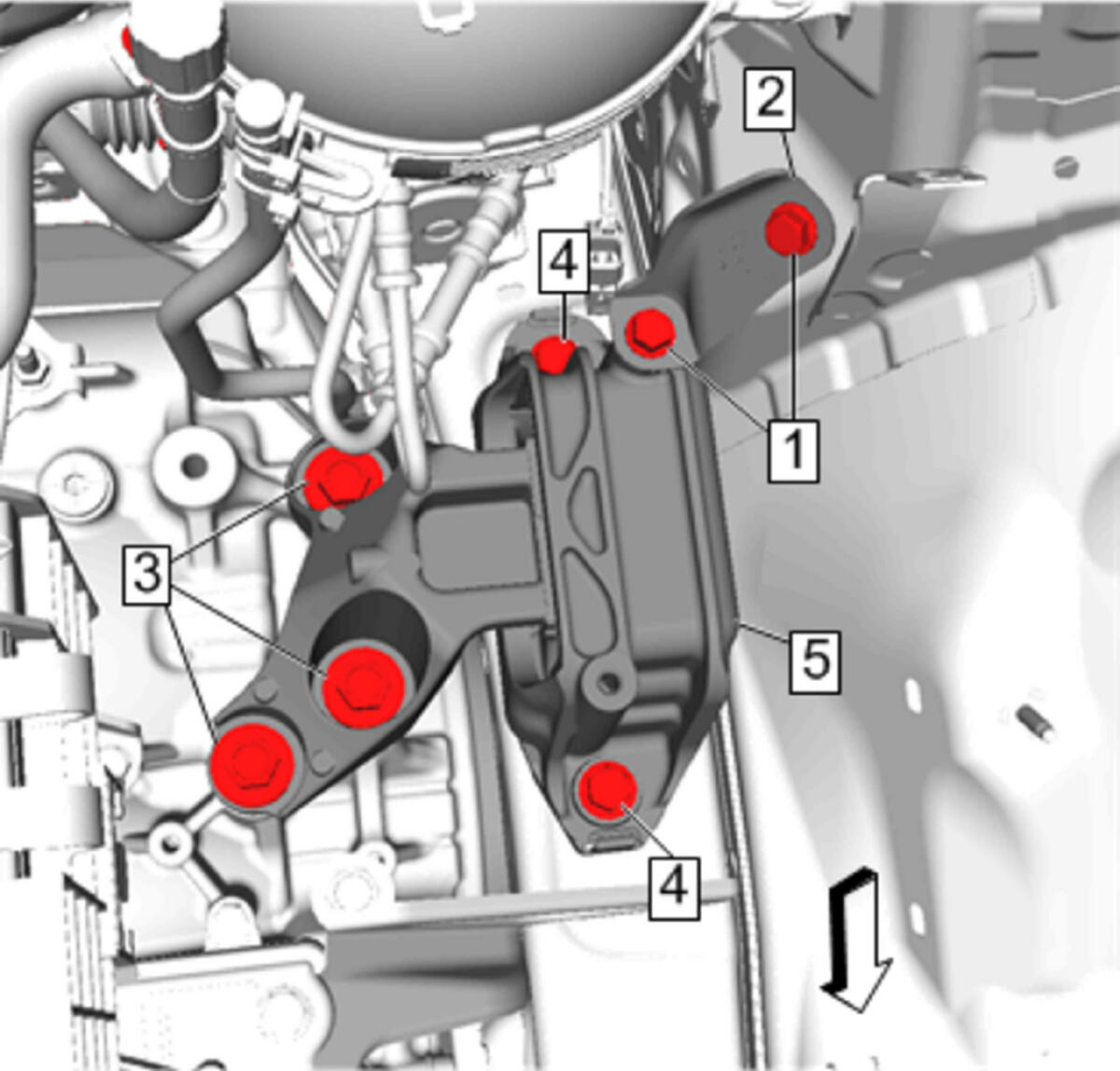

Transmission Mount Bolt (3) - Loosen [3x]
Courtesy of GENERAL MOTORS COMPANY

Engine Mount Fastener (2) - Loosen [3x]
Adjust the engine support fixture in order to allow a 1/8 inch gap between the mount and bracket.
Courtesy of GENERAL MOTORS COMPANY

CAUTION:
Refer to Fastener Caution .

Transmission Mount Bolt (3) - Tighten [3x] 100 N.m (74 lb ft)
Courtesy of GENERAL MOTORS COMPANY

Engine Mount Fastener (2) - Tighten [3x] 100 N.m (74 lb ft)
Engine Support Fixture - Remove - Engine Support Fixture
Shake the powertrain vigorously from front to rear and allow the powertrain to settle.
Raise the vehicle.
Courtesy of GENERAL MOTORS COMPANY

Front Transmission Mount Through Bolt (1) - Tighten - TRANSMISSION FRONT MOUNT REPLACEMENT
Courtesy of GENERAL MOTORS COMPANY

Rear Transmission Mount Through Bolt (1) - Tighten - TRANSMISSION FRONT MOUNT REPLACEMENT
Lower the vehicle.
Air Cleaner Assembly - Install - Air Cleaner Assembly Replacement
