Input and Output Speed Sensor Installation
WARNING: This page is about a different car, the 2023 GMC Acadia. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:

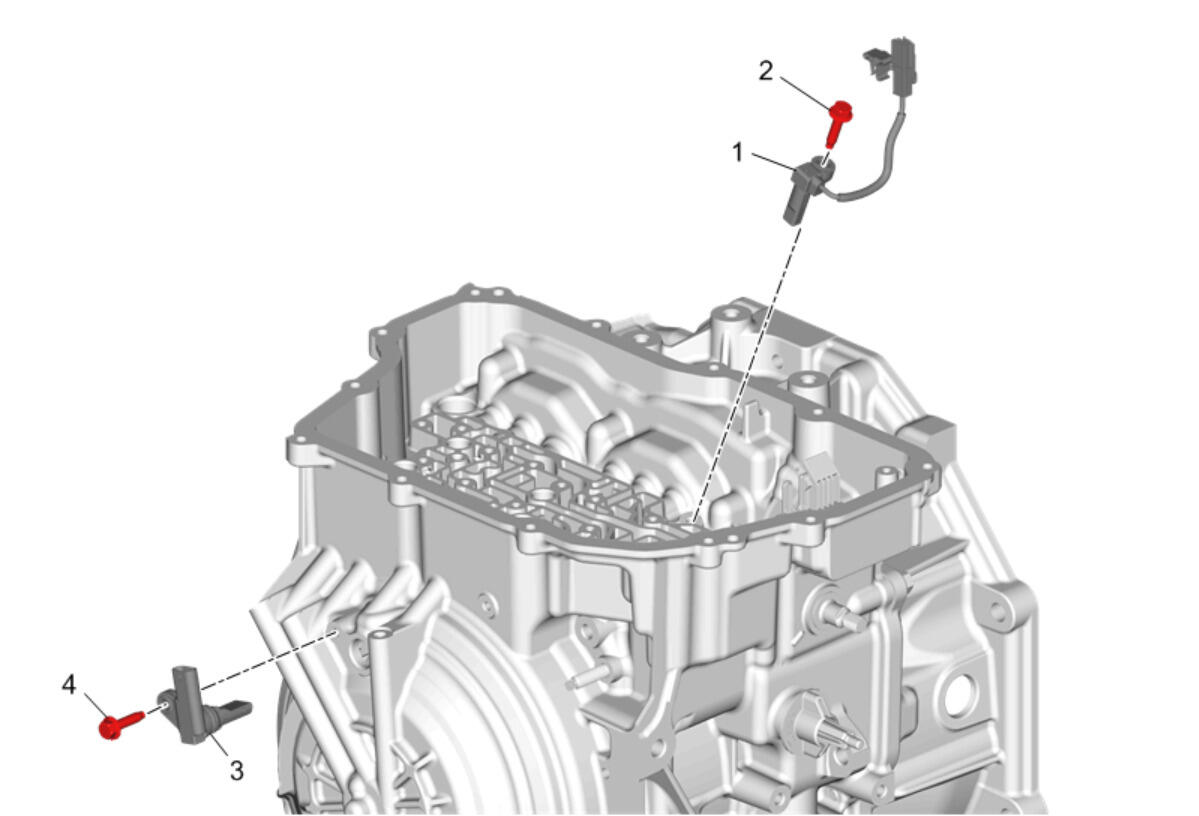

Callouts items in the following chart represent components shown in graphic above.
| Callout | Component Name |
|---|---|
| 1 | Automatic Transmission Output Speed Sensor |
| 2 | Automatic Transmission Output Speed Sensor Bolt
CAUTION:
Refer to Fastener Caution . Tighten 9 N.m (80 lb in) |
| 3 | Automatic Transmission Input Speed Sensor |
| 4 | Automatic Transmission Input Speed Sensor Bolt Tighten 9 N.m (80 lb in) |
