Removal Procedure

WARNING: This page is about a different car, the 2023 GMC Acadia. However, it is still accessible from the selected car via links, so may be relevant.
  1. GM4375413Courtesy of GENERAL MOTORS COMPANY

    Drive Sprocket Thrust Washer (1) - Remove

  2. Drive Sprocket Thrust Washer (2) - Remove
    3. NOTE:

    The driven sprocket (3) ball bearing inner race has a slight interference fit with the case. Pull straight up to ease removal.

  3. Remove the driven sprocket (3), drive sprocket (5), and drive link (4) as an assembly.
    4. NOTE:

    The driven sprocket (3) bearing may be stuck to the driven sprocket.

  4. Driven Sprocket Bearing (6) - Remove
  5. GM4419355Courtesy of GENERAL MOTORS COMPANY

    Park Gear (1) - Remove

  6. Output Sun Gear Thrust Bearing (2) - Remove
  7. Output Carrier Transfer Drive Gear Hub (3) - Remove
  8. Output Sun Gear Thrust Bearing (4) - Remove

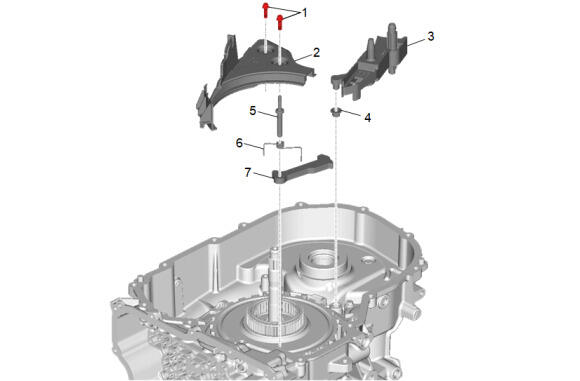

  9. GM4375420Courtesy of GENERAL MOTORS COMPANY

    Front Differential Carrier Baffle Bolt (1) - Remove [2x]

  10. Front Differential Carrier Baffle (2) - Remove
  11. Drive Link Lubricant Scoop (3) - Remove
  12. Drive Link Lubricant Fluid Seal (4) - Remove
  13. Park Pawl Shaft (5) - Remove
  14. Park Pawl (6) - Remove
  15. Park Pawl Spring (7) - Remove
