Mode Valve Position Switch and Parking Servo Piston Switch Disassemble
WARNING: This page is about a different car, the 2023 GMC Acadia. However, it is still accessible from the selected car via links, so may be relevant.
 Courtesy of GENERAL MOTORS COMPANY
|
NOTE:

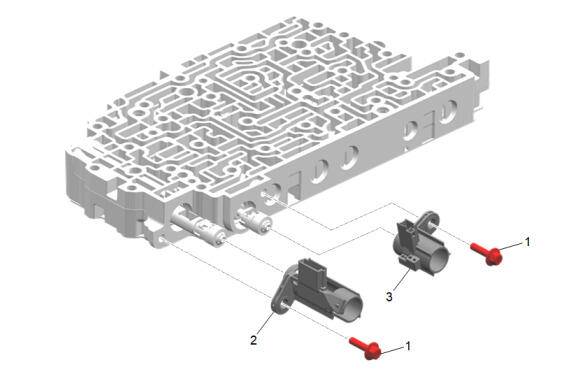

Callouts items in the following chart represent components shown in graphic above.
Mode Valve Position Switch and Parking Servo Piston Switch Disassemble
| Callout |
Component Name |
| 1 |
Control Valve Solenoid Body Bolt [2x] |
| 2 |
Park Servo Piston Switch |
| 3 |
Mode Valve Position Switch |
