Control Valve Body Plate Disassemble
WARNING: This page is about a different car, the 2023 GMC Acadia. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:

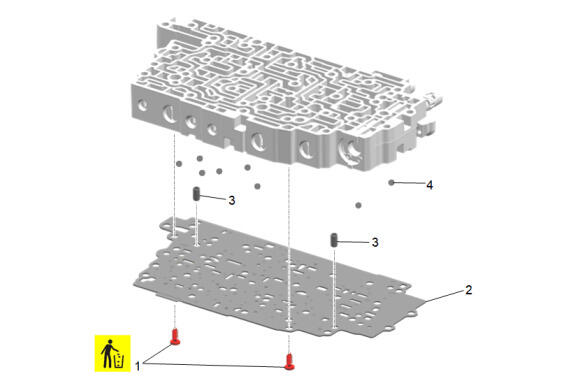

Callouts items in the following chart represent components shown in graphic above.
Control Valve Body Plate Disassemble
| Callout | Component Name |
|---|---|
| 1 | Control Valve Body Spacer Plate Retainer [2x] |
| 2 | Control Valve Body Spacer Plate Procedure Remove and DISCARDthe spacer plate. |
| 3 | Control Valve Body Locating Pin [2x] |
| 4 | Control Valve Body Ball Check Valve [8x] |
