Mode Valve Position Switch and Parking Servo Piston Switch Assemble
WARNING: This page is about a different car, the 2023 GMC Acadia. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:

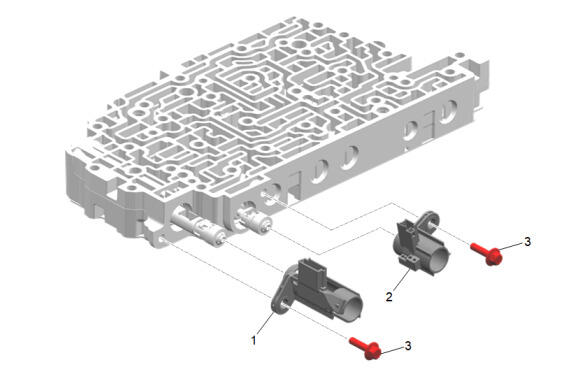

Callouts items in the following chart represent components shown in graphic above.
Mode Valve Position Switch and Parking Servo Piston Switch Assemble
| Callout | Component Name |
|---|---|
| 1 | Park Servo Piston Switch |
| 2 | Mode Valve Position Switch |
| 3 | Control Valve Solenoid Body Bolt [2x]
CAUTION:
Refer to Fastener Caution . Tighten 9 N.m (80 lb in) |
