X410 Body Harness to Left Tail Lamp Assembly Harness (RHD+Holden)
WARNING: This page is about a different car, the 2021 GMC Acadia. However, it is still accessible from the selected car via links, so may be relevant.
 Courtesy of GENERAL MOTORS COMPANY
|
- |

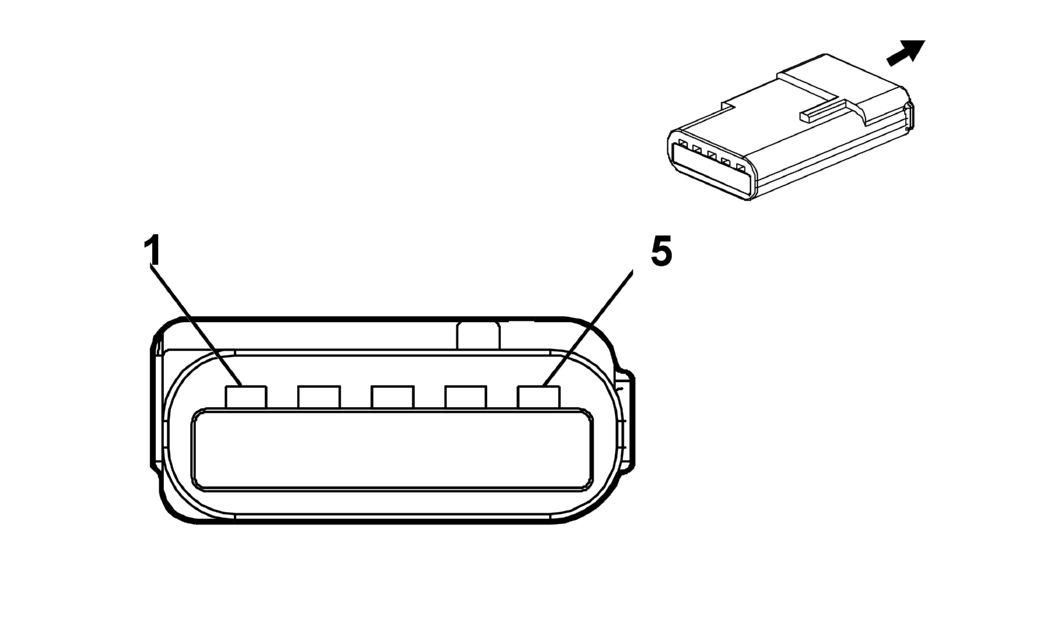

Connector Part Information
- Harness Type: Body
- OEM Connector: SRVPB-B04-S
- Service Connector: 19371244
- Description: 5 - Way F 1.2 Series, Sealed (NA)
|
Connector Part Information
- Harness Type: Left Tail Lamp Assembly
- OEM Connector: Not Available
- Service Connector: Service by Harness - See Part Catalog
- Description: 5 - Way M (NA)
|
Terminal Part Information
| Terminal Type ID |
Terminated Lead |
Diagnostic Test Probe |
Terminal Removal Tool |
| I |
Not required |
J-35616-16 (LT GN) |
No Tool Required |
| II |
Not required |
J-35616-17 (LT GN) |
No Tool Required |
| Pin |
Size |
Color |
Circuit |
Terminal Type ID |
Option |
Function |
Pin |
Size |
Color |
Circuit |
Terminal Type ID |
Option |
| 1 |
0.75 |
BK |
1350 |
I |
- |
Ground |
1 |
0.75 |
BK |
1350 |
II |
- |
| 2 |
0.5 |
GY/YE |
7542 |
I |
- |
Left Rear Stop Lamp Control |
2 |
0.5 |
GY/YE |
7542 |
II |
- |
| 3 |
- |
- |
- |
- |
- |
Not Occupied |
3 |
- |
- |
- |
- |
- |
| 4 |
0.5 |
VT/GY |
709 |
I |
- |
Left Park Lamp Control |
4 |
0.5 |
VT/GY |
709 |
II |
- |
| 5 |
0.75 |
BU/WH |
1334 |
I |
- |
Left Rear Turn Signal Lamp Control 2 |
5 |
0.75 |
BU/WH |
1334 |
II |
- |
