X201 Instrument Panel Harness to Body Harness (GMC)

WARNING: This page is about a different car, the 2021 GMC Acadia. However, it is still accessible from the selected car via links, so may be relevant.

Courtesy of GENERAL MOTORS COMPANY	Courtesy of GENERAL MOTORS COMPANY

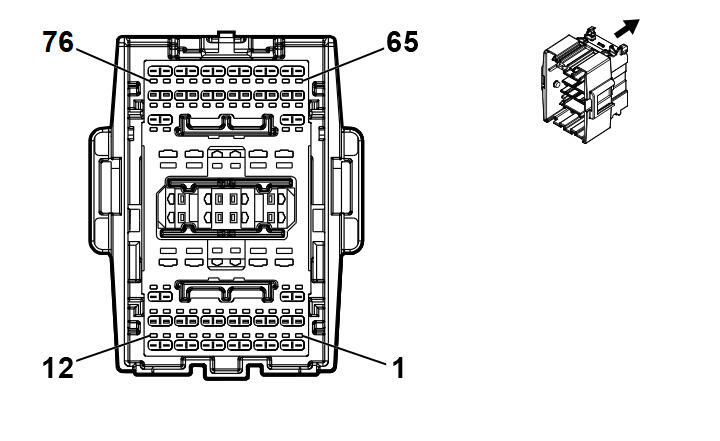

Connector Part Information Harness Type: Instrument Panel OEM Connector: 6098-8758 Service Connector: 84581287 Description: 76 - Way F 1.2, 1.5, 2.8 YESC Series (BK)	Connector Part Information Harness Type: Body OEM Connector: 6098-8817 Service Connector: 13526160 Description: 76 - Way M 1.2 MCON-CB, 1.5, 2.8 YESC Series (BK)

Terminal Part Information

Terminal Type ID	Terminated Lead	Diagnostic Test Probe	Terminal Removal Tool
I	13575708	J-35616-2A (GY)	J-38125-557
II	13575735	J-35616-12 (BU)	J-38125-215A
III	84962855	J-35616-4A (PU)	J-38125-11A
IV	Not required	J-35616-4A (PU)	J-38125-11A
V	13578908	J-35616-5 (PU)	J-38125-11A
VI	84616651	J-35616-13 (BU)	J-38125-215A
VII	84888592	J-35616-5 (PU)	J-38125-11A
VIII	85119177	J-35616-3 (GY)	J-38125-553

Pin	Size	Color	Circuit	Terminal Type ID	Option	Function	Pin	Size	Color	Circuit	Terminal Type ID	Option
1	0.35	VT/BU	3263	II	-	Logistics Mode Relay Open Control	1	0.35	VT/BU	3263	VI	-
2	0.35	GY/VT	3264	II	-	Logistics Mode Relay Close Control	2	0.35	GY/VT	3264	VI	-
3	0.35	GY/GN	4083	II	-	Retained Accessory Power Relay 2 Coil Control	3	0.35	GY/GN	4083	VI	-
4	0.35	BU	2500	II	-	High Speed GMLAN Serial Data [+] 1	4	0.35	BU	2500	VI	-
5	0.35	WH	2501	II	-	High Speed GMLAN Serial Data [-] 1	5	0.35	WH	2501	VI	-
6	0.5 0.35	GN/WH GN/WH	24 24	II II	DD8/DRZ -DD8-DRZ	Backup Lamp Control Backup Lamp Control	6	0.5	GN/WH	24	VI	-
7	0.35	BK/WH	651	II	-	Signal Ground	7	0.35	BK/WH	651	VI	-
8	0.35	WH/GY	3936	II	-	High Speed GMLAN Serial Data [-] 8	8	0.35	WH/GY	3936	VI	-
9	0.35	BU/GY	3935	II	-	High Speed GMLAN Serial Data [+] 8	9	0.35	BU/GY	3935	VI	-
10	-	-	-	-	-	Not Occupied	10	-	-	-	-	-
11	0.35	GY	156	II	-	Courtesy Lamp Switch Signal	11	0.35	GY	156	VI	-
12	0.35	BU/GY	4672	II	-	Dome Lamp Off Indicator Control	12	0.35	BU/GY	4672	VI	-
13	-	-	-	-	-	Not Occupied	13	-	-	-	-	-
14	0.5	RD/GN	3140	II	-	Battery Positive Voltage	14	0.5	RD/GN	3140	VI	-
15	0.35	BK/BU	7566	II	-	Windshield Temperature and Inside Moisture Sensor Low Reference	15	0.35	BK/BU	7566	VI	-
16	0.35	YE/BK	3192	II	-	Rear Air Temperature Door Actuator Control 4	16	0.35	YE/BK	3192	VI	-
17	0.35	BU/VT	3191	II	-	Rear Air Temperature Door Actuator Control 3	17	0.35	BU/VT	3191	VI	-
18	0.35	GY	3190	II	-	Rear Air Temperature Door Actuator Control 2	18	0.35	GY	3190	VI	-
19	0.35	WH/GN	3189	II	-	Rear Air Temperature Door Actuator Control 1	19	0.35	WH/GN	3189	VI	-
20	0.35	GY/BK	3188	II	-	Rear Mode Door Actuator Control 4	20	0.35	GY/BK	3188	VI	-
21	0.35	BU/BK	3187	II	-	Rear Mode Door Actuator Control 3	21	0.35	BU/BK	3187	VI	-
22	0.35	GN/BK	3186	II	-	Rear Mode Door Actuator Control 2	22	0.35	GN/BK	3186	VI	-
23	0.35	YE/BK	3185	II	-	Rear Mode Door Actuator Control 1	23	0.35	YE/BK	3185	VI	-
24	0.35	GN/WH	5729	II	-	Rear Mode Door Actuator Control	24	0.35	GN/WH	5729	VI	-
25	0.35	BN	404	II	-	Upper Duct Air Temperature Sensor Signal	25	0.35	BN	404	VI	-
26	0.35	BN/BK	405	II	-	Lower Duct Air Temperature Sensor Signal	26	0.35	BN/BK	405	VI	-
27	0.35	GN/BU	761	II	-	Blower Speed Feedback Signal	27	0.35	GN/BU	761	VI	-
28	0.5	WH/BN	6815	II	-	Inadvertent Load Control	28	0.5	WH/BN	6815	VI	-
29	-	-	-	-	-	Not Occupied	29	-	-	-	-	-
30	3	BN/BK	4629	IV	-	DC/AC Inverter Control	30	3	BN/BK	4629	V	-
31 - 32	-	-	-	-	-	Not Occupied	31 - 32	-	-	-	-	-
33	1	RD/WH	3440	III	-	Battery Positive Voltage	33	1	RD/WH	3440	VII	-
34	0.5	RD/GN	3840	III	-	Battery Positive Voltage	34	0.75	RD/GN	3840	VII	-
35 - 37	-	-	-	-	-	Not Occupied	35 - 37	-	-	-	-	-
38	0.75	YE/BK	117	I	IOR+UQF	Right Front Speaker [-] Control 1	38	0.75	YE/BK	117	VIII	-
39	0.75	BU/YE	1960	I	-	Front Center Speaker [-] Control	39	1	BU/YE	1960	VIII	-
40	0.75	YE/WH	1860	I	-	Front Center Speaker [+] Control	40	1	YE/WH	1860	VIII	-
41	-	-	-	-	-	Not Occupied	41	-	-	-	-	-
42	0.75	YE	200	I	IOR+UQF	Right Front Speaker 1 [+] Control	42	0.75	YE	200	VIII	-
43	2.5	RD/BN	1440	III	-	Battery Positive Voltage	43	2.5	RD/BN	1440	VII	-
44	3	BK/WH	1551	IV	-	Signal Ground	44	3	BK/WH	1551	V	-
45	0.35	GY	157	I	-	Interior Lamp Control	45	0.35	GY	157	VIII	-
46 - 48	-	-	-	-	-	Not Occupied	46 - 48	-	-	-	-	-
49	0.35	GY/BK	7215	II	-	Ethernet Bus 6 [+]	49	0.35	GY/BK	7215	VI	-
50	0.35	BN/BK	7214	II	-	Ethernet Bus 6 [-]	50	0.35	BN/BK	7214	VI	-
51	0.35 0.35	WH/GN BU/BK	1776 3009	II II	IOR+UQF IOU+UQF	Active Noise Cancellation Microphone 4 Low Reference Active Noise Cancellation Microphone 2 Feedback Signal	51	0.35 0.35	WH/GN BU/BK	1776 3009	VI VI	IOR+UQF IOU+UQF
52	0.35 0.35	VT/BU BU/YE	1775 3006	II II	IOR+UQF IOU+UQF	Active Noise Cancellation Microphone 4 Signal Active Noise Cancellation Microphone 2 Signal	52	0.35 0.35	VT/BU BU/YE	1775 3006	VI VI	IOR+UQF IOU+UQF
53 - 56	-	-	-	-	-	Not Occupied	53 - 56	-	-	-	-	-
57	0.35	BU/VT	3813	II	-	High Speed GMLAN Serial Data [+] 4	57	0.35	BU/VT	3813	VI	-
58	0.35	WH	3811	II	-	High Speed GMLAN Serial Data [-] 4	58	0.35	WH	3811	VI	-
59	0.35	GN/BK	3558	II	-	Passive Start Switch Signal 2	59	0.35	GN/BK	3558	VI	-
60	0.35	BK/GY	3559	II	-	Passive Start Switch 2 Low Reference	60	0.35	BK/GY	3559	VI	-
61	0.5	BN/BK	3552	II	-	Interior Passive Entry Antenna 1 High Signal	61	0.35	BN/BK	3552	VI	-
62	0.5	WH	3553	II	-	Interior Passive Entry Antenna 1 Low Signal	62	0.35	WH	3553	VI	-
63 - 65	-	-	-	-	-	Not Occupied	63 - 65	-	-	-	-	-
66	0.35	GY/GN	1102	II	-	Low Speed GMLAN Serial Data 2	66	0.35	GY/GN	1102	VI	-
67	0.35	BU	2500	II	-	High Speed GMLAN Serial Data [+] 1	67	0.35	BU	2500	VI	-
68	0.35	WH	2501	II	-	High Speed GMLAN Serial Data [-] 1	68	0.35	WH	2501	VI	-
69	0.35	GN/GY	6135	II	-	Body Control Module LIN Bus 4	69	0.35	GN/GY	6135	VI	-
70	0.35	VT/BK	3	II	-	Run/Crank Ignition 1 Voltage	70	0.35	VT/BK	3	VI	-
71	0.35	VT/YE	4	II	-	Accessory Ignition Voltage	71	0.35	VT/YE	4	VI	-
72	0.35	BN/WH	781	II	-	Driver Door Lock Switch Unlock Signal	72	0.35	BN/WH	781	VI	-
73	0.35	BN/YE	780	II	-	Driver Door Lock Switch Lock Signal	73	0.35	BN/YE	780	VI	-
74	0.35	WH/BU	5986	II	-	Serial Data Communication Enable	74	0.35	WH/BU	5986	VI	-
75	0.5	WH/YE	7557	II	-	Interior Door Handle Accent Lighting Control	75	0.35	WH/YE	7557	VI	-
76	-	-	-	-	-	Inadvertent Load Control	76	0.5	WH/BN	6815	VI	-
