Rear Bumper Upper Fascia Replacement

WARNING: This page is about a different car, the 2021 GMC Acadia. However, it is still accessible from the selected car via links, so may be relevant.

Courtesy of GENERAL MOTORS COMPANY

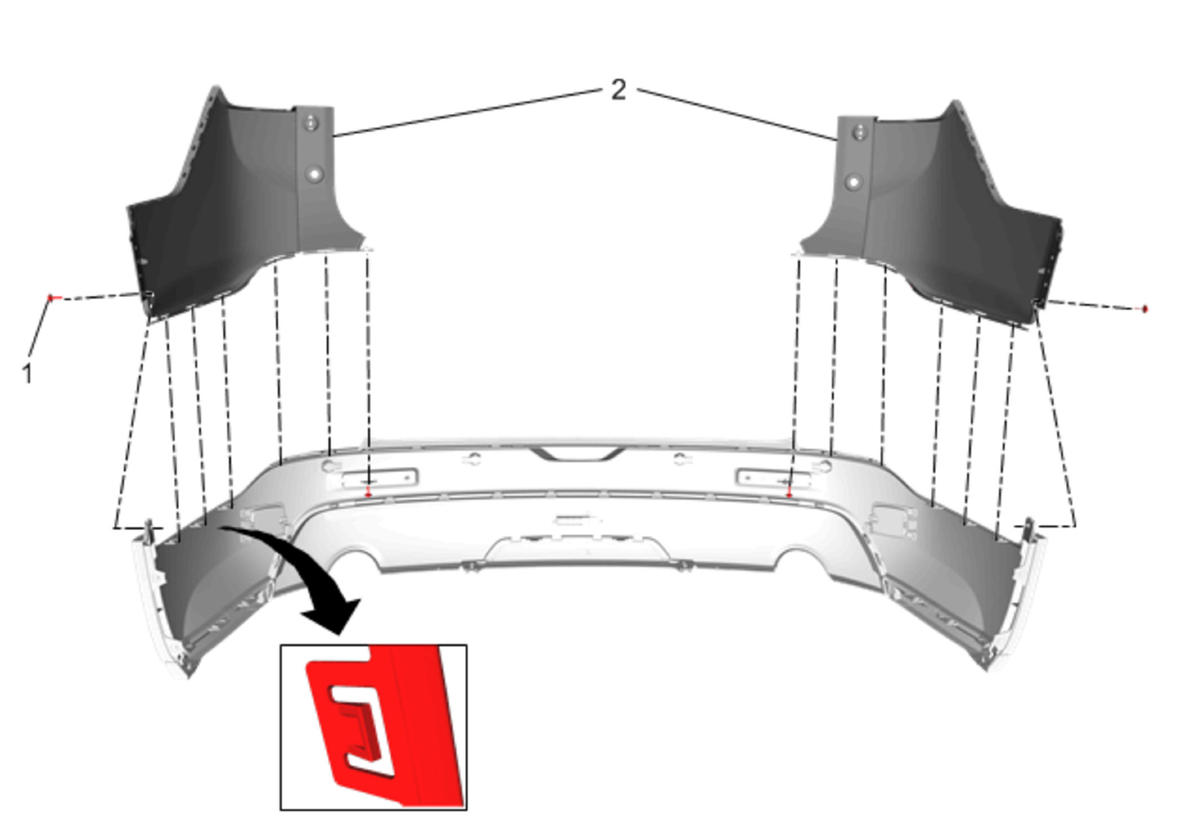

NOTE: Callouts in the following chart represent components shown in graphic above.

Callout	Component Name
Preliminary Procedure Rear Bumper Fascia Removal and Installation
1	Rear Bumper Upper Fascia Bolt [4x] CAUTION: Refer to Fastener Caution . Tighten 2.5 N.m (22 lb in)
2	Rear Bumper Upper Fascia Procedure Reposition the wiring harness. Using a flat-bladed tool, depress the tabs and pull on the fascia at the same time to gradually remove the upper fascia from the lower fascia. Transfer components as necessary.

Callout

Component Name

Preliminary Procedure
Rear Bumper Fascia Removal and Installation

Rear Bumper Upper Fascia Bolt [4x]

CAUTION:

Refer to Fastener Caution .

Tighten
2.5 N.m (22 lb in)

Rear Bumper Upper Fascia

Procedure

Reposition the wiring harness.
Using a flat-bladed tool, depress the tabs and pull on the fascia at the same time to gradually remove the upper fascia from the lower fascia.
Transfer components as necessary.
