X117 Engine Harness to Engine Oil Level Switch Harness (-LCV)

Courtesy of GENERAL MOTORS COMPANY	Courtesy of GENERAL MOTORS COMPANY

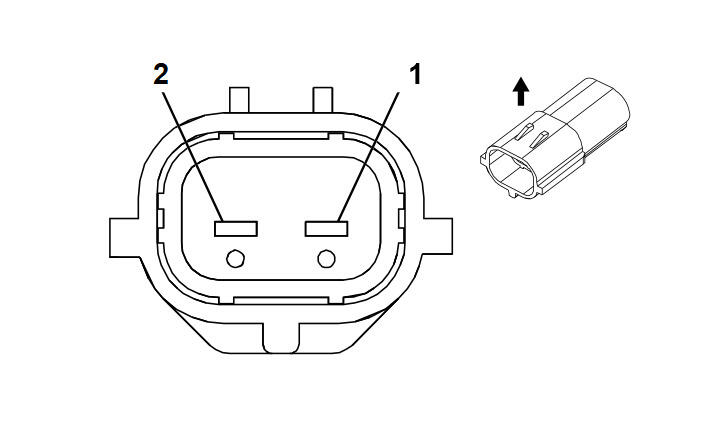

Connector Part Information Harness Type: Engine OEM Connector: 10010337 Service Connector: 13587326 Description: 2 <p01>-Way F 1.2 Multilock Series, Sealed (BK)	Connector Part Information Harness Type: Engine Oil Level Switch OEM Connector: Not Available Service Connector: Service by Harness - See Part Catalog Description: 2 <p01>-Way M (BK)

Terminal Part Information

Terminal Type ID	Terminated Lead	Diagnostic Test Probe	Terminal Removal Tool
I	Not required	J-35616-16 (LT GN)	No Tool Required
II	Not required	J-35616-17 (LT GN)	No Tool Required

Pin	Size	Color	Circuit	Terminal Type ID	Option	Function	Pin	Size	Color	Circuit	Terminal Type ID	Option
1	0.5	BN/GN	1174	I	-	Oil Level Switch Signal	1	0.5	BN/GN	1174	II	-
2	0.5 0.5 0.5	BK BK/WH BK/WH	550 351 451	I I I	LGX+GMC LGX+HOLDEN LSY	Ground Signal Ground Signal Ground	2	0.5 0.5 0.5	BK BK/WH BK/WH	550 351 451	II II II	LGX+GMC LGX+HOLDEN LSY
