Installation Procedure

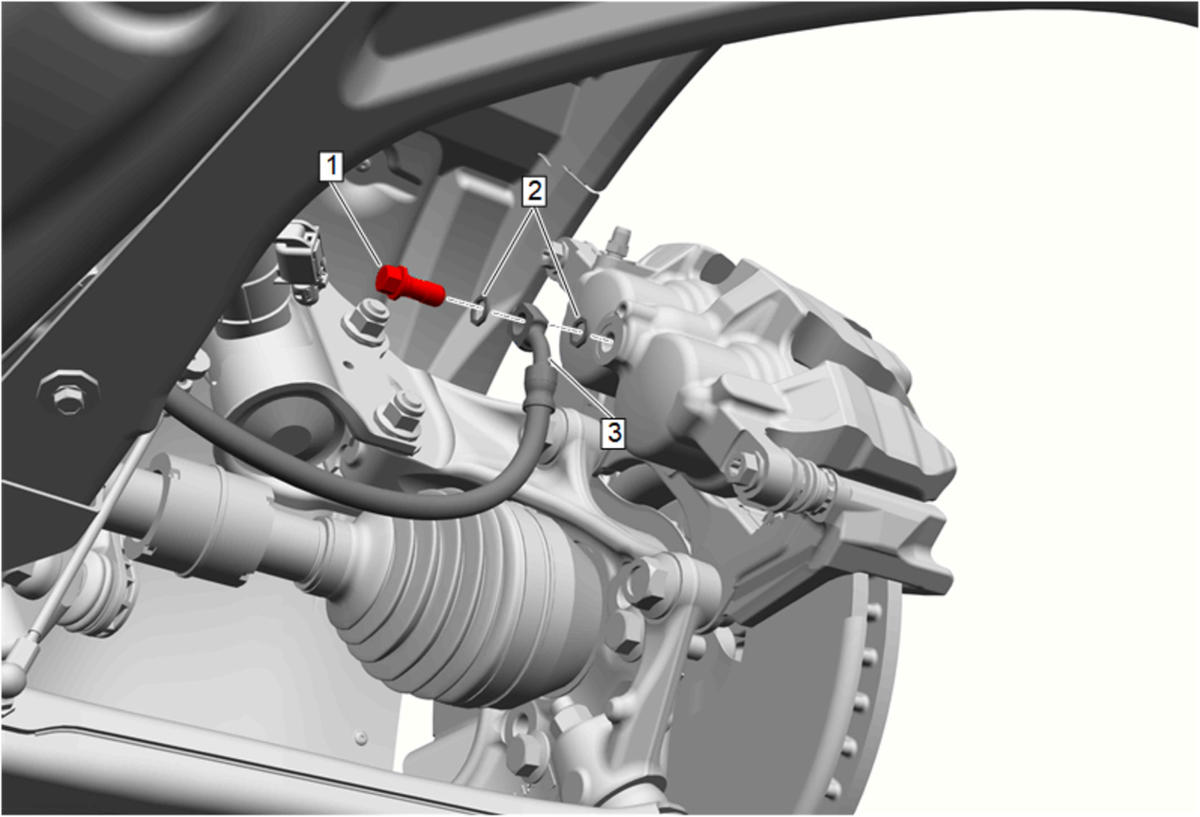

  1. GM5205890Courtesy of GENERAL MOTORS COMPANY

    Front Brake Hose - Install

  2. Brake Hose Fitting Gasket (2) @ Brake Hose Fitting (3) - Install NEW [2x]
  3. GM4261516Courtesy of GENERAL MOTORS COMPANY
    CAUTION:

    Fastener Caution

    Brake Hose Fitting Bolt (1) - Install and tighten 44 N.m (32 lb ft)

  4. GM4289791Courtesy of GENERAL MOTORS COMPANY

    Brake HoseBracket Nut (1) - Install and tighten 9 N.m (80 lb in)

  5. GM4289790Courtesy of GENERAL MOTORS COMPANY

    Brake Pipe Fitting (1) - Install and tighten 18 N.m (13 lb ft)

  6. Connect the battery negative cable. Battery Negative Cable Disconnection and Connection
  7. Bleed the brake system. Hydraulic Brake System Bleeding (Pressure with JEO)
  8. Install the tire and wheel assembly. Tire and Wheel Removal and Installation
  9. Remove the support and lower the vehicle.
