Side Window Defogger Outlet Duct Replacement - Left Side

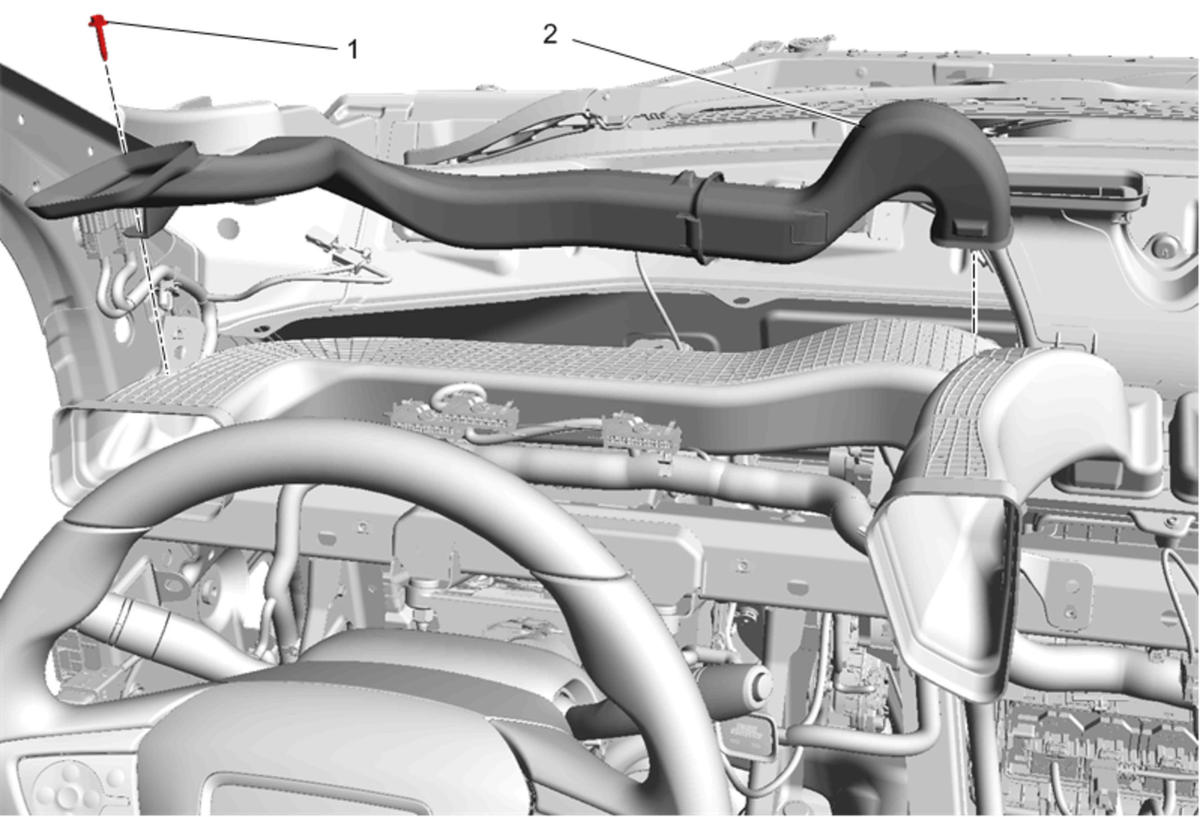

GM4373396Courtesy of GENERAL MOTORS COMPANY
Callout Component Name
Preliminary Procedure
Instrument Panel Assembly Replacement (GMC)
1 Instrument Panel Outer Air Outlet Duct Bolt
CAUTION:

Refer to Fastener Caution .


tighten
2.5 N.m (22 lb in)
2 Side Window Defogger Outlet Duct - Left Side
