Installation Procedure

WARNING: This page is about a different car, the 2023 GMC Acadia. However, it is still accessible from the selected car via links, so may be relevant.

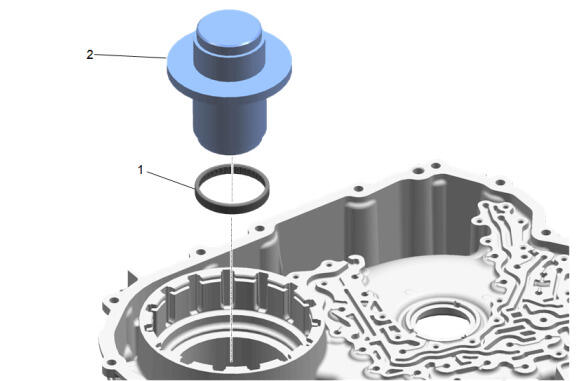

  1. GM5129331Courtesy of GENERAL MOTORS COMPANY

    Using DT-49831  Differential Bearing Remover/installer (2 Pinion Blue) (2) or DT-50087  Differential Bearing Remover/installer (4 Pinion Red) (2) to press in the front differential carrier bearing (1) until it stops against the housing.
