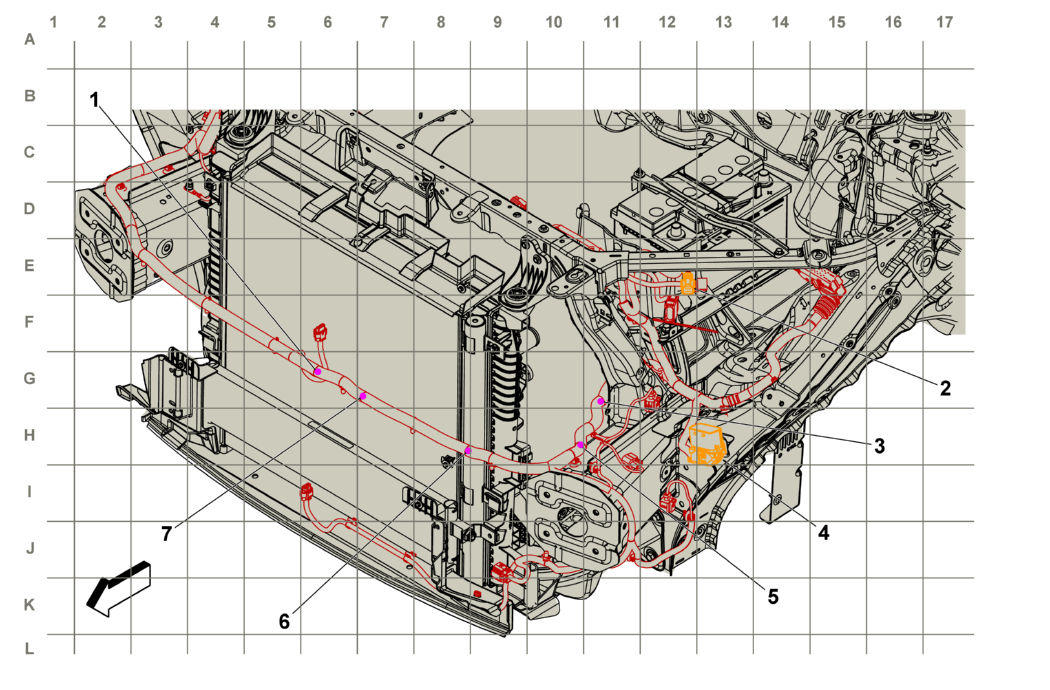

Forward Lamp Harness Routing (1 of 2)

GM4341505Courtesy of GENERAL MOTORS COMPANY
Items
1. J110
2. X110 Forward Lamp Harness to Left Headlamp Harness X110 Forward Lamp Harness to Left Headlamp Harness (GMC)
3. J106
4. X101 Body Harness to Forward Lamp Harness X101 Body Harness to Forward Lamp Harness (GMC)
5. J107 Forward Lamp Harness
6. J108 Forward Lamp Harness
7. J109
