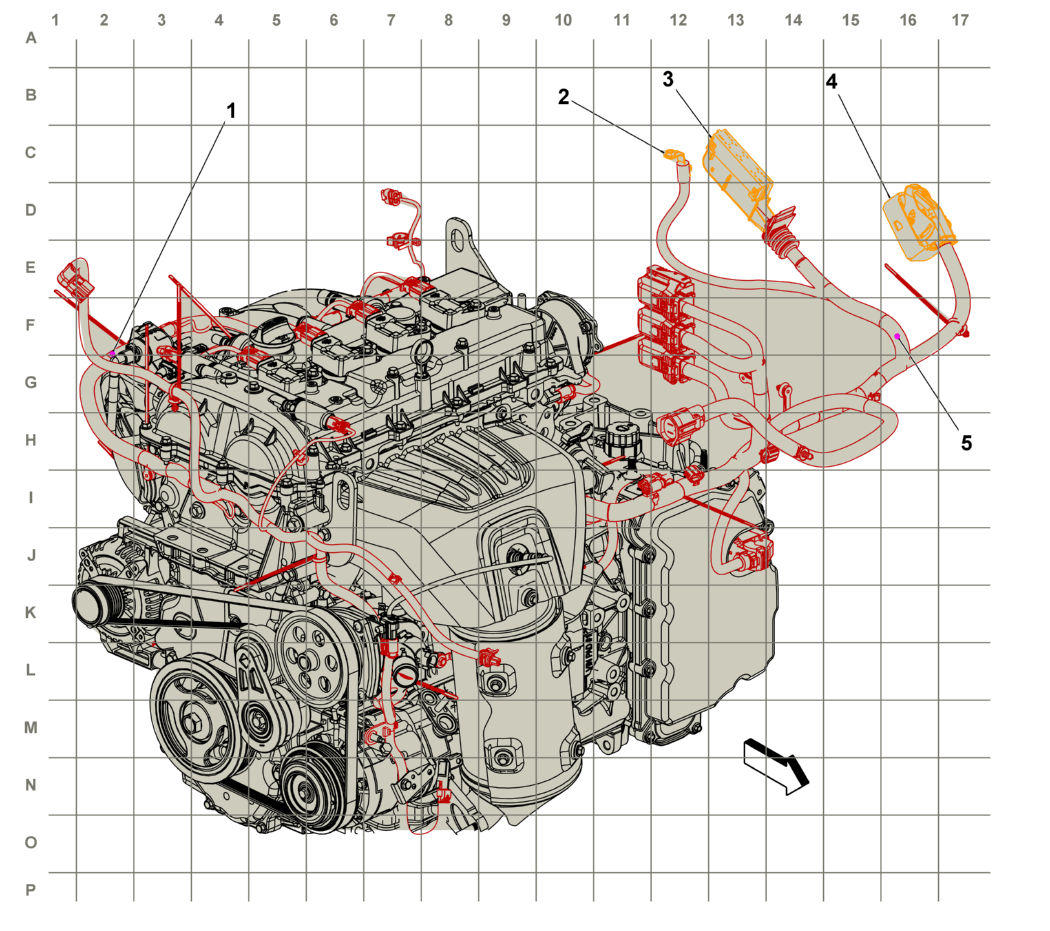

Engine Harness Routing - Right Front (LCV)

Courtesy of GENERAL MOTORS COMPANY

Items
1. J125 Engine Harness
2. X50D Fuse Block - Battery X50D Fuse Block - Battery X1 , or X50D Fuse Block - Battery X10 , or X50D Fuse Block - Battery X2 , or X50D Fuse Block - Battery X3 , or X50D Fuse Block - Battery X4 (LCV/LGX/LSY) , or X50D Fuse Block - Battery X5 , or X50D Fuse Block - Battery X6 , or X50D Fuse Block - Battery X7 (-LSY) , or X50D Fuse Block - Battery X8 (-LSY) , or X50D Fuse Block - Battery X9
3. X50A Fuse Block - Underhood X50A Fuse Block - Underhood X1 , or X50A Fuse Block - Underhood X2 , or X50A Fuse Block - Underhood X4 , or X50A Fuse Block - Underhood X5
4. X112 Engine Harness to Body Harness X112 Engine Harness to Body Harness
5. J135 Engine Harness (LCV)
