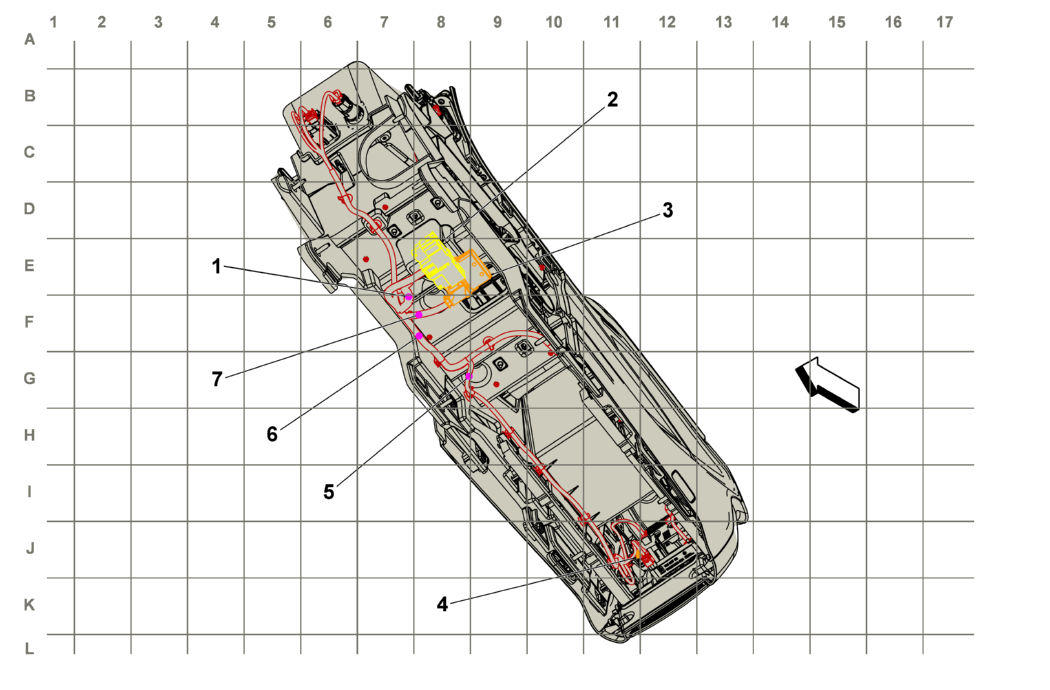

Center Console Harness Routing (1 of 2)
| Items |
|---|
| 1. J310 Console Harness |
| 2. X212 Instrument Panel Harness to Floor Console Harness X212 Floor Console Harness to Instrument Panel Harness (GMC) |
| 3. X307 Body Harness to Floor Console Harness X307 Floor Console Harness to Body Harness (GMC) |
| 4. X308 X308 Floor Console Harness to Rear Seat Entertainment Harness |
| 5. J317 Console Harness |
| 6. J314 Console Harness (KI6/KI7) |
| 7. J309 Console Harness |
