Front Bumper Fascia Center Support Replacement

Courtesy of GENERAL MOTORS COMPANY

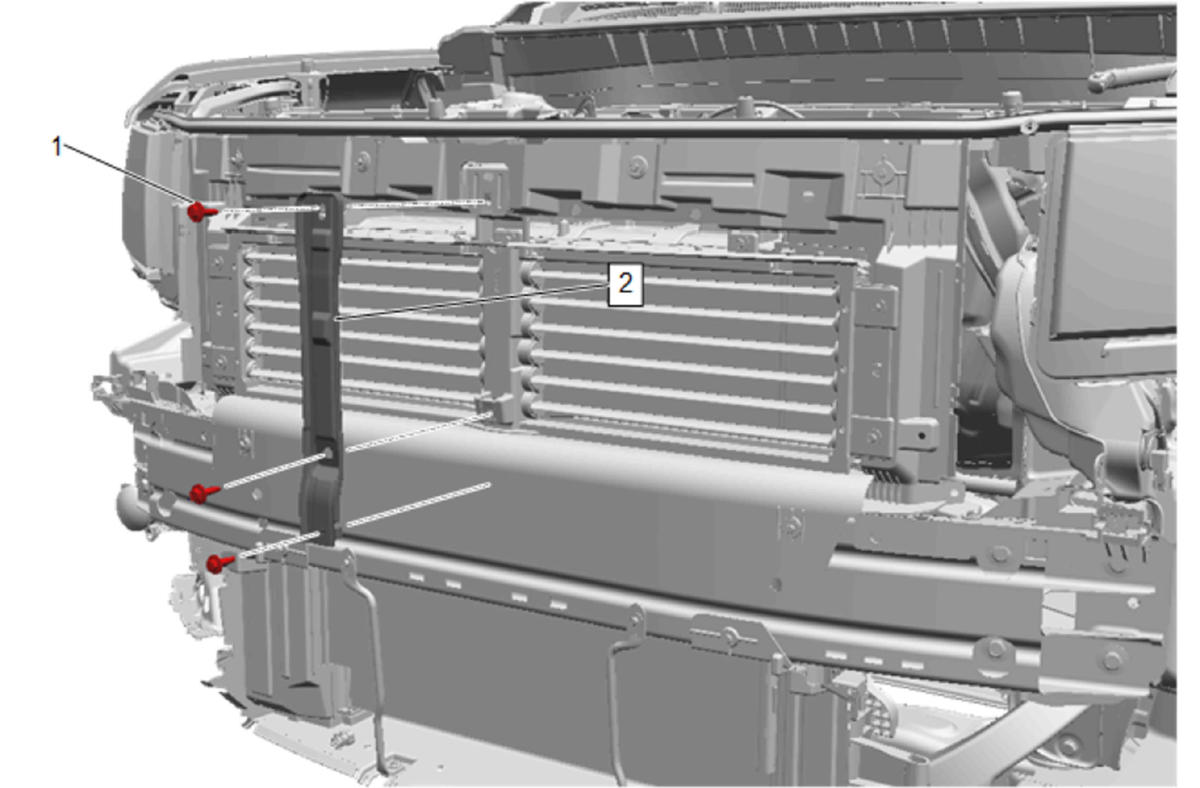

Callout	Component Name
Preliminary Procedure  Front Bumper Fascia Removal and Installation
1	Front Bumper Fascia Center Support Bolt[3x] CAUTION: Refer to Fastener Caution . Tighten  9N.m (80 lb in)
2	Front Bumper Fascia Center Support
