Liftgate Hinge Replacement

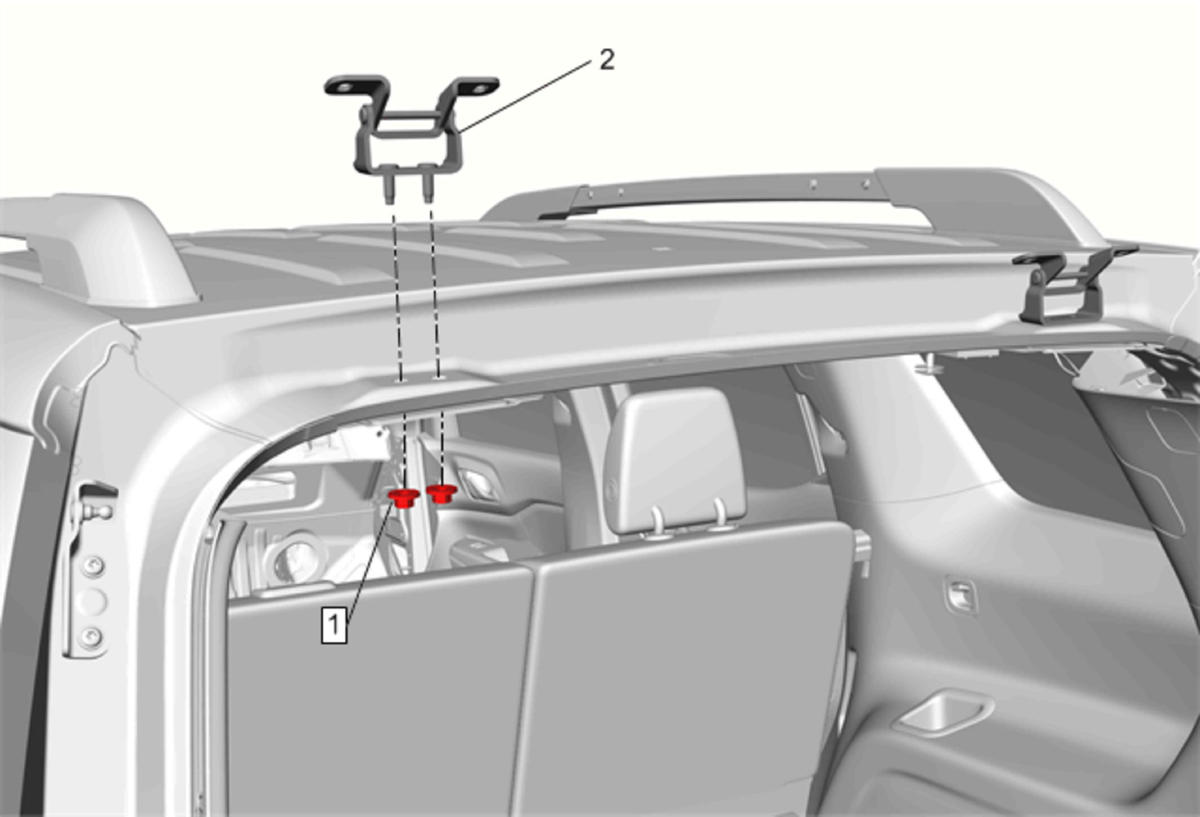

GM4355898Courtesy of GENERAL MOTORS COMPANY
Callout Component Name

Preliminary Procedures

  1. Liftgate Replacement .
  2. Lower the rear of the headliner to access the nuts. Headlining Trim Panel Replacement (With C3U) , or Headlining Trim Panel Replacement (Without C3U)
  3. Mark the position of the hinges with a grease pencil.
1 Liftgate Hinge Nut [2x]
CAUTION:

Refer to Fastener Caution .


Tighten
35 N.m (26 lb ft)
2 Liftgate Hinge
Procedure
Liftgate Adjustment
