Hood Primary Latch Release Cable Replacement

Courtesy of GENERAL MOTORS COMPANY

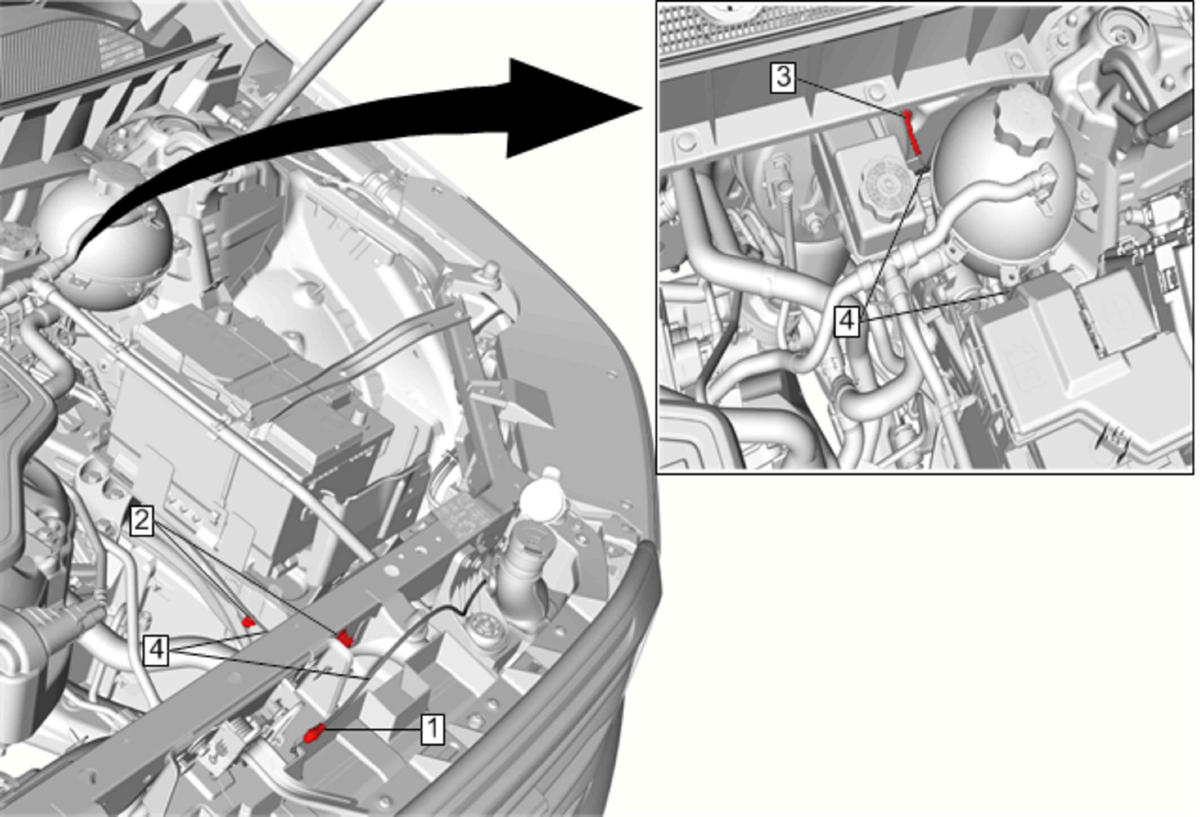

Callout	Component Name
Preliminary Procedure Intake Air Splash Shield Replacement
1	Hood Primary Latch Release Cable at Latch Procedure Disconnect the release cable from the hood primary latch.
2	Hood Primary Latch Release Cable Retainer [2x] Procedure Disconnect the hood release cable retainers from the hood release cable.
3	Hood Primary Latch Release Cable Grommet
4	Hood Primary Latch Release Cable Procedure Release the cable from the hood primary latch release cable handle. Attach mechanics wire to the cable to help remove cable from vehicle. Attach mechanics wire to the cable to help install cable to vehicle.
