Hood Front Weatherstrip Replacement

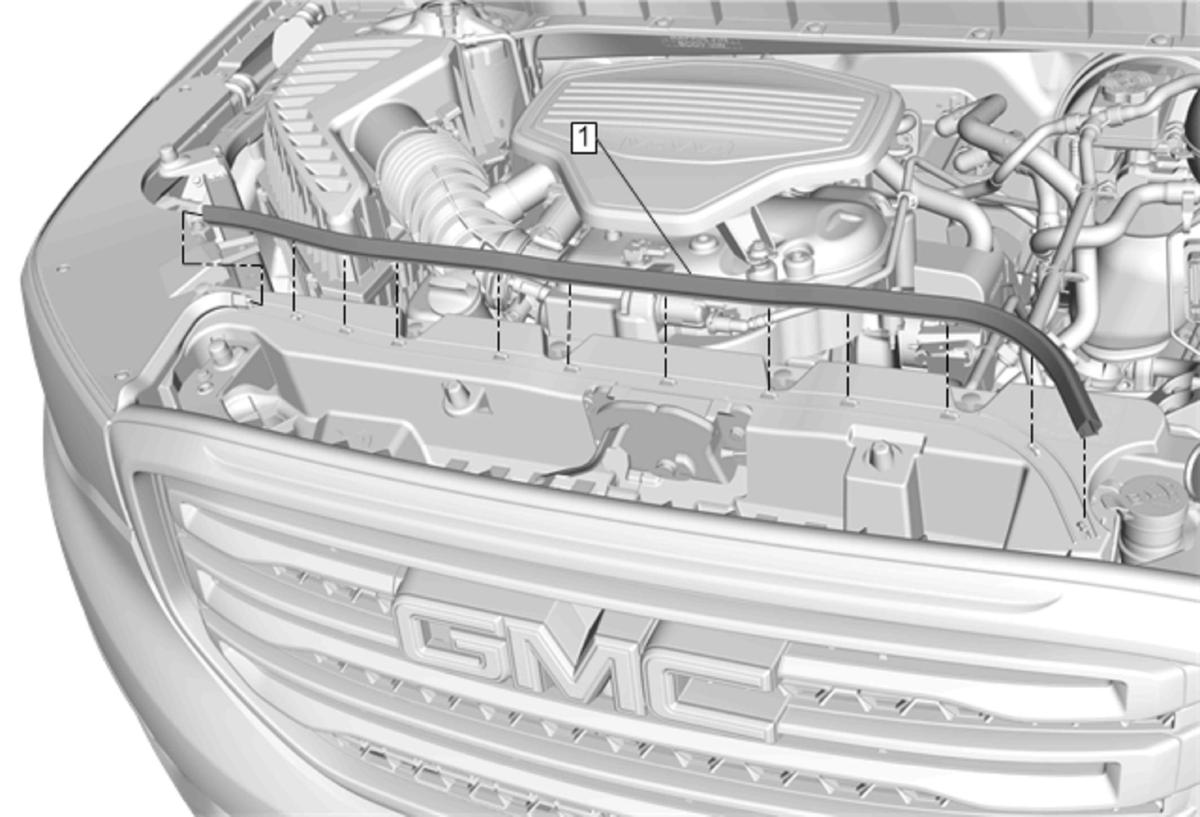

GM4355519Courtesy of GENERAL MOTORS COMPANY
Callout Component Name
1 Hood Front Weatherstrip
Procedure
The hood front weatherstrip is held in place with plastic retainers that are part of the intake air splash shield. Carefully pull the weatherstrip to the right/left to release from the retainers on the intake air splash shield.
