Hood Front Edge Weatherstrip Replacement
Hood Front Edge Weatherstrip Replacement
Courtesy of GENERAL MOTORS COMPANY

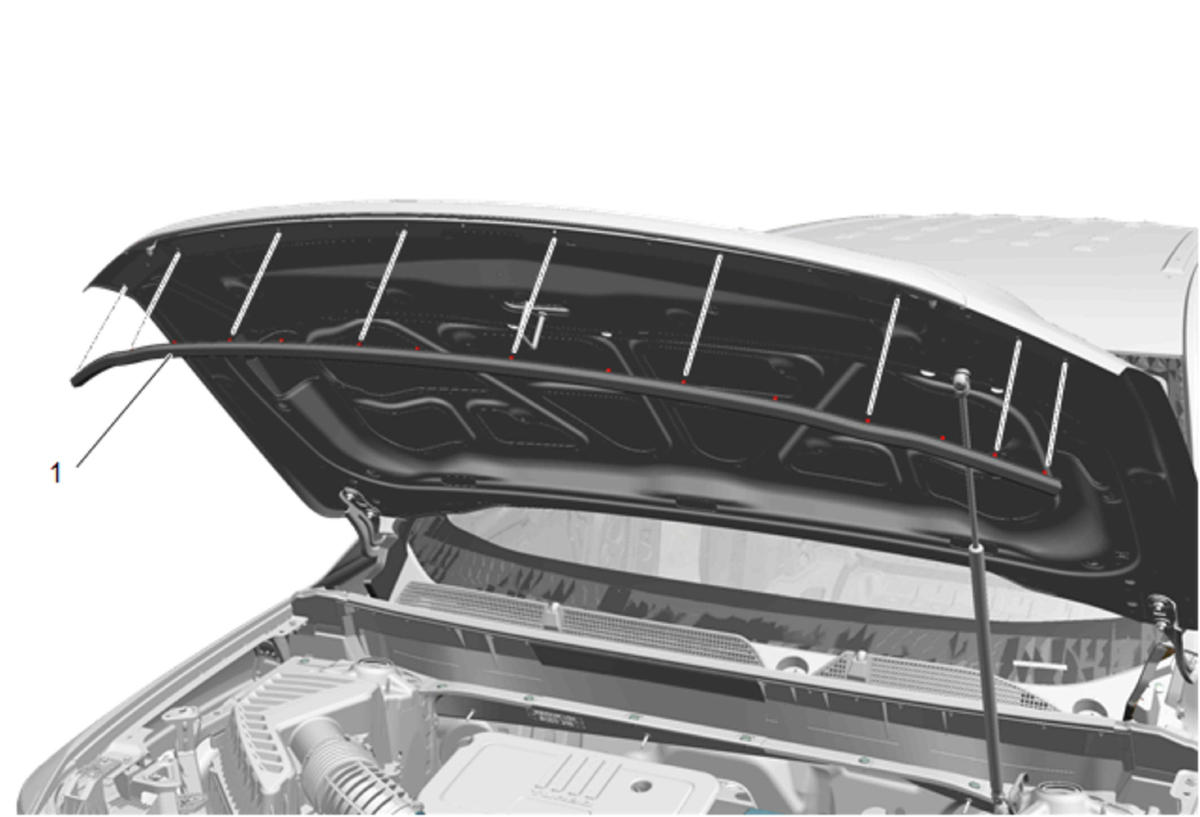

Callout
Component Name
1
Hood Front Edge Weatherstrip
Procedure
Using a trim type tool, release the integral retainers from the hood.
