Windshield Wiper Transmission Replacement

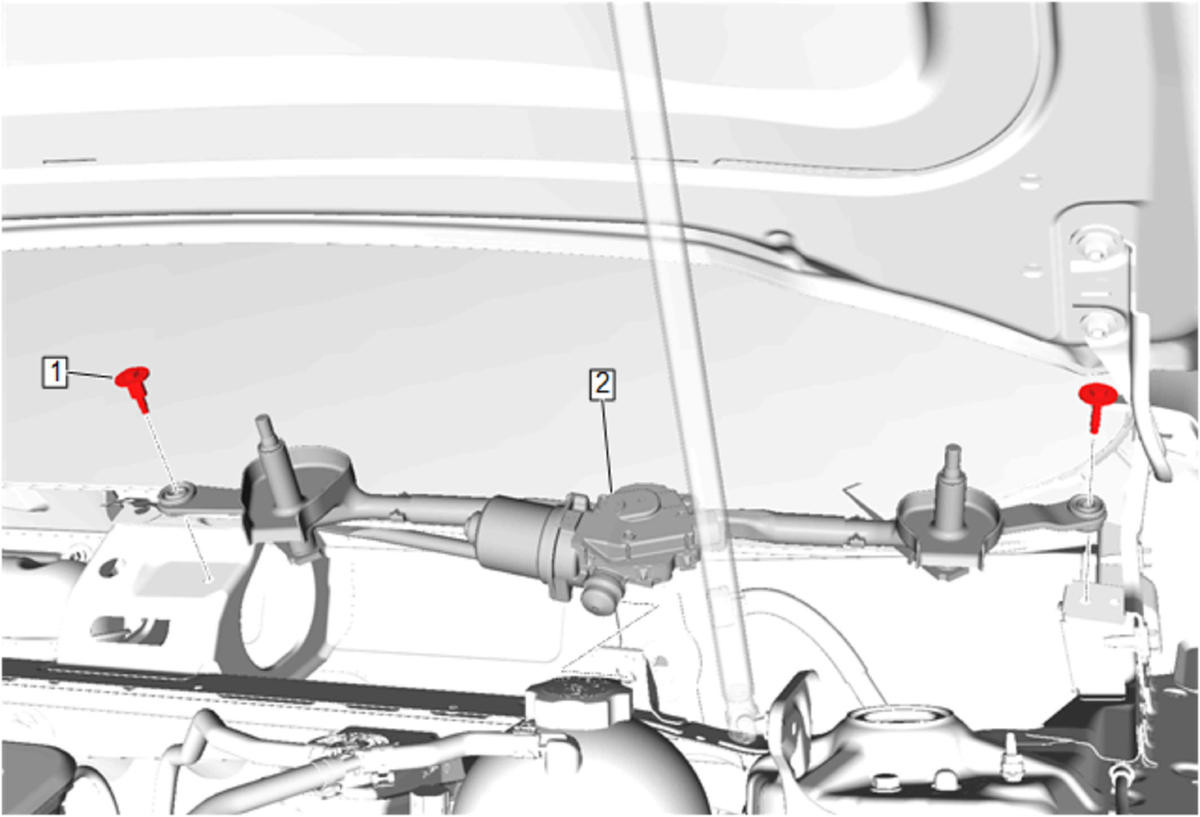

GM5355904Courtesy of GENERAL MOTORS COMPANY
Callout Component Name
Preliminary Procedures
  1. Windshield Wiper System Module Shield Replacement
  2. Disconnect the electrical connector.
1 Windshield Wiper Transmission Bolt [2x]
CAUTION:

Refer to Fastener Caution .


Tighten
8 N.m (71 lb in)
2 Windshield Wiper Transmission

Procedure

  1. Slide the windshield wiper transmission inboard to release the grommet from the plenum.
  2. Remove the windshield wiper transmission from the vehicle.
  3. Transfer components as necessary.
