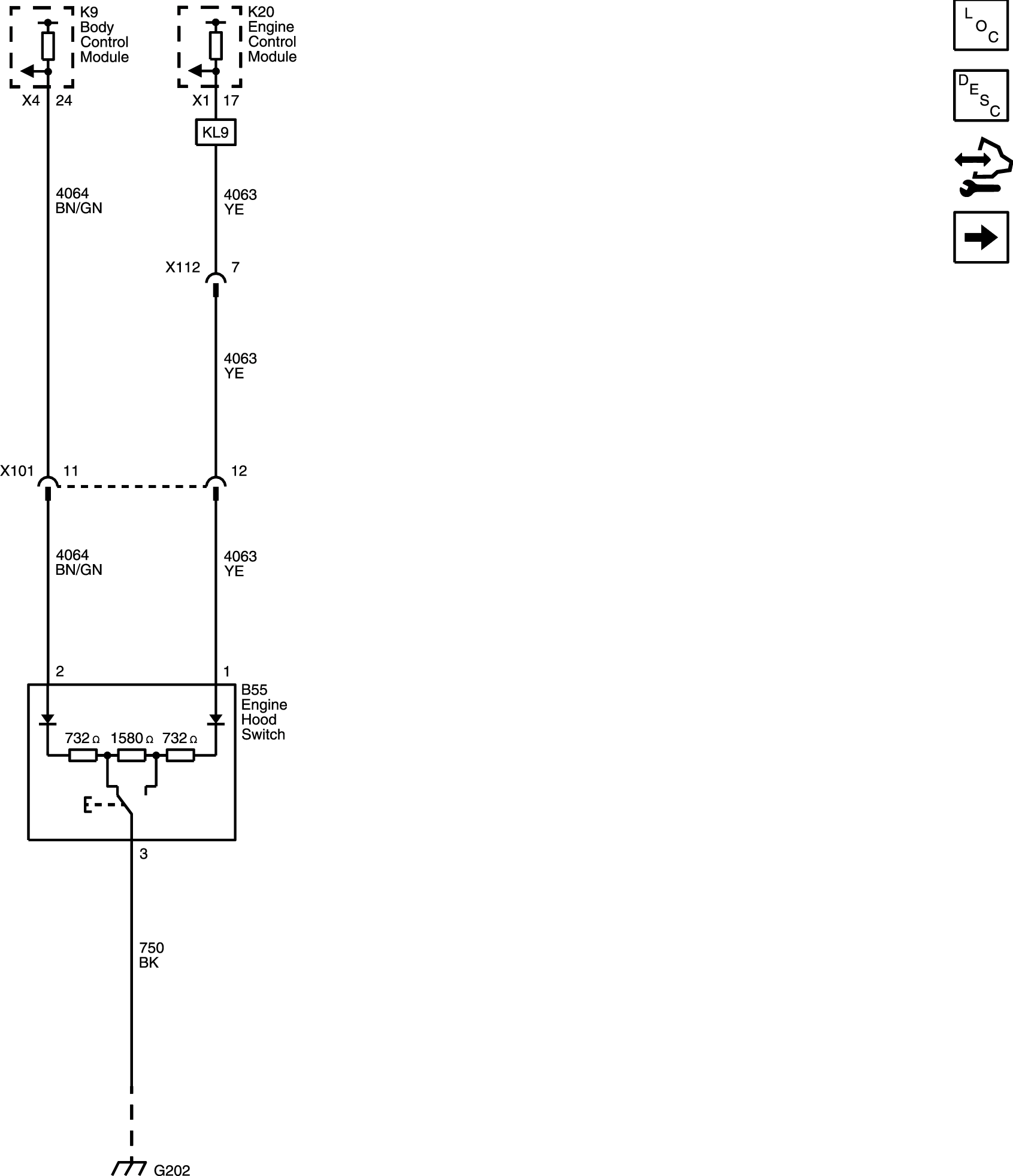

Home >> GMC >> 2020 >> Acadia AT4 >> Repair and Diagnosis >> Accessories & Equipment >> Interior/Exterior Trim >> Bolted Exterior Body Panels And Closures >> Schematic Wiring Diagrams >> Hood Latch Wiring Schematics >> Engine Hood Switch (GMC)
