Installation Procedure

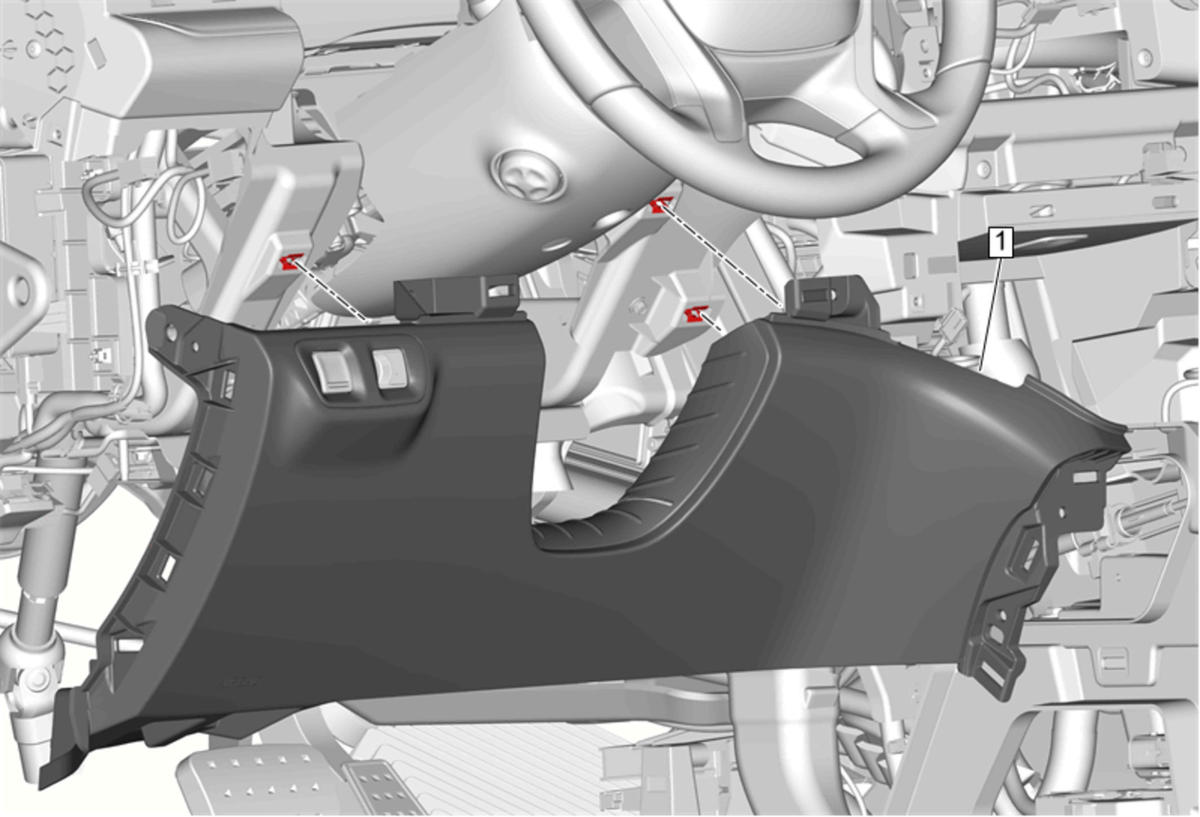

Courtesy of GENERAL MOTORS COMPANY

Instrument Panel Knee Bolster (1) - Install
Connect all electrical connectors.

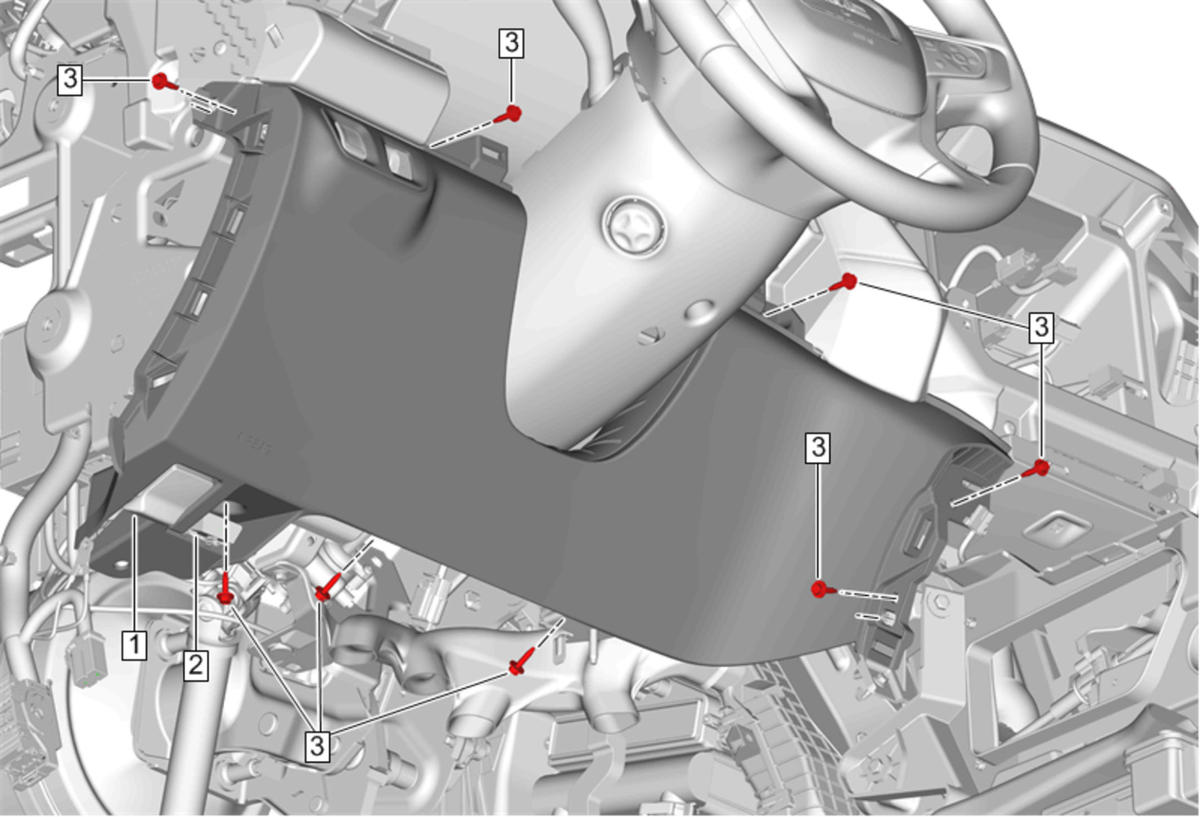

Courtesy of GENERAL MOTORS COMPANY

CAUTION:
Refer to Fastener Caution .

Instrument Panel Knee Bolster Bolt (3) - Install and tighten [8x] 2.5 N.m (22 lb in)
Connect the data link connector. (2)
Hood Primary Latch Release Cable Handle (1) - Install
Courtesy of GENERAL MOTORS COMPANY

Front Floor Console Trim Plate (1) - Install - Front Floor Console Trim Plate Replacement (GMC)
Courtesy of GENERAL MOTORS COMPANY

Instrument Panel Cluster Trim Plate (1) - Install - Instrument Panel Cluster Trim Plate Replacement
Courtesy of GENERAL MOTORS COMPANY

Instrument Panel Outer Trim Cover - Left Side (1) - Install - Instrument Panel Outer Trim Cover Replacement
Courtesy of GENERAL MOTORS COMPANY

Instrument Panel Lower Airbag - Driver Side (2) - Install - Instrument Panel Lower Airbag Replacement - Driver Side
Courtesy of GENERAL MOTORS COMPANY

Instrument Panel Insulator-Left Side (2) - Install - Instrument Panel Insulator Replacement - Left Side (Left Hand Drive) , or Instrument Panel Insulator Replacement - Left Side (Right Hand Drive)
Courtesy of GENERAL MOTORS COMPANY

Front Side Door Sill Garnish Molding (1) - Install - Front Side Door Sill Garnish Molding Replacement
