Installation Procedure

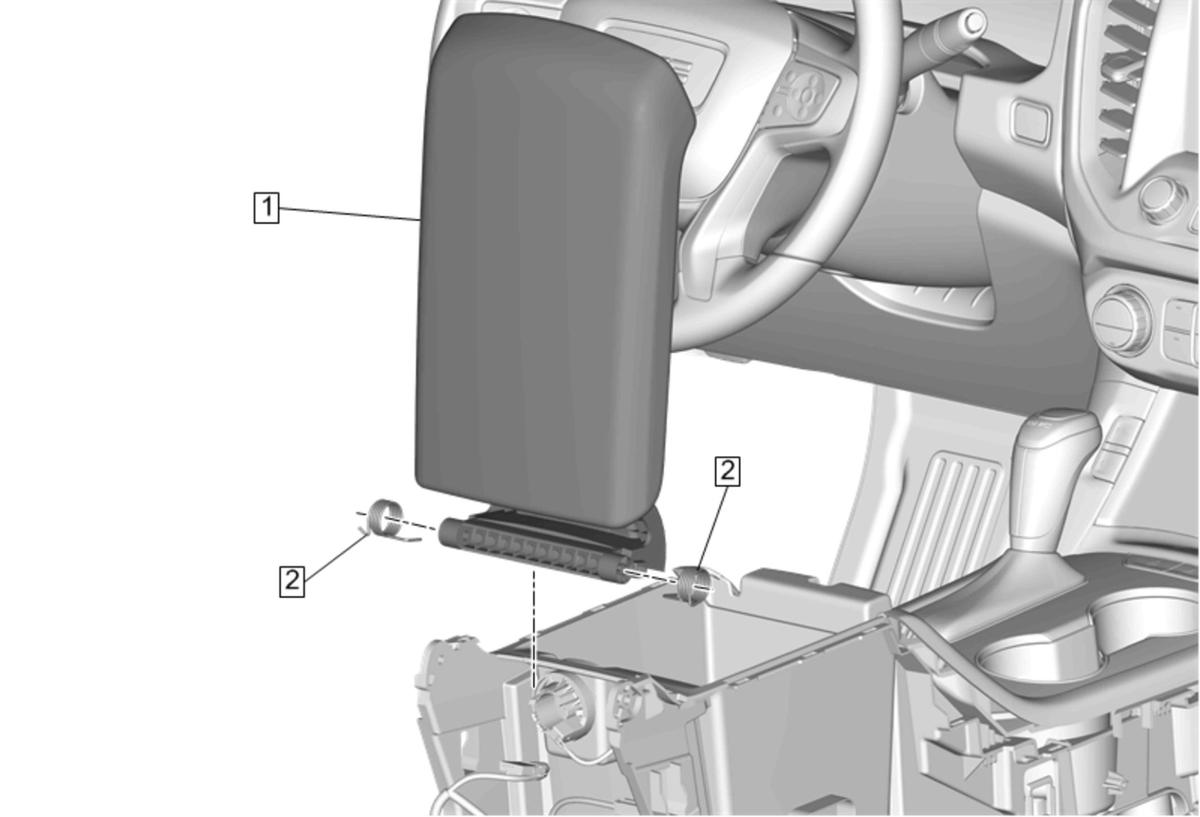

Install the front floor console armrest (1) to the front floor console assembly.
Attach the ends of the front floor console armrest hinge spring (1) to the front floor console assembly.
Install the front floor console compartment door hinge pin (2) to the armrest assembly.
- Install the front floor console compartment door hinge pin retainer (1) to the hinge pin.
- Front Floor Rear Console Side Trim Panel - Right Side - Install Front Floor Rear Console Side Trim Panel Replacement - Right Side (GMC)
- Front Floor Rear Console Side Trim Panel - Left Side - Install Front Floor Rear Console Side Trim Panel Replacement - Left Side (GMC)
