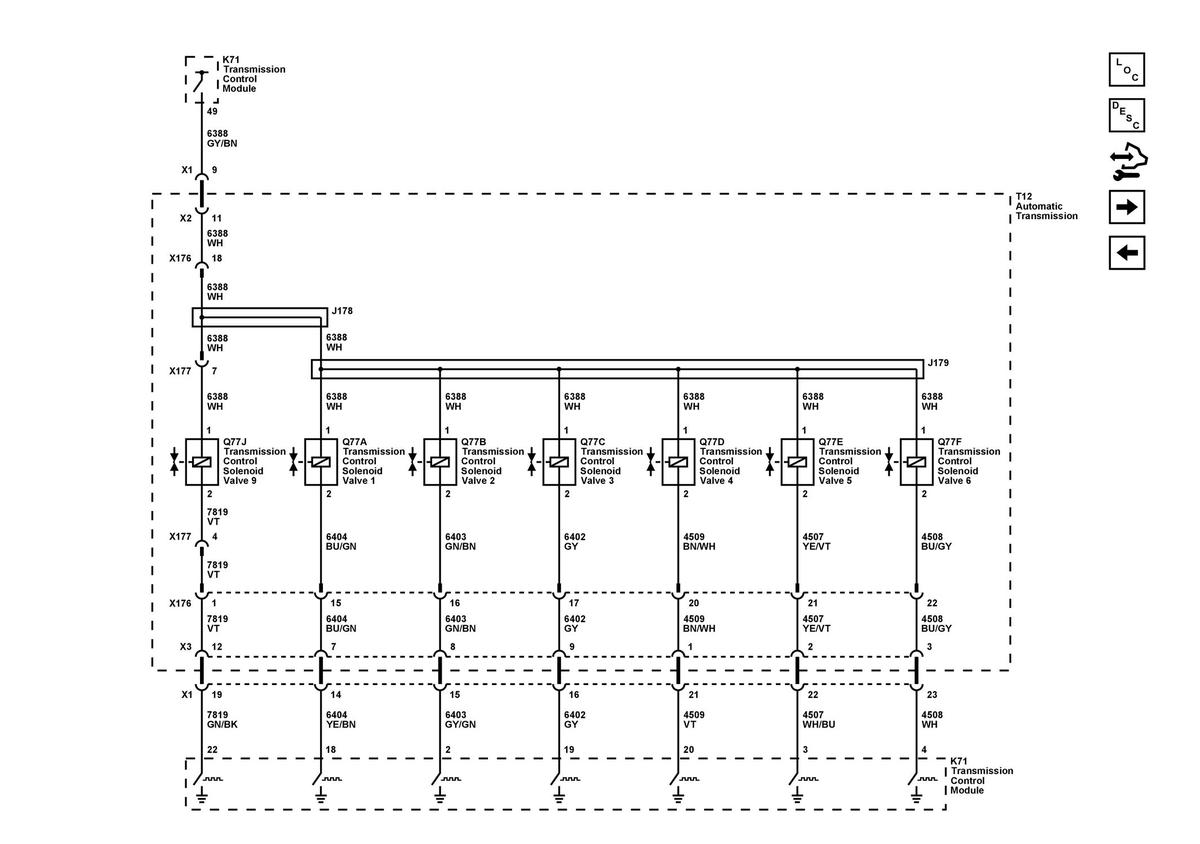

Pressure and Shift Controls (1 of 2)

WARNING: This page is about a different car, the 2022 Cadillac CT5. However, it is still accessible from the selected car via links, so may be relevant.
GM5755895Courtesy of GENERAL MOTORS COMPANY
