E83 Rear Fascia Auxiliary Signal Lamp - Backup/Fog (T79)
WARNING: This page is about a different car, the 2022 Cadillac CT5. However, it is still accessible from the selected car via links, so may be relevant.
 Courtesy of GENERAL MOTORS COMPANY
|

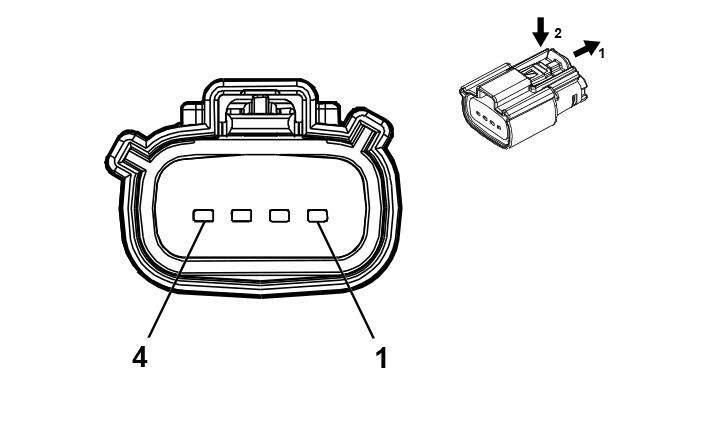

Connector Part Information
- Harness Type:Rear Object Alarm Sensor Wiring Harness
- OEM Connector: 35075014
- Service Connector: Service by Harness - See Part Catalog
- Description: 4-Way F 1.5 MX Series, Sealed (L-GY)
|
Terminal Part Information
| Terminal Type ID |
Terminated Lead |
Diagnostic Test Probe |
Terminal Removal Tool |
| I |
Not required |
J-35616-2A (GY) |
No Tool Required |
| Pin |
Size |
Color |
Circuit |
Function |
Terminal Type ID |
Option |
| 1 |
0.5 |
BK |
2550 |
Ground |
I |
- |
| 2 |
0.5 |
GN/WH |
24 |
Backup Lamp Control |
I |
- |
| 3 |
0.5 |
YE/GY |
122 |
Rear Fog Lamp Control |
I |
- |
| 4 |
- |
- |
- |
Not Occupied |
- |
- |
