E4A Cornering Lamp - Left (TR7)
WARNING: This page is about a different car, the 2022 Cadillac CT5. However, it is still accessible from the selected car via links, so may be relevant.
 Courtesy of GENERAL MOTORS COMPANY
|

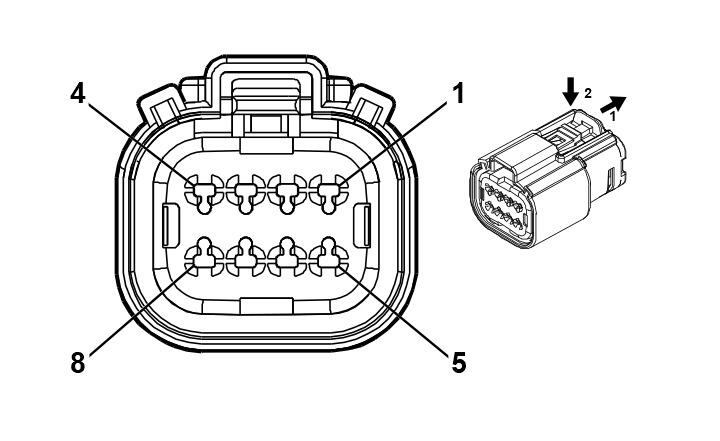

Connector Part Information
- Harness Type:Front Fascia Wiring Harness
- OEM Connector: 33472-4882
- Service Connector: Service by Harness - See Part Catalog
- Description: 8-Way F 1.5 MX Series, Sealed (GY)
|
Terminal Part Information
| Terminal Type ID |
Terminated Lead |
Diagnostic Test Probe |
Terminal Removal Tool |
| I |
Not required |
J-35616-14 (GN) |
No Tool Required |
| Pin |
Size |
Color |
Circuit |
Function |
Terminal Type ID |
Option |
| 1 |
0.5 |
BK |
550 |
Ground |
I |
- |
| 2 |
0.5 |
BU |
2745 |
Left Front Lamp Assembly 2 Supply Voltage |
I |
- |
| 3 |
0.5 |
BU/WH |
1314 |
Left Front Turn Signal Lamp Control |
I |
- |
| 4 |
0.35 |
VT/BK |
6568 |
Front Turn Signal Lamp Feedback Signal |
I |
- |
| 5 |
0.5 |
YE/GY |
57 |
Left Cornering Lamp Control |
I |
- |
| 6 |
0.5 |
WH/YE |
1204 |
Left Park Lamp Control 2 |
I |
- |
| 7 |
0.35 |
YE |
2744 |
Left Daytime Running Lamp Synchronization Signal |
I |
- |
| 8 |
- |
- |
- |
Not Occupied |
- |
- |
